SiC Schottky Barrier Diodes (SBDs) | Status : Pre-Release

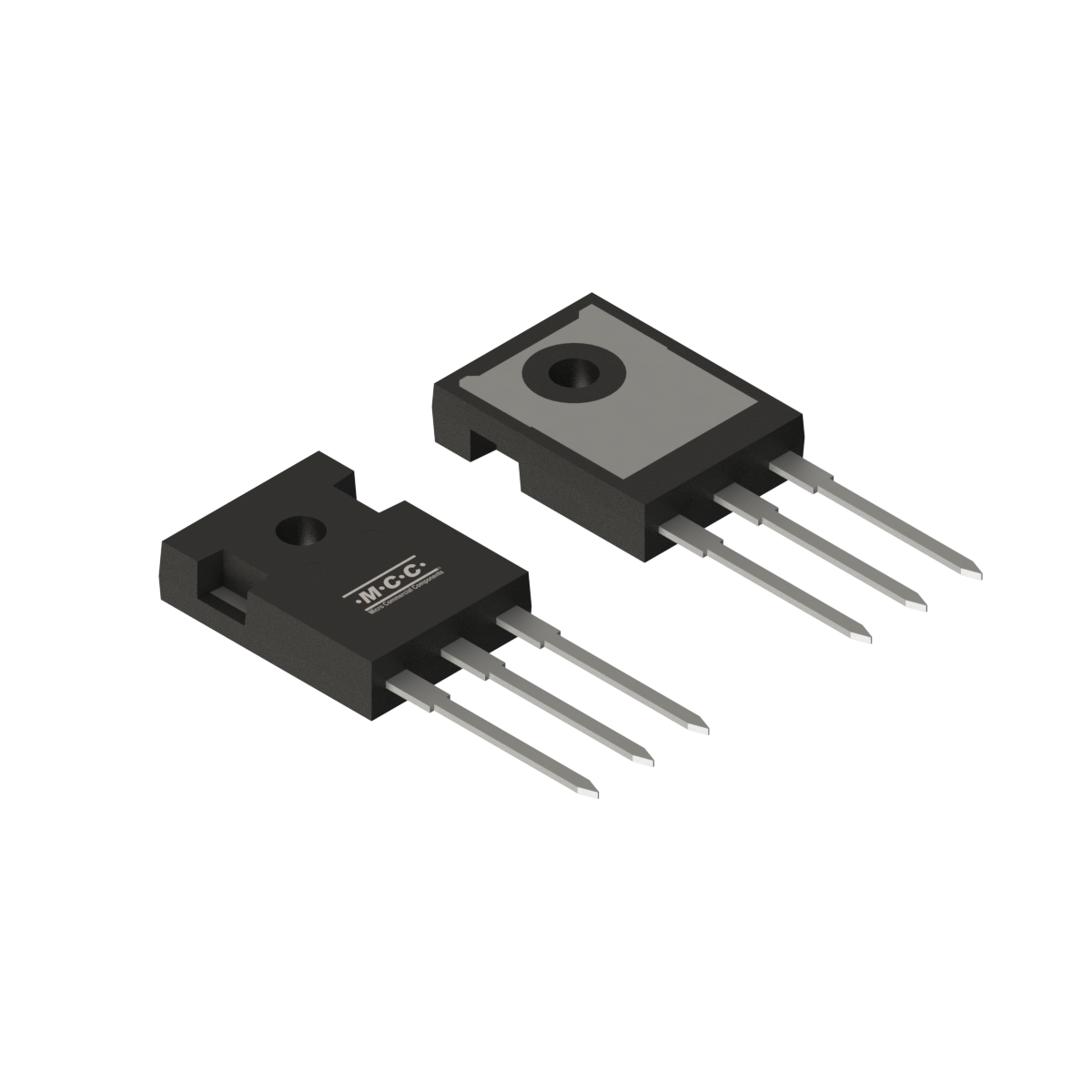

SICW60120DG5M

Package Type:TO-247AB
Packing Info:Bulk:30pcs/Tube,360pcs/Box,1800pcs/Carton; Bulk:30pcs/Tube,360pcs/Box,1800pcs/Carton;
Category:SiC Schottky Barrier Diodes (SBDs)

Part Number	Number of Functions	Average Forward Current I_F(AV)(A)	Peak Repetitive Reverse Voltage V_RRM (V)	Forward Voltage V_F (V) [max]@I_F(A)	Junction Temperature Tj [max] (°C)	At Rated Forward Current I_F (A)	Reverse Voltage Leakage Current I_R (uA) [max] @ V_R	Maximum DC Blocking Voltage V_R (V)	Peak Forward Surge Current I_FSM (A)
SICW60120DG5M	Dual	60	1200	1.6	175	30	25	1200	320

Part Number SICW60120DG5M

Number of Functions Dual

Average
Forward
Current
I_F(AV)(A) 60

Peak Repetitive
Reverse
Voltage
V_RRM (V) 1200

Forward
Voltage
V_F
(V) [max]@I_F(A) 1.6

Junction
Temperature
Tj [max] (°C) 175

At Rated Forward
Current
I_F (A) 30

Reverse Voltage
Leakage
Current
I_R (uA) [max] @ V_R 25

Maximum DC
Blocking
Voltage
V_R (V) 1200

Peak Forward
Surge
Current
I_FSM (A) 320

Part Number	Package Type	Packing Specification	Component Weight (g)	Marking Code
SICW60120DG5M	TO-247AB	TO-247AB	5.6000	SICW60120DG5M

Reliability Report	Soldering Profile	Environmental Compliance
Download	Download	Download

MSL	MTBF	FIT
N/A	0.00	0.0

Part Number	Category	Package Type	Status	Datasheet
SICU02120B	SIC SBD	DPAK	Active	Datasheet
SICPT20120Y	SIC SBD	TO-247AD	Active	Datasheet
SICPT40120Y	SIC SBD	TO-247AD	Active	Datasheet
SICB20120Y	SIC SBD	D2-PAK	Active	Datasheet
