SiC Schottky Barrier Diodes (SBDs) | Status : Preferred
Automotive

SICU10120XG4JQ

Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions Average
Forward
Current
IF(AV)(A)		 Peak Repetitive
Reverse
Voltage
VRRM (V)		 Forward
Voltage
VF
(V) [max]@IF(A)		 Junction
Temperature
Tj [max] (°C)		 At Rated Forward
Current
IF (A)		 Reverse Voltage
Leakage
Current
IR (uA)  [max] @ VR		 Maximum DC
Blocking
Voltage
VR (V)		 Peak Forward
Surge
Current
IFSM (A)
SICU10120XG4JQ Single 10 1200 1.55 175 10 20 1200 85
Part Number SICU10120XG4JQ Number of Functions Single Average
Forward
Current
IF(AV)(A)  10 		Peak Repetitive
Reverse
Voltage
VRRM (V)  1200 		Forward
Voltage
VF
(V) [max]@IF(A)  1.55 		Junction
Temperature
Tj [max] (°C)  175 		At Rated Forward
Current
IF (A)  10 		Reverse Voltage
Leakage
Current
IR (uA)  [max] @ VR  20 		Maximum DC
Blocking
Voltage
VR (V)  1200 		Peak Forward
Surge
Current
IFSM (A)  85

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info

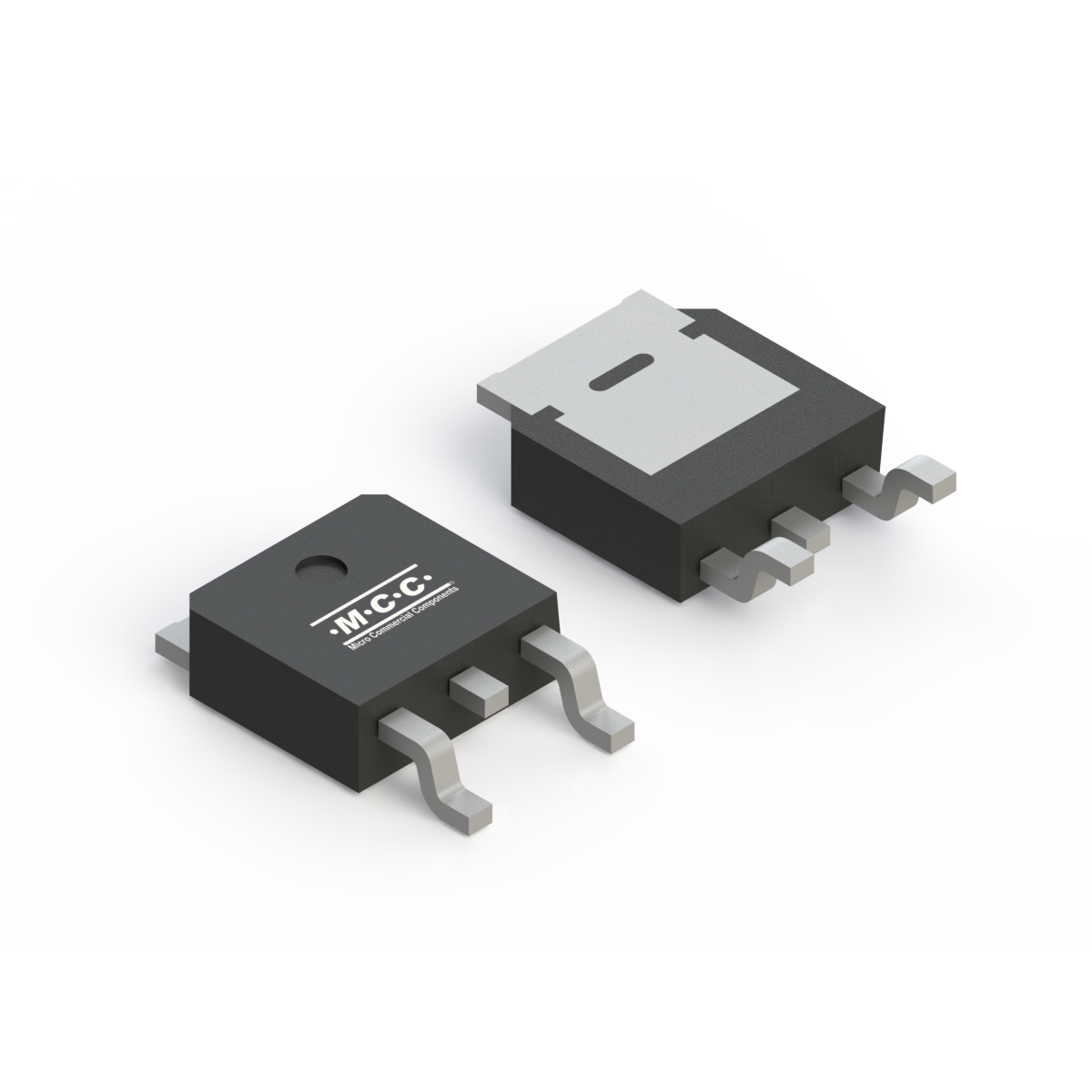

SICU10120XG4JQ DPAK DPAK 0.3252 SICU10120XG4J Tape&Reel:2.5Kpcs/Reel;

Environmental Information link icon

Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Environmental Compliance Download
MSL Halogen Free MTBF FIT
1 Halogen Free 0.00 0.0
