SiC Schottky Barrier Diodes (SBDs) | Status : Pre-Release

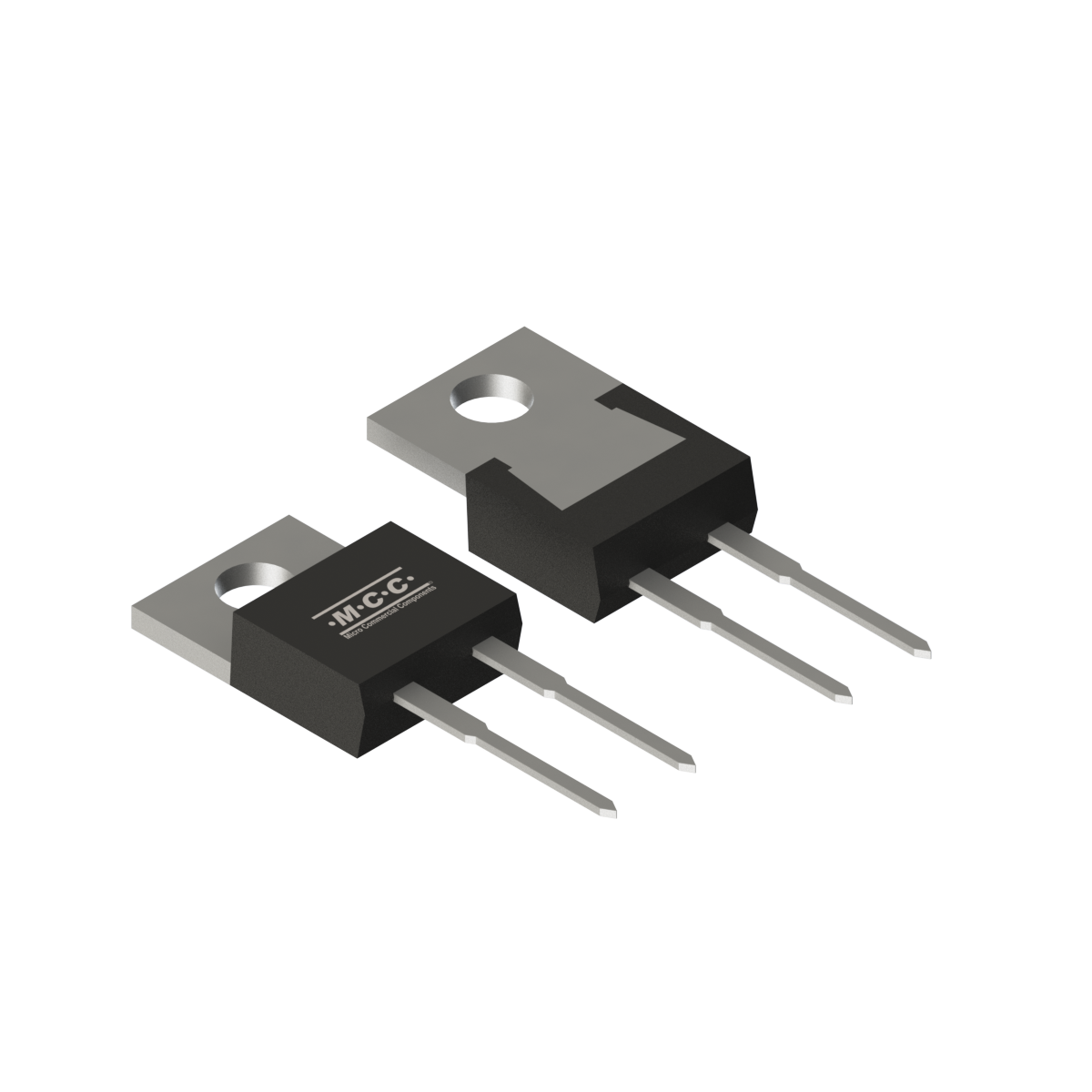

SIC10170G5M

Package Type:TO-220AC
Packing Info:Bulk: 50pcs/Tube, 1Kpcs/Box, 5Kpcs/Carton; Bulk: 50pcs/Tube, 1Kpcs/Box, 5Kpcs/Carton;
Category:SiC Schottky Barrier Diodes (SBDs)

Part Number	Number of Functions	Average Forward Current I_F(AV)(A)	Peak Repetitive Reverse Voltage V_RRM (V)	Forward Voltage V_F (V) [max]@I_F(A)	Junction Temperature Tj [max] (°C)	At Rated Forward Current I_F (A)	Reverse Voltage Leakage Current I_R (uA) [max] @ V_R	Maximum DC Blocking Voltage V_R (V)	Peak Forward Surge Current I_FSM (A)
SIC10170G5M	Single	10	1700	1.6	175	10	25	1700	160

Part Number SIC10170G5M

Number of Functions Single

Average
Forward
Current
I_F(AV)(A) 10

Peak Repetitive
Reverse
Voltage
V_RRM (V) 1700

Forward
Voltage
V_F
(V) [max]@I_F(A) 1.6

Junction
Temperature
Tj [max] (°C) 175

At Rated Forward
Current
I_F (A) 10

Reverse Voltage
Leakage
Current
I_R (uA) [max] @ V_R 25

Maximum DC
Blocking
Voltage
V_R (V) 1700

Peak Forward
Surge
Current
I_FSM (A) 160

Part Number	Package Type	Packing Specification	Component Weight (g)	Marking Code
SIC10170G5M	TO-220AC	TO-220AC	2.2400	SIC10170G5M

Reliability Report	Material Composition Data Sheet	Soldering Profile	Environmental Compliance
Download	Download	Download	Download

Tin Whisker Test Report	MSL	MTBF	FIT
	N/A	0.00	0.0

Part Number	Category	Package Type	Status	Datasheet
SICF1060P	SIC SBD	ITO-220AC	Active	Datasheet
SICB1060P	SIC SBD	D2-PAK	Active	Datasheet
SICU1060P	SIC SBD	DPAK	Active	Datasheet
SIC1060PL8	SIC SBD	DFN8080A	Active	Datasheet
