SiC Schottky Barrier Diodes (SBDs) | Status : Active

SICWT5065G5M

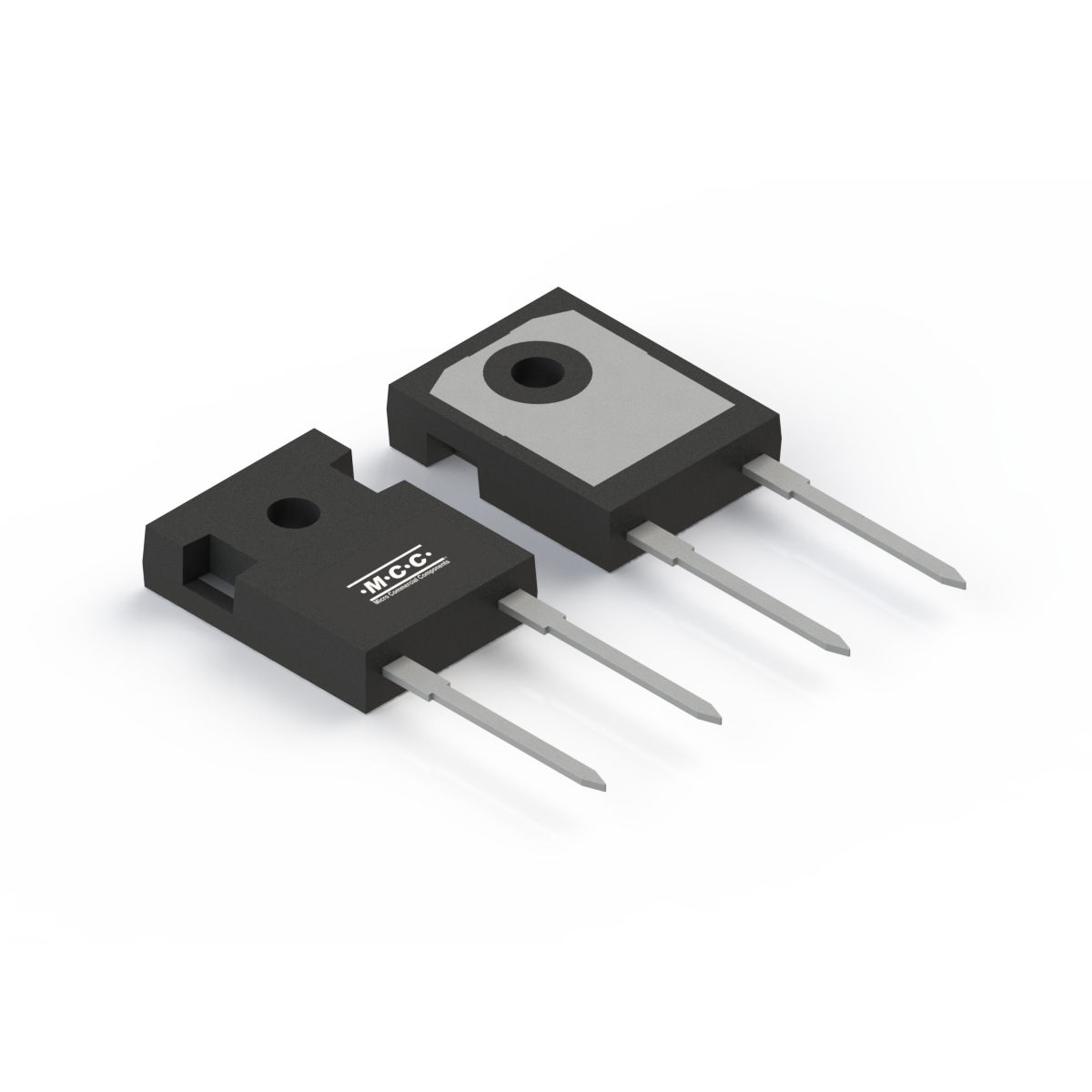

  • Package Type:TO-247AD
  • Packing Info:Bulk:30pcs/Tube,360pcs/Box,1800pcs/Carton; Bulk:30pcs/Tube,360pcs/Box,1800pcs/Carton;
  • Category:SiC Schottky Barrier Diodes (SBDs)
  • MPN:SICWT5065G5M-BP
Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions Average
Forward
Current
IF(AV)(A)		 Peak Repetitive
Reverse
Voltage
VRRM (V)		 Forward
Voltage
VF
(V) [max]@IF(A)		 Junction
Temperature
Tj [max] (°C)		 At Rated Forward
Current
IF (A)		 Reverse Voltage
Leakage
Current
IR (uA)  [max] @ VR		 Maximum DC
Blocking
Voltage
VR (V)		 Peak Forward
Surge
Current
IFSM (A)
SICWT5065G5M Single 50 650 1.7 175 50 25 650 380
Part Number SICWT5065G5M Number of Functions Single Average
Forward
Current
IF(AV)(A)  50 		Peak Repetitive
Reverse
Voltage
VRRM (V)  650 		Forward
Voltage
VF
(V) [max]@IF(A)  1.7 		Junction
Temperature
Tj [max] (°C)  175 		At Rated Forward
Current
IF (A)  50 		Reverse Voltage
Leakage
Current
IR (uA)  [max] @ VR  25 		Maximum DC
Blocking
Voltage
VR (V)  650 		Peak Forward
Surge
Current
IFSM (A)  380

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code
SICWT5065G5M TO-247AD TO-247AD 4.0500 SICWT5065G5M

Environmental Information link icon

Reliability Report Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report MSL MTBF FIT
Tin Whisker Test Report N/A 0.00 0.0
