SiC Schottky Barrier Diodes (SBDs) | Status : Active

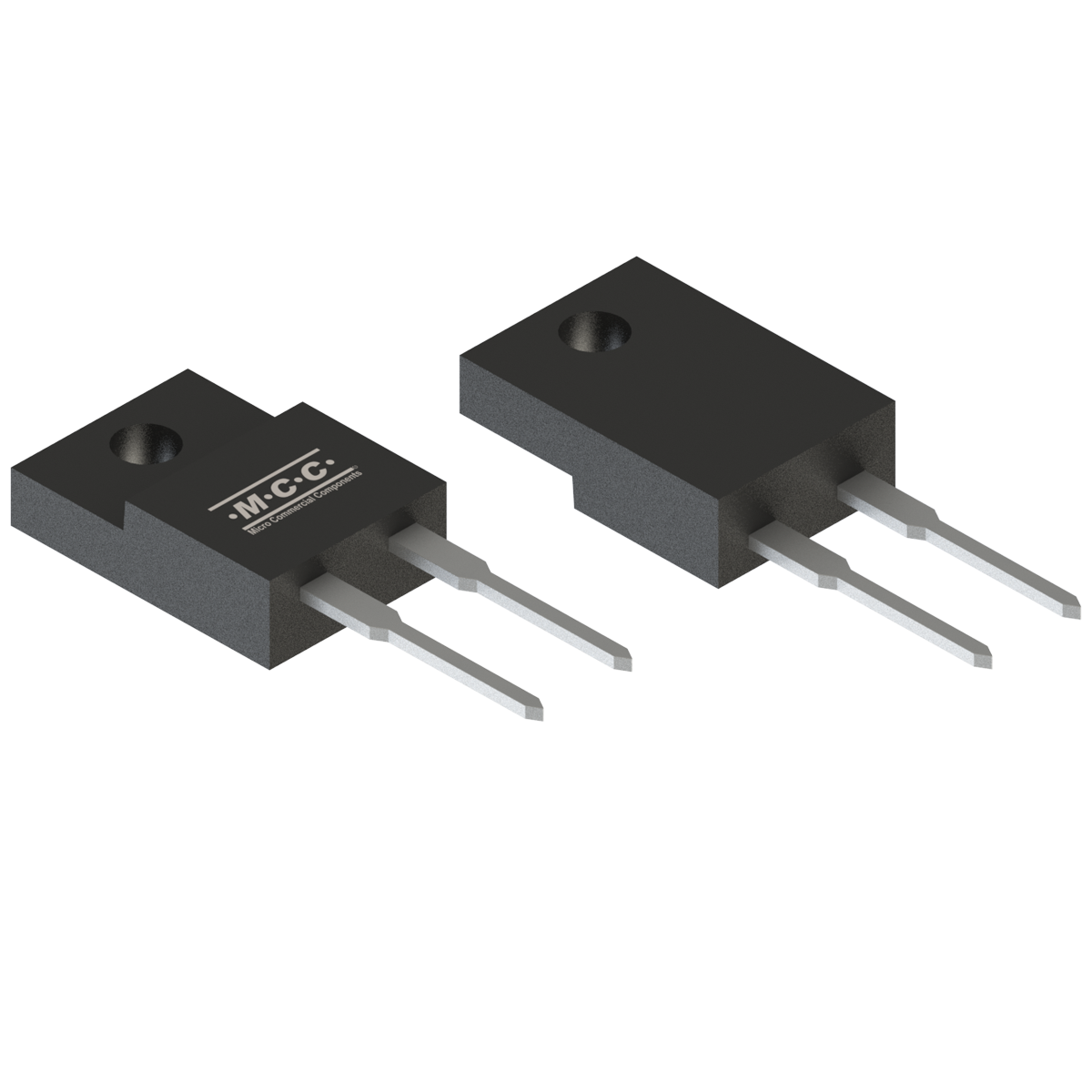

SICF0860P

Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions Average
Forward
Current
IF(AV)(A)		 Peak Repetitive
Reverse
Voltage
VRRM (V)		 Forward
Voltage
VF
(V) [max]@IF(A)		 Junction
Temperature
Tj [max] (°C)		 At Rated Forward
Current
IF (A)		 Reverse Voltage
Leakage
Current
IR (uA)  [max] @ VR		 Maximum DC
Blocking
Voltage
VR (V)		 Peak Forward
Surge
Current
IFSM (A)
SICF0860P Single 8 650 1.55 175 8 25 650 70
Part Number SICF0860P Number of Functions Single Average
Forward
Current
IF(AV)(A)  8 		Peak Repetitive
Reverse
Voltage
VRRM (V)  650 		Forward
Voltage
VF
(V) [max]@IF(A)  1.55 		Junction
Temperature
Tj [max] (°C)  175 		At Rated Forward
Current
IF (A)  8 		Reverse Voltage
Leakage
Current
IR (uA)  [max] @ VR  25 		Maximum DC
Blocking
Voltage
VR (V)  650 		Peak Forward
Surge
Current
IFSM (A)  70

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code
SICF0860P ITO-220AC ITO-220AC 1.3930 SICF0860P

Environmental Information link icon

Reliability Report Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report MTBF FIT
Tin Whisker Test Report 21885.51 5.2

ECN/PCN

ECN/PCN No# Title PDF Issued Date
012923-1 Additional new wafer source PDF 01/29/2023
080622-1 ITO-220 Series Package Pin Dimension Change PDF 08/06/2022
