SiC Schottky Barrier Diodes (SBDs) | Status :
Active

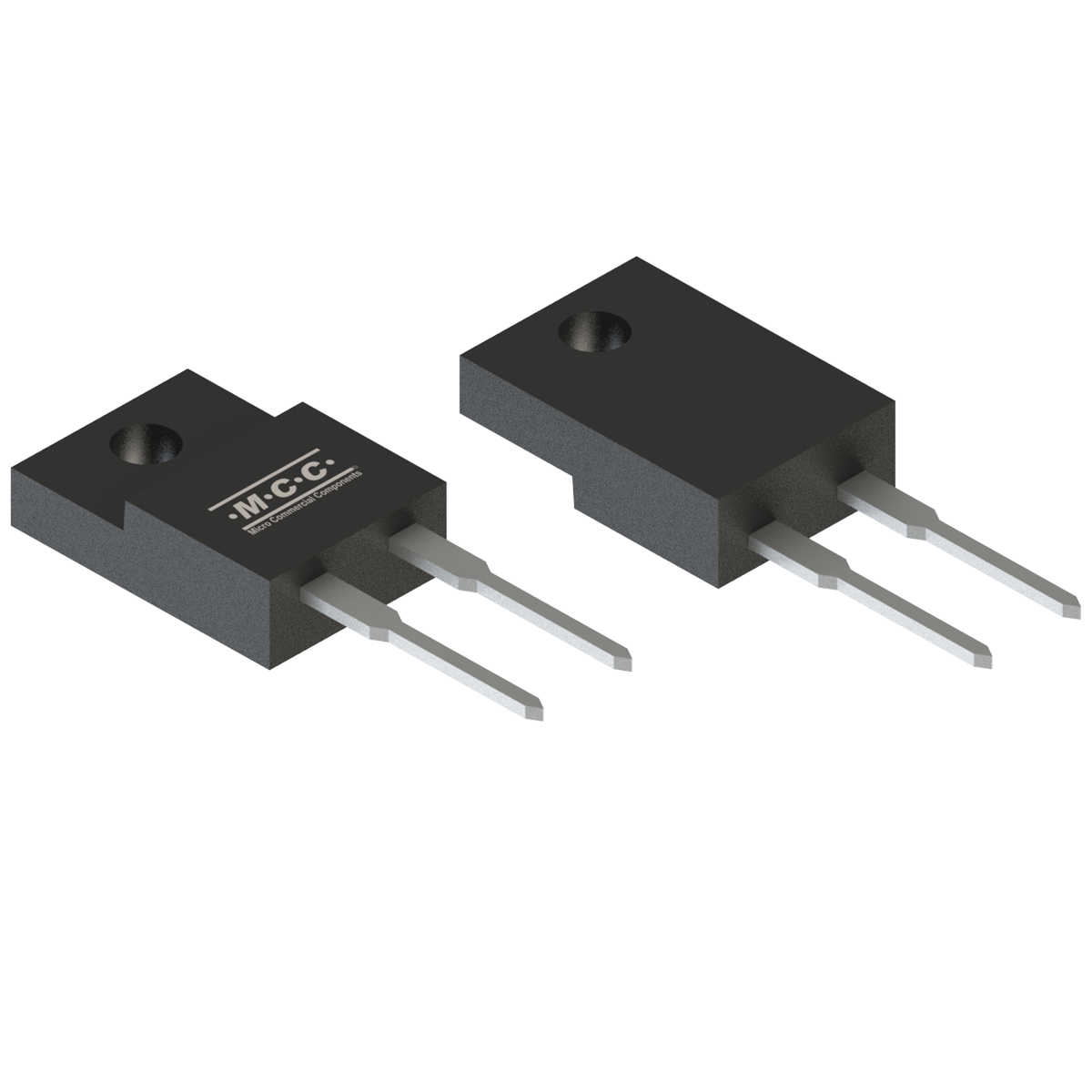

SICF0465Y
- Package Type:ITO-220AC
- Packing Info:Bulk: 50pcs/Tube, 1Kpcs/Box, 5Kpcs/Carton; Bulk: 50pcs/Tube, 1Kpcs/Box, 5Kpcs/Carton;
- Category:SiC Schottky Barrier Diodes (SBDs)
- MPN:SICF0465Y-BP
Product Detail
| Part Number | Number of Functions | Average Forward Current IF(AV)(A) |
Peak Repetitive Reverse Voltage VRRM (V) |
Forward Voltage VF (V) [max]@IF(A) |
Junction Temperature Tj [max] (°C) |
At Rated Forward Current IF (A) |
Reverse Voltage Leakage Current IR (uA) [max] @ VR |
Maximum DC Blocking Voltage VR (V) |
Peak Forward Surge Current IFSM (A) |
|---|---|---|---|---|---|---|---|---|---|
| SICF0465Y | Single | 4 | 650 | 1.65 | 175 | 4 | 20 | 650 | 28 |
| Part Number SICF0465Y | Number of Functions Single |
Average Forward Current IF(AV)(A) 4 |
Peak Repetitive Reverse Voltage VRRM (V) 650 |
Forward Voltage VF (V) [max]@IF(A) 1.65 |
Junction Temperature Tj [max] (°C) 175 |
At Rated Forward Current IF (A) 4 |
Reverse Voltage Leakage Current IR (uA) [max] @ VR 20 |
Maximum DC Blocking Voltage VR (V) 650 |
Peak Forward Surge Current IFSM (A) 28 |
Packing Information
Environmental Information
Download
| Tin Whisker Test Report | MSL | MTBF | FIT |
|---|---|---|---|
|
N/A | 0.00 | 0.0 |
Datasheet
