TVS | Status : Preferred
Automotive

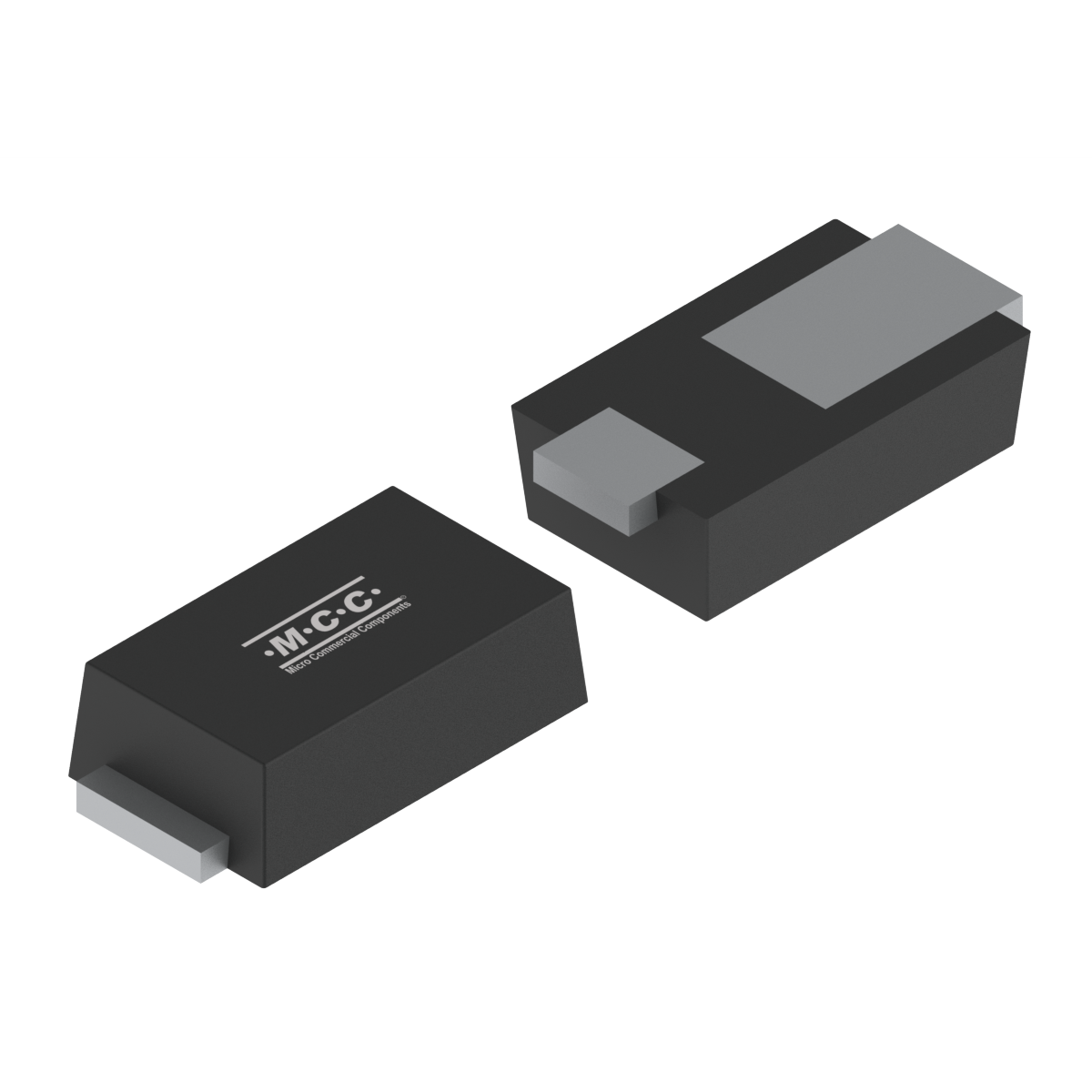

SMHE60AHE3

  • Package Type:SOD-323HE-B
  • Packing Info:Tape&Reel:2.5Kpcs/Reel;
  • Category:TVS
  • MPN:SMHE60AHE3-TP
Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Configuration Peak Pulse
Power
Dissipation
PPPM (W)		 Reverse
Standoff
Voltage
VRWM(V)		 Reverse
Leakage
IR(uA)		 Max.
Clamping
Voltage
VC (V)		 Peak Pulse
Current
IPP(A) 		Breakdown
Voltage
Min VBR(V)		 Breakdown
Voltage
Max VBR(V)		 Junction
Temperature
Tj [max] (°C)
SMHE60AHE3 Unidirectional 150 60 1 96.8 1.54 66.7 73.7 150
Part Number SMHE60AHE3 Configuration Unidirectional Peak Pulse
Power
Dissipation
PPPM (W)  150 		Reverse
Standoff
Voltage
VRWM(V)  60 		Reverse
Leakage
IR(uA)  1 		Max.
Clamping
Voltage
VC (V)  96.8 		Peak Pulse
Current
IPP(A)  1.54 		Breakdown
Voltage
Min VBR(V)  66.7 		Breakdown
Voltage
Max VBR(V)  73.7 		Junction
Temperature
Tj [max] (°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
SMHE60AHE3 SOD-323HE-B SOD-323HE-B 0.0040 DM Tape&Reel:2.5Kpcs/Reel;

Environmental Information link icon

Reliability Report Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Environmental Compliance Download
MSL Halogen Free MTBF FIT
1 Halogen Free 0.00 0.0

ECN/PCN

ECN/PCN No# Title PDF Issued Date
112025-1 Additional Wafer Fabrication Line PDF 11/20/2025
