TVS | Status : Active

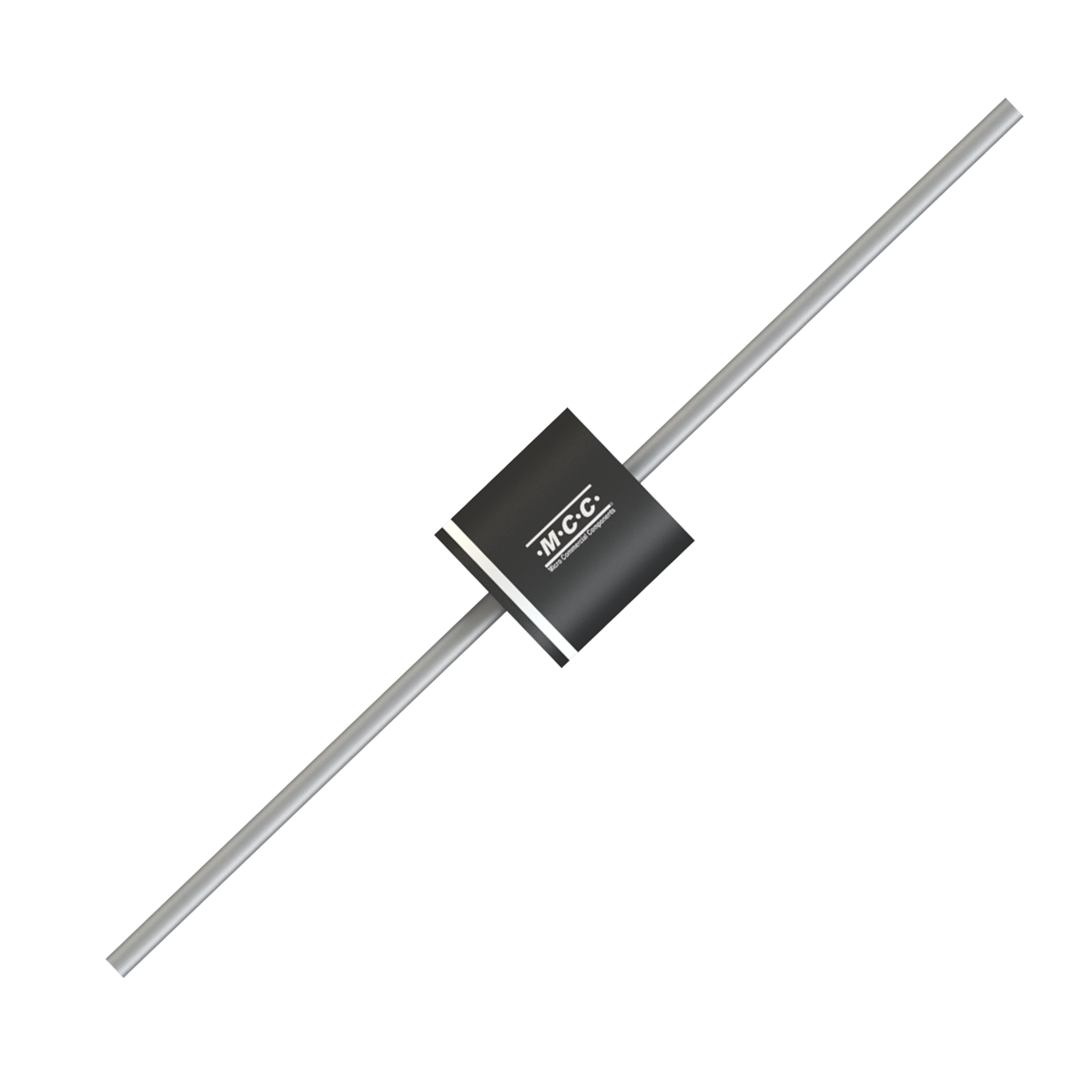

5KP75CA

  • Package Type:R-6
  • Packing Info:Tape&Reel : 500Pcs/Reel; Bulk: 200Pcs/Box; Ammo Packing: 450Pcs/AmmoBox;
  • Category:TVS
  • MPN:5KP75CA-TP
Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Configuration Peak Pulse
Power
Dissipation
PPPM (W)		 Reverse
Standoff
Voltage
VRWM(V)		 Reverse
Leakage
IR(uA)		 Max.
Clamping
Voltage
VC (V)		 Peak Pulse
Current
IPP(A) 		Breakdown
Voltage
Min VBR(V)		 Breakdown
Voltage
Max VBR(V)		 Junction
Temperature
Tj [max] (°C)
5KP75CA Bidirectional 5000 75 10 121 41 83.3 92.1 175
Part Number 5KP75CA Configuration Bidirectional Peak Pulse
Power
Dissipation
PPPM (W)  5000 		Reverse
Standoff
Voltage
VRWM(V)  75 		Reverse
Leakage
IR(uA)  10 		Max.
Clamping
Voltage
VC (V)  121 		Peak Pulse
Current
IPP(A)  41 		Breakdown
Voltage
Min VBR(V)  83.3 		Breakdown
Voltage
Max VBR(V)  92.1 		Junction
Temperature
Tj [max] (°C)  175

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
5KP75CA R-6 R-6 2.0670 5KP75CA Tape&Reel : 500Pcs/Reel;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report MTBF FIT
Tin Whisker Test Report 72951.72 1.6

ECN/PCN

ECN/PCN No# Title PDF Issued Date
070103 Pb(Lead) Free Plating Conversion PDF 07/01/2003
