TVS | Status : Active

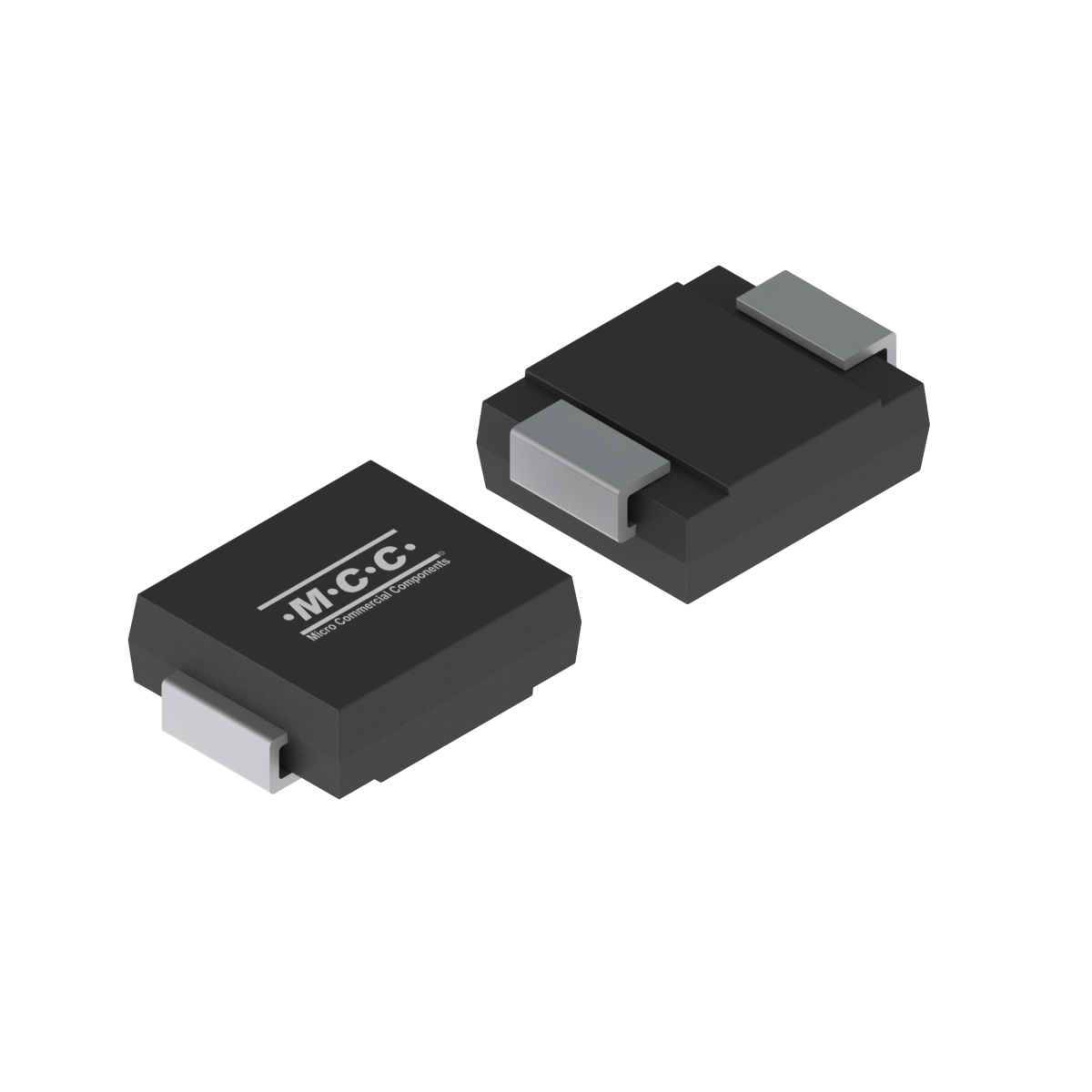

5.0SMLJ70A

  • Package Type:SMC
  • Packing Info:Tape&Reel: 3Kpcs/Reel;
  • Category:TVS
  • MPN:5.0SMLJ70A-TP
Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Configuration Peak Pulse
Power
Dissipation
PPPM (W)		 Reverse
Standoff
Voltage
VRWM(V)		 Reverse
Leakage
IR(uA)		 Max.
Clamping
Voltage
VC (V)		 Peak Pulse
Current
IPP(A) 		Breakdown
Voltage
Min VBR(V)		 Breakdown
Voltage
Max VBR(V)		 Junction
Temperature
Tj [max] (°C)
5.0SMLJ70A Unidirectional 5000 70 5 113 44.3 77.8 86 175
Part Number 5.0SMLJ70A Configuration Unidirectional Peak Pulse
Power
Dissipation
PPPM (W)  5000 		Reverse
Standoff
Voltage
VRWM(V)  70 		Reverse
Leakage
IR(uA)  5 		Max.
Clamping
Voltage
VC (V)  113 		Peak Pulse
Current
IPP(A)  44.3 		Breakdown
Voltage
Min VBR(V)  77.8 		Breakdown
Voltage
Max VBR(V)  86 		Junction
Temperature
Tj [max] (°C)  175

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
5.0SMLJ70A SMC SMC 0.2570 5PGP Tape&Reel: 3Kpcs/Reel;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report Halogen Free MTBF FIT
Tin Whisker Test Report Halogen Free 51066.20 2.2

ECN/PCN

ECN/PCN No# Title PDF Issued Date
070103 Pb(Lead) Free Plating Conversion PDF 07/01/2003
