ESD Protection Devices | Status :
Active

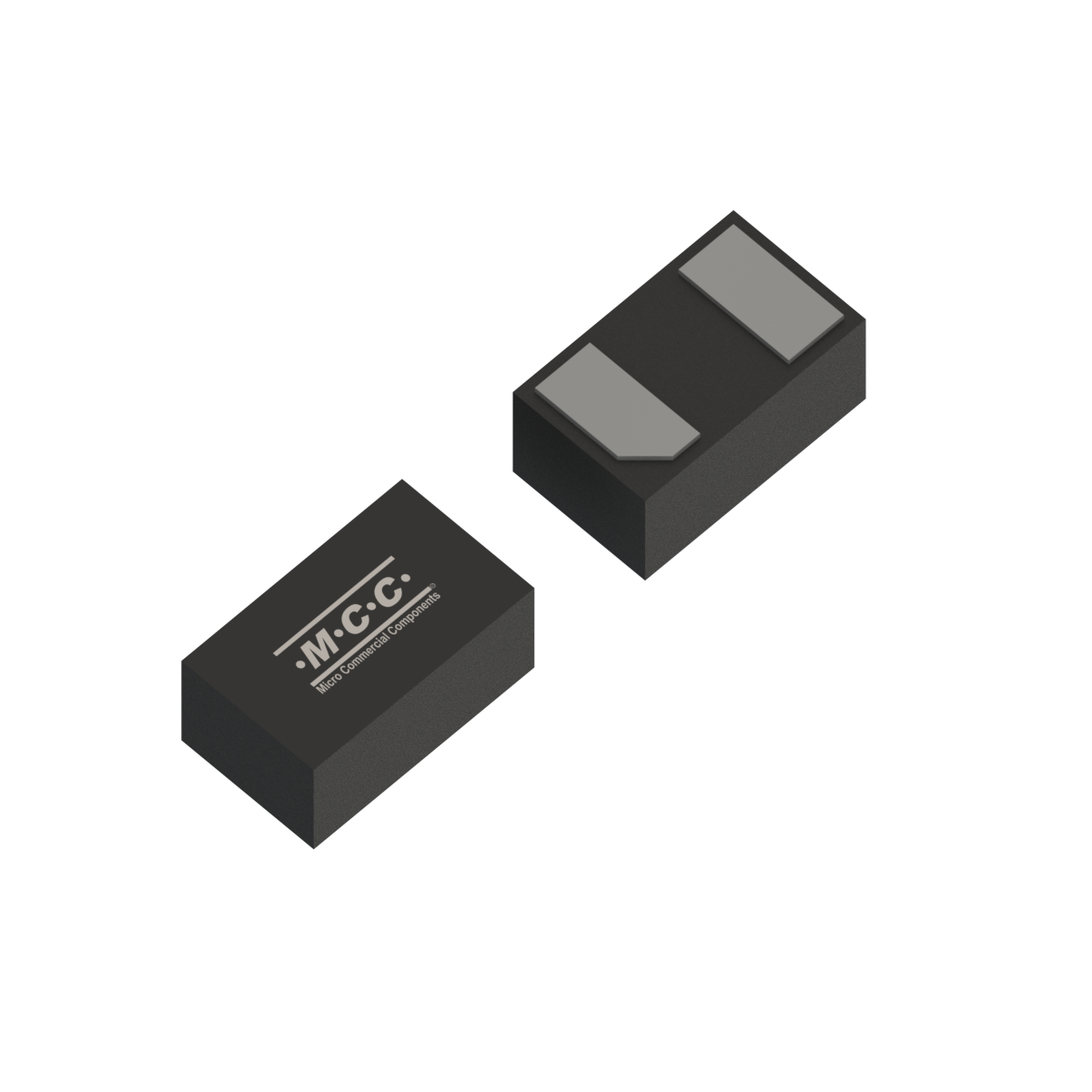

ESD6V3LA
- Package Type:DFN1006-2
- Packing Info:Tape&Reel:10Kpcs/Reel
- Category:ESD Protection Devices
- MPN:ESD6V3LA-TP
Product Detail
| Part Number | Number of Functions | Configuration | Reverse Standoff Voltage VRWM(V) |
Peak Pulse Current IPP(A) |
Max. Clamping Voltage VC (V) |
Junction Capacitance CJ(pF) |
Peak Pluse Power Dissipation PPPK (W) |
Maximum Reverse Leakage IR (uA) |
Breakdown Voltage Min VBR(V) |
Breakdown Voltage Max VBR(V) |
Junction Temperature Tj [max] (°C) |
VESDIEC61000-4-2 Air/Contact (kV) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ESD6V3LA | 1 | Unidirectional | 6.3 | 30 | 15 | 220 | 450 | 1 | 6.6 | 9 | 125 | ±30 |
| Part Number ESD6V3LA | Number of Functions 1 | Configuration Unidirectional |
Reverse Standoff Voltage VRWM(V) 6.3 |
Peak Pulse Current IPP(A) 30 |
Max. Clamping Voltage VC (V) 15 |
Junction Capacitance CJ(pF) 220 |
Peak Pluse Power Dissipation PPPK (W) 450 |
Maximum Reverse Leakage IR (uA) 1 |
Breakdown Voltage Min VBR(V) 6.6 |
Breakdown Voltage Max VBR(V) 9 |
Junction Temperature Tj [max] (°C) 125 |
VESDIEC61000-4-2 Air/Contact (kV) ±30 |
Packing Information
Environmental Information
Download
| MSL | Halogen Free | MTBF | FIT |
|---|---|---|---|
| 1 |
|
0.00 | 0.0 |
