ESD Protection Devices | Status :
Active
Automotive
ESD27VLBHE3

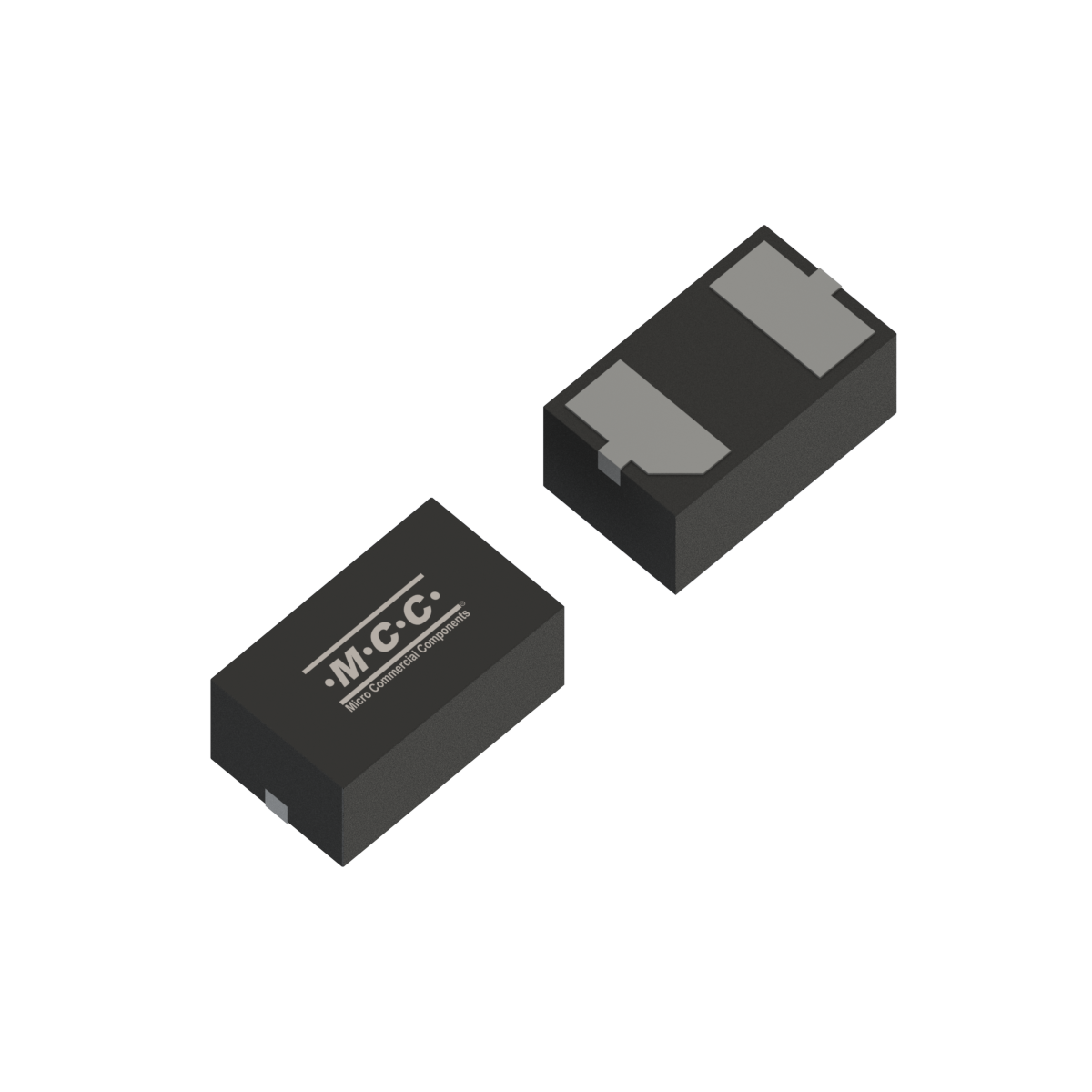

- Package Type:DFN1006-2L
- Packing Info:Tape&Reel: 10Kpcs/Reel;
- Category:ESD Protection Devices
- MPN:ESD27VLBHE3-TP
Product Detail
| Part Number | Number of Functions | Configuration | Reverse Standoff Voltage VRWM(V) |
Peak Pulse Current IPP(A) |
Max. Clamping Voltage VC (V) |
Junction Capacitance CJ(pF) |
Peak Pluse Power Dissipation PPPK (W) |
Maximum Reverse Leakage IR (uA) |
Breakdown Voltage Min VBR(V) |
Breakdown Voltage Max VBR(V) |
Junction Temperature Tj [max] (°C) |
VESDIEC61000-4-2 Air/Contact (kV) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ESD27VLBHE3 | 1 | Bidirectional | 27 | 2.5 | 75 | 6.5 | 180 | 0.5 | 31 | 38 | 150 | ±30 |
| Part Number ESD27VLBHE3 | Number of Functions 1 | Configuration Bidirectional |
Reverse Standoff Voltage VRWM(V) 27 |
Peak Pulse Current IPP(A) 2.5 |
Max. Clamping Voltage VC (V) 75 |
Junction Capacitance CJ(pF) 6.5 |
Peak Pluse Power Dissipation PPPK (W) 180 |
Maximum Reverse Leakage IR (uA) 0.5 |
Breakdown Voltage Min VBR(V) 31 |
Breakdown Voltage Max VBR(V) 38 |
Junction Temperature Tj [max] (°C) 150 |
VESDIEC61000-4-2 Air/Contact (kV) ±30 |
Packing Information
| Part Number | Package Type | Packing Specification | Component Weight (g) | Marking Code | Packing Info |
|---|---|---|---|---|---|
| ESD27VLBHE3 | DFN1006-2L | DFN1006-2L | 0.0010 | 27B | Tape&Reel: 10Kpcs/Reel; |
Environmental Information
Download
| Halogen Free | MTBF | FIT |
|---|---|---|
|
0.00 | 0.0 |
