ESD Protection Devices | Status : Active
Automotive

ESD24VD5HE3

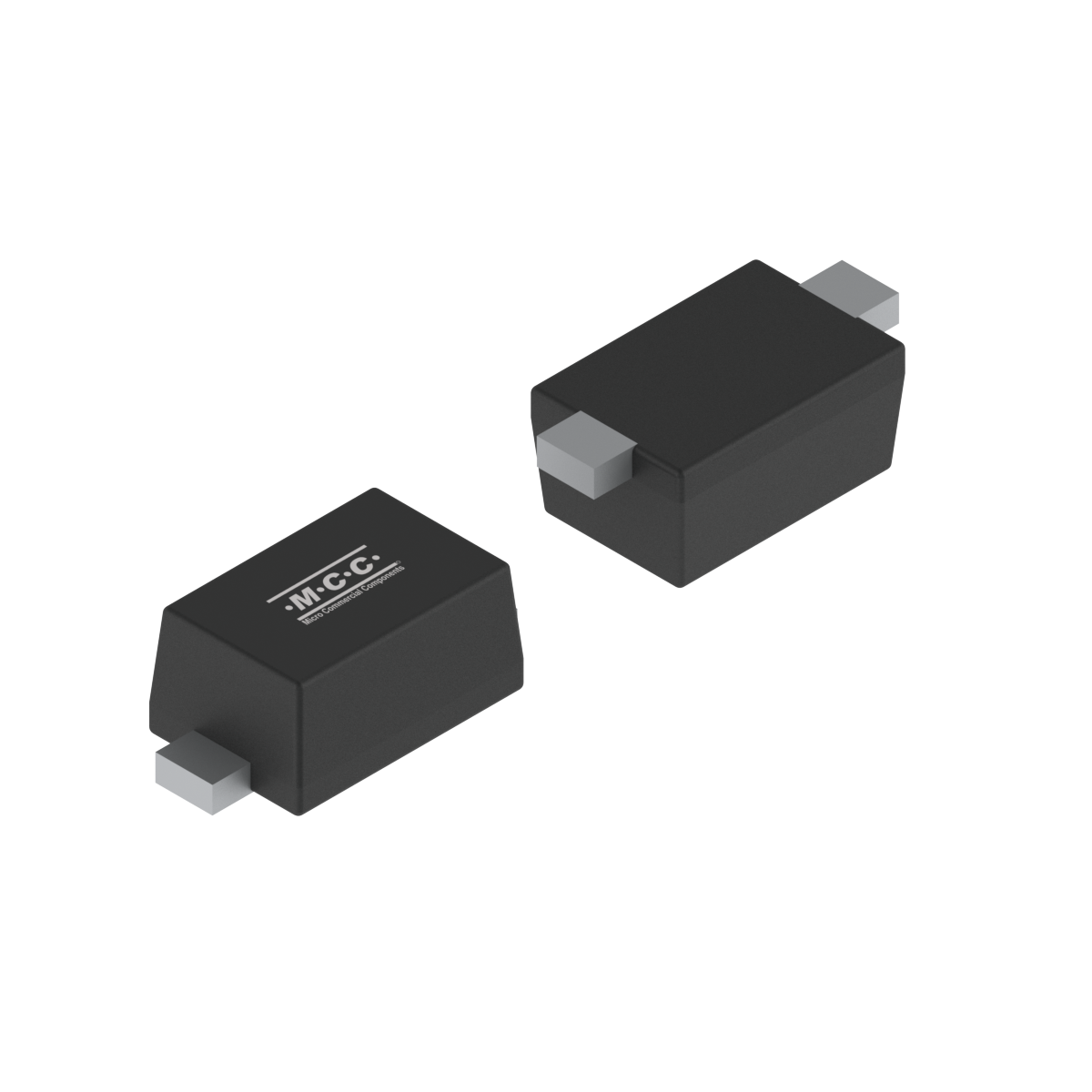

  • Package Type:SOD-523
  • Packing Info:Tape : 8K/Reel, 320K/Ctn;
  • Category:ESD Protection Devices
  • MPN:ESD24VD5HE3-TP
Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions Configuration Reverse
Standoff
Voltage
VRWM(V)		 Peak Pulse
Current
IPP(A)		 Max.
Clamping
Voltage
VC (V)		 Junction
Capacitance
CJ(pF)		 Peak Pluse
Power
Dissipation
PPPK (W)		 Maximum
Reverse
Leakage
IR (uA)		 Breakdown
Voltage
Min VBR(V)		 Breakdown
Voltage
Max VBR(V)		 Junction
Temperature
Tj [max] (°C)		 VESDIEC61000-4-2
Air/Contact
(kV)
ESD24VD5HE3 1 Unidirectional 24 7 44 50 300 1 26.7 150 ±30
Part Number ESD24VD5HE3 Number of Functions 1 Configuration Unidirectional Reverse
Standoff
Voltage
VRWM(V)  24 		Peak Pulse
Current
IPP(A)  7 		Max.
Clamping
Voltage
VC (V)  44 		Junction
Capacitance
CJ(pF)  50 		Peak Pluse
Power
Dissipation
PPPK (W)  300 		Maximum
Reverse
Leakage
IR (uA)  1 		Breakdown
Voltage
Min VBR(V)  26.7 		Breakdown
Voltage
Max VBR(V)   		Junction
Temperature
Tj [max] (°C)  150 		VESDIEC61000-4-2
Air/Contact
(kV)  ±30

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
ESD24VD5HE3 SOD-523 SOD-523 0.0013 24. Tape : 8K/Reel, 320K/Ctn;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Halogen Free MTBF FIT
Halogen Free 9992.46 11.4
