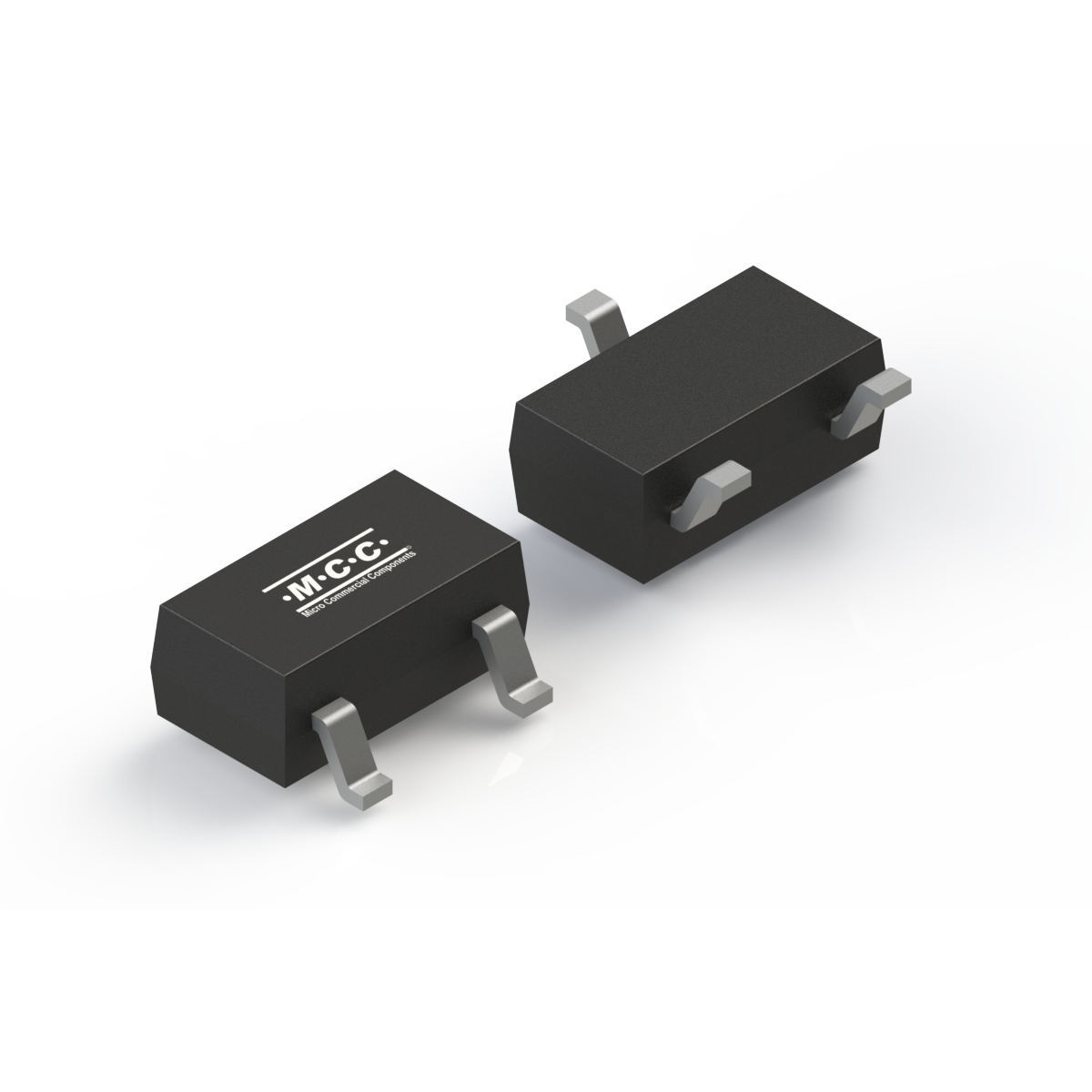

Small Signal MOSFETS | Status : Active

SL100N10L

  • Package Type:SOT-23-3L
  • Packing Info:Tape&Reel:3Kpcs/Reel;
  • Category:Small Signal MOSFETS
  • MPN:SL100N10L-TP
Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions Channel Drain-Source
Voltage
VDS (V)		 Gate-Source
Voltage
VGS (V)		 Drain
Current
ID (A)		 RDS(ON)
Max
@VGS=10V
(Ω)		 RDS(ON)
Max
@VGS=4.5V
(Ω)		 RDS(ON)
Max
@VGS=2.5V
(Ω)		 Gate
Threshold
Voltage
VGS(th) Min
(V)		 Gate
Threshold
Voltage
VGS(th) Max
(V)		 ESD
Diodes		 Junction
Temperature
Tj [max]
(°C)		 Input
Capacitance
Ciss(pF)		 Output
Capacitance
Coss(pF)		 Power
Rating
PD(W)		 Total Gate
Charge
Qg(nC)		 Gate-Drain
Charge
Qgd(nC)
SL100N10L Single N 100 ±20 2 0.1 0.11 1.3 2.3 No 150 903 30 0.92 23.2 6.1
Part Number SL100N10L Number of Functions Single Channel N Drain-Source
Voltage
VDS (V)  100 		Gate-Source
Voltage
VGS (V)  ±20 		Drain
Current
ID (A)  2 		RDS(ON)
Max
@VGS=10V
(Ω)  0.1 		RDS(ON)
Max
@VGS=4.5V
(Ω)  0.11 		RDS(ON)
Max
@VGS=2.5V
(Ω)   		Gate
Threshold
Voltage
VGS(th) Min
(V)  1.3 		Gate
Threshold
Voltage
VGS(th) Max
(V)  2.3 		ESD
Diodes  No 		Junction
Temperature
Tj [max]
(°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
SL100N10L SOT-23-3L SOT-23-3L 0.0080 100AL. Tape&Reel:3Kpcs/Reel;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report MSL Halogen Free MTBF FIT
Tin Whisker Test Report 1 Halogen Free 0.00 0.0
