Small Signal MOSFETS | Status : Preferred

MC3541KL3

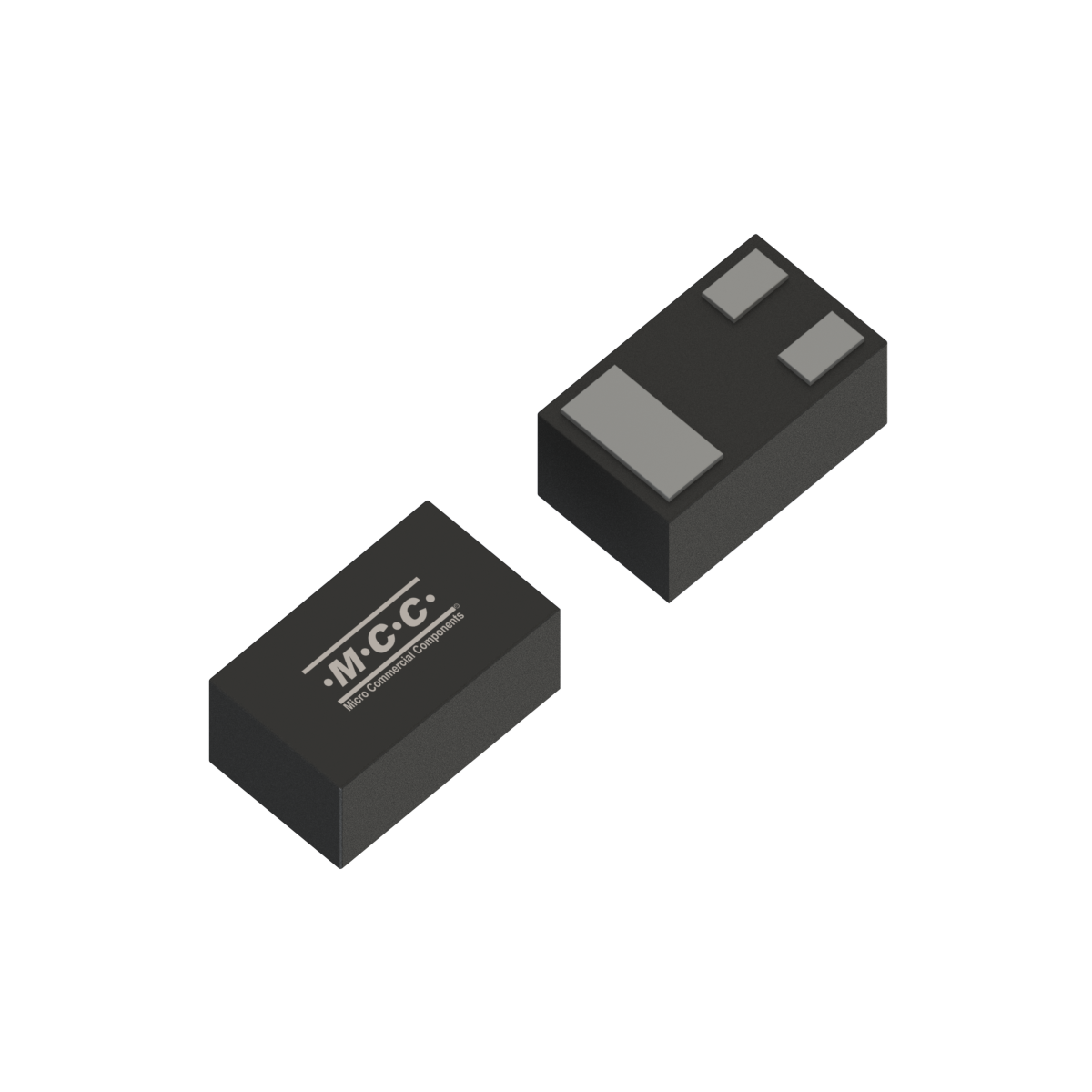

  • Package Type:DFN1006-3
  • Packing Info:Tape&Reel:10Kpcs/Reel;
  • Category:Small Signal MOSFETS
  • MPN:MC3541KL3-TP
Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions Channel Drain-Source
Voltage
VDS (V)		 Gate-Source
Voltage
VGS (V)		 Drain
Current
ID (A)		 RDS(ON)
Max
@VGS=10V
(Ω)		 RDS(ON)
Max
@VGS=4.5V
(Ω)		 RDS(ON)
Max
@VGS=2.5V
(Ω)		 Gate
Threshold
Voltage
VGS(th) Min
(V)		 Gate
Threshold
Voltage
VGS(th) Max
(V)		 ESD
Diodes		 Junction
Temperature
Tj [max]
(°C)		 Input
Capacitance
Ciss(pF)		 Output
Capacitance
Coss(pF)		 Power
Rating
PD(W)		 Total Gate
Charge
Qg(nC)		 Gate-Drain
Charge
Qgd(nC)
MC3541KL3 Single N 30 ±20 0.3 3.5 4 0.8 1.45 Yes 150 16.3 5.5 0.69 0.6 0.1
Part Number MC3541KL3 Number of Functions Single Channel N Drain-Source
Voltage
VDS (V)  30 		Gate-Source
Voltage
VGS (V)  ±20 		Drain
Current
ID (A)  0.3 		RDS(ON)
Max
@VGS=10V
(Ω)  3.5 		RDS(ON)
Max
@VGS=4.5V
(Ω)  4 		RDS(ON)
Max
@VGS=2.5V
(Ω)   		Gate
Threshold
Voltage
VGS(th) Min
(V)  0.8 		Gate
Threshold
Voltage
VGS(th) Max
(V)  1.45 		ESD
Diodes  Yes 		Junction
Temperature
Tj [max]
(°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
MC3541KL3 DFN1006-3 DFN1006-3 0.0008 KN Tape&Reel:10Kpcs/Reel;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
MSL Halogen Free MTBF FIT
1 Halogen Free 0.00 0.0
