Super Fast Recovery Rectifiers | Status : Active

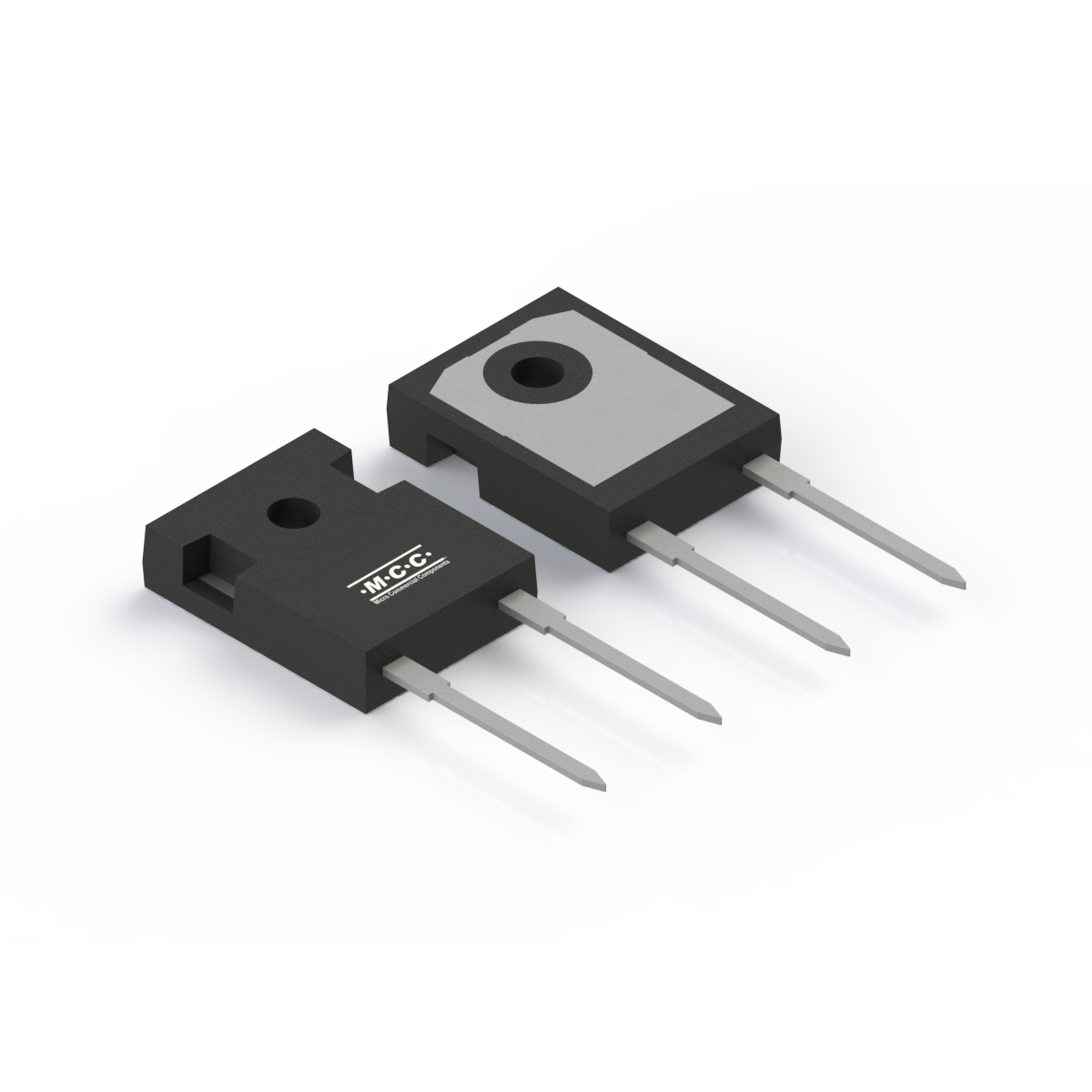

MUR6065BL

  • Package Type:TO-247AD
  • Packing Info:Bulk:30pcs/Tube,360pcs/Box,1.8Kpcs/Carton; Bulk:30pcs/Tube,360pcs/Box,1.8Kpcs/Carton;
  • Category:Super Fast Recovery Rectifiers
  • MPN:MUR6065BL-BP
Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA)  [max] @
VR		 TRR (μs) IFSM (A) IF(A) VR (V) Tj [max]
(°C)
MUR6065BL Single 60 650 2.2 10 0.05 500 60 650 175
Part Number MUR6065BL Number of Functions Single IF(AV)(A)  60 VRWM (V)  650 VF
(V) [max]@IF(A)  2.2 		IR (uA)  [max] @
VR  10 		TRR (μs)  0.05 IFSM (A)  500 IF(A)  60 VR (V)  650 Tj [max]
(°C)  175

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code
MUR6065BL TO-247AD TO-247AD 4.0500 MUR6065BL

Environmental Information link icon

Reliability Report Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report MSL MTBF FIT
Tin Whisker Test Report N/A 0.00 0.0
