Super Fast Recovery Rectifiers | Status : Active

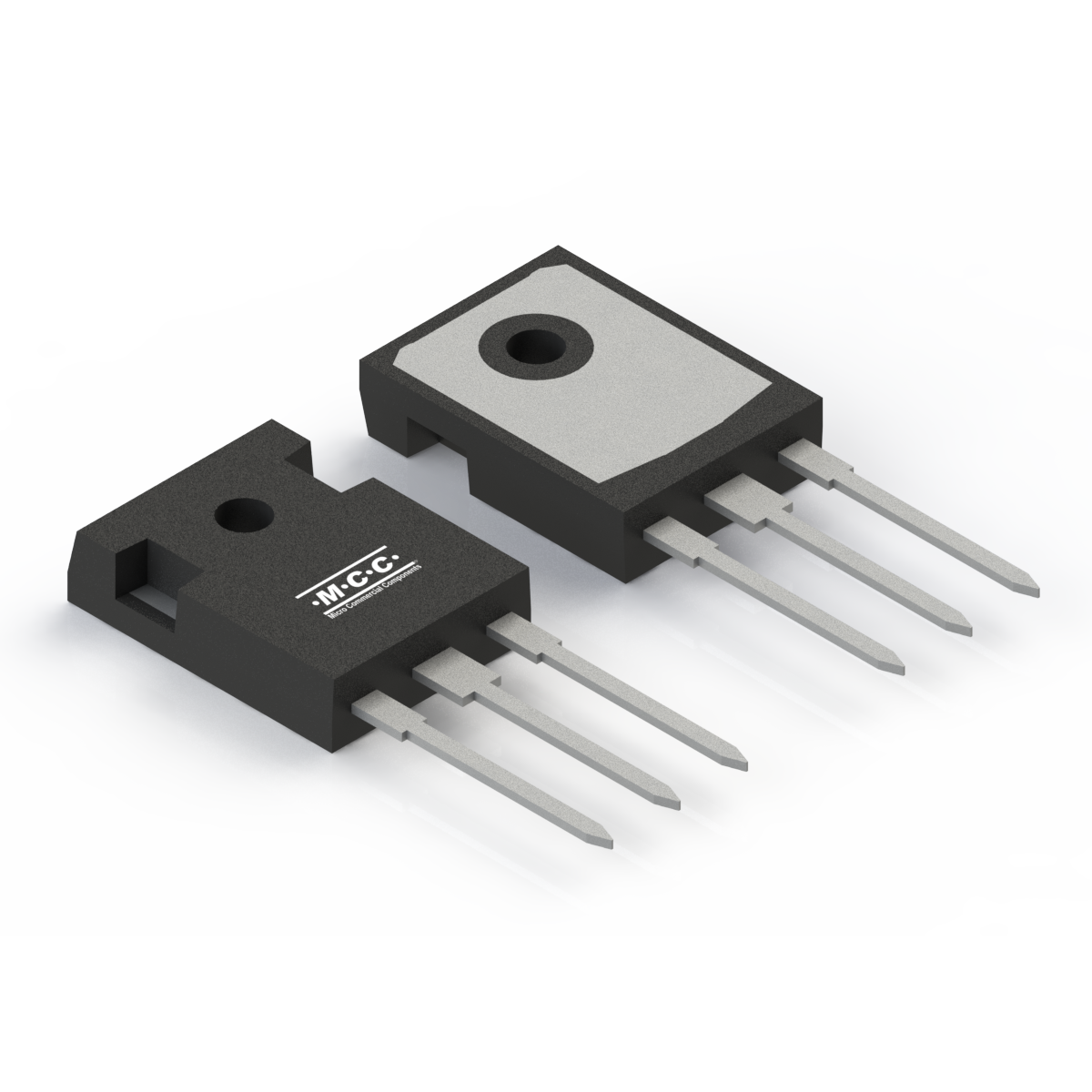

MUR6040PTS

Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA)  [max] @
VR		 TRR (μs) IFSM (A) IF(A) VR (V) Tj [max]
(°C)
MUR6040PTS Dual 60 400 1.4 5 0.028 300 30 400 150
Part Number MUR6040PTS Number of Functions Dual IF(AV)(A)  60 VRWM (V)  400 VF
(V) [max]@IF(A)  1.4 		IR (uA)  [max] @
VR  5 		TRR (μs)  0.028 IFSM (A)  300 IF(A)  30 VR (V)  400 Tj [max]
(°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code
MUR6040PTS TO-247 TO-247 5.6000 MUR6040PTS

Environmental Information link icon

Reliability Report Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report MSL MTBF FIT
Tin Whisker Test Report N/A 9992.46 11.4
