Small Signal MOSFETS | Status : Active

MCA03N06

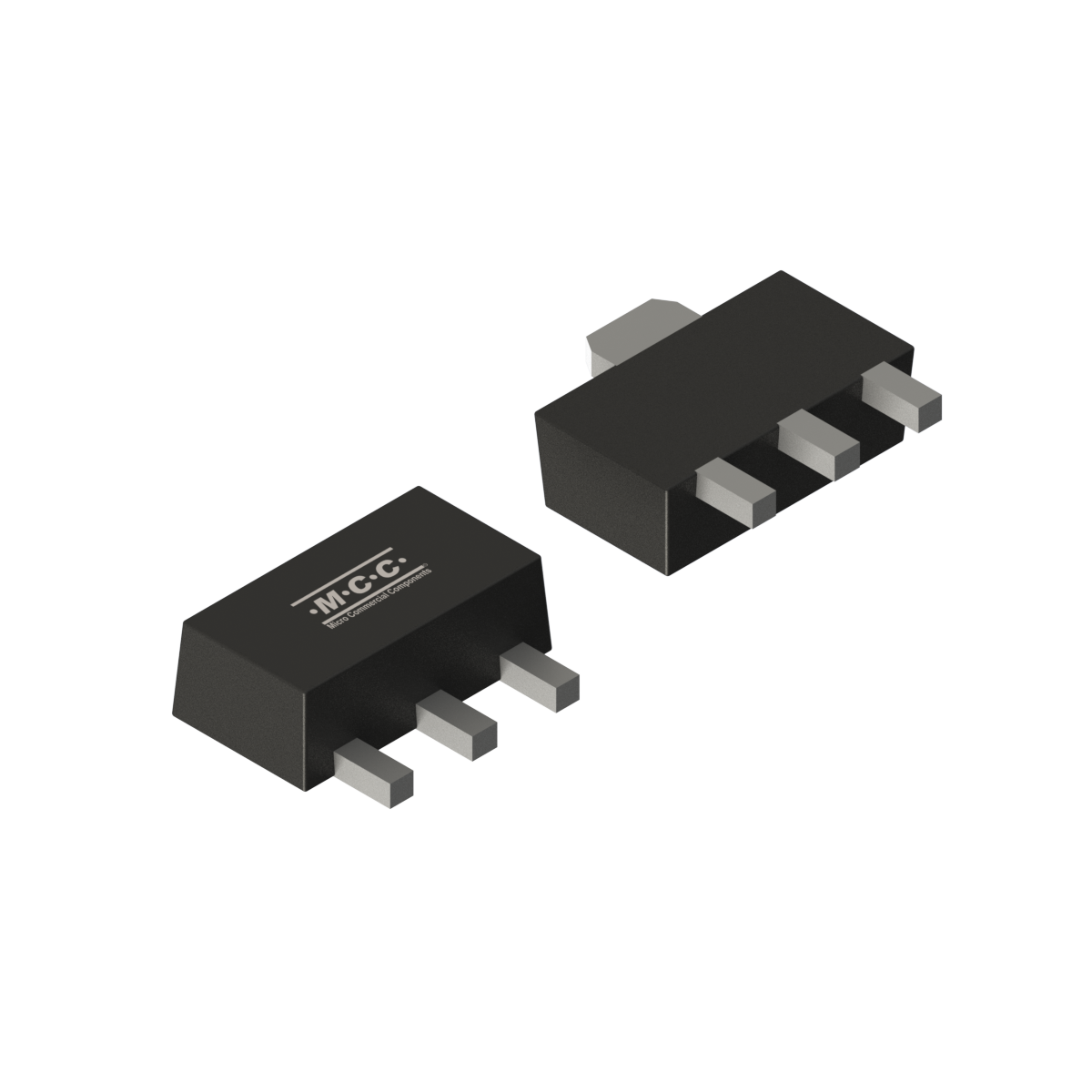

  • Package Type:SOT-89
  • Packing Info:Tape: 1K/Reel , 40K/Ctn;
  • Category:Small Signal MOSFETS
  • MPN:MCA03N06-TP
Check Stock Add To Cart
Datasheet ECAD Model Spice Model Reliability Data

Product Detail

Part Number Number of Functions Channel Drain-Source
Voltage
VDS (V)		 Gate-Source
Voltage
VGS (V)		 Drain
Current
ID (A)		 RDS(ON)
Max
@VGS=10V
(Ω)		 RDS(ON)
Max
@VGS=4.5V
(Ω)		 RDS(ON)
Max
@VGS=2.5V
(Ω)		 Gate
Threshold
Voltage
VGS(th) Min
(V)		 Gate
Threshold
Voltage
VGS(th) Max
(V)		 ESD
Diodes		 Junction
Temperature
Tj [max]
(°C)		 Input
Capacitance
Ciss(pF)		 Output
Capacitance
Coss(pF)		 Power
Rating
PD(W)		 Total Gate
Charge
Qg(nC)		 Gate-Drain
Charge
Qgd(nC)
MCA03N06 Single N 60 ±20 3 0.1 0.12 0.65 1.55 No 150 699 41 1.7 16 2.4
Part Number MCA03N06 Number of Functions Single Channel N Drain-Source
Voltage
VDS (V)  60 		Gate-Source
Voltage
VGS (V)  ±20 		Drain
Current
ID (A)  3 		RDS(ON)
Max
@VGS=10V
(Ω)  0.1 		RDS(ON)
Max
@VGS=4.5V
(Ω)  0.12 		RDS(ON)
Max
@VGS=2.5V
(Ω)   		Gate
Threshold
Voltage
VGS(th) Min
(V)  0.65 		Gate
Threshold
Voltage
VGS(th) Max
(V)  1.55 		ESD
Diodes  No 		Junction
Temperature
Tj [max]
(°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
MCA03N06 SOT-89 SOT-89 0.0450 6003 Tape: 1K/Reel , 40K/Ctn;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report Halogen Free MTBF FIT
Tin Whisker Test Report Halogen Free 12490.58 9.1
