Small Signal MOSFETS | Status : Active

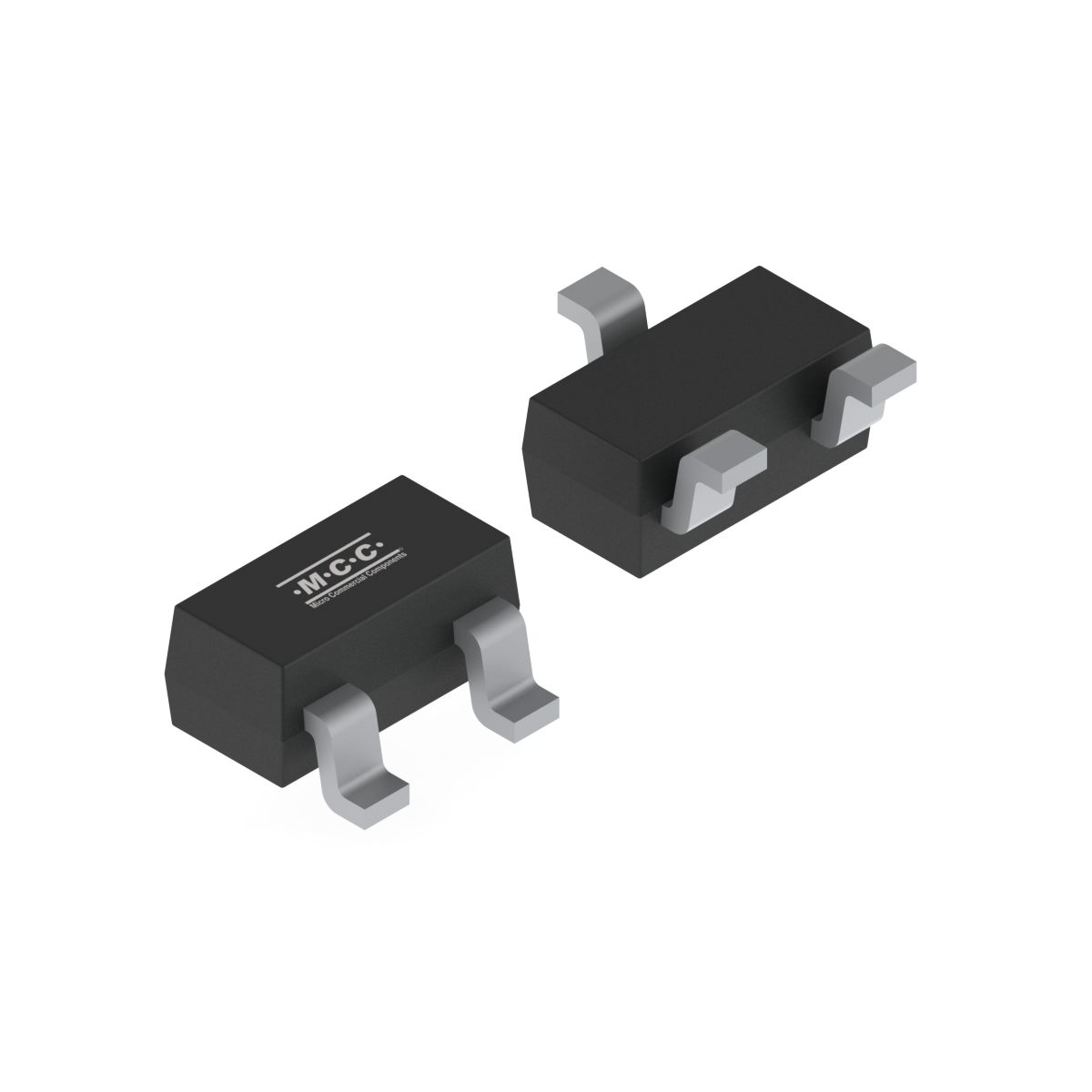

BSS84KT

  • Package Type:SOT-523
  • Packing Info:Tape&Reel:3Kpcs/Reel
  • Category:Small Signal MOSFETS
  • MPN:BSS84KT-TP
Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions Channel Drain-Source
Voltage
VDS (V)		 Gate-Source
Voltage
VGS (V)		 Drain
Current
ID (A)		 RDS(ON)
Max
@VGS=10V
(Ω)		 RDS(ON)
Max
@VGS=4.5V
(Ω)		 RDS(ON)
Max
@VGS=2.5V
(Ω)		 Gate
Threshold
Voltage
VGS(th) Min
(V)		 Gate
Threshold
Voltage
VGS(th) Max
(V)		 ESD
Diodes		 Junction
Temperature
Tj [max]
(°C)		 Input
Capacitance
Ciss(pF)		 Output
Capacitance
Coss(pF)		 Power
Rating
PD(W)		 Total Gate
Charge
Qg(nC)		 Gate-Drain
Charge
Qgd(nC)
BSS84KT Single P -60 ±20 -0.26 6 7 -1 -2 Yes 150 37 6 0.27 2.2 0.2
Part Number BSS84KT Number of Functions Single Channel P Drain-Source
Voltage
VDS (V)  -60 		Gate-Source
Voltage
VGS (V)  ±20 		Drain
Current
ID (A)  -0.26 		RDS(ON)
Max
@VGS=10V
(Ω)  6 		RDS(ON)
Max
@VGS=4.5V
(Ω)  7 		RDS(ON)
Max
@VGS=2.5V
(Ω)   		Gate
Threshold
Voltage
VGS(th) Min
(V)  -1 		Gate
Threshold
Voltage
VGS(th) Max
(V)  -2 		ESD
Diodes  Yes 		Junction
Temperature
Tj [max]
(°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
BSS84KT SOT-523 SOT-523 0.0029 84K Tape&Reel:3Kpcs/Reel;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report Halogen Free MTBF FIT
Tin Whisker Test Report Halogen Free 7494.35 15.2
