Small Signal MOSFETS | Status : Active

BSS84DW

Part Number	Number of Functions	Channel	Drain-Source Voltage V_DS (V)	Gate-Source Voltage V_GS (V)	Drain Current I_D (A)	RDS(ON) Max @VGS=10V (Ω)	RDS(ON) Max @VGS=4.5V (Ω)	RDS(ON) Max @VGS=2.5V (Ω)	Gate Threshold Voltage VGS(th) Min (V)	Gate Threshold Voltage VGS(th) Max (V)	ESD Diodes	Junction Temperature Tj [max] (°C)	Input Capacitance Ciss(pF)	Output Capacitance Coss(pF)	Power Rating P_D(W)	Total Gate Charge Qg(nC)	Gate-Drain Charge Qgd(nC)
BSS84DW	Dual	P+P	-60	±20	-0.16	8			-0.9	-2	No	150	39	4	0.45	2.4	0.4

Part Number BSS84DW

Number of Functions Dual

Channel P+P

Drain-Source
Voltage
V_DS (V) -60

Gate-Source
Voltage
V_GS (V) ±20

Drain
Current
I_D (A) -0.16

RDS(ON)
Max
@VGS=10V
(Ω) 8

RDS(ON)
Max
@VGS=4.5V
(Ω)

RDS(ON)
Max
@VGS=2.5V
(Ω)

Gate
Threshold
Voltage
VGS(th) Min
(V) -0.9

Gate
Threshold
Voltage
VGS(th) Max
(V) -2

ESD
Diodes No

Junction
Temperature
Tj [max]
(°C) 150

Part Number	Package Type	Packing Specification	Component Weight (g)	Marking Code	Packing Info

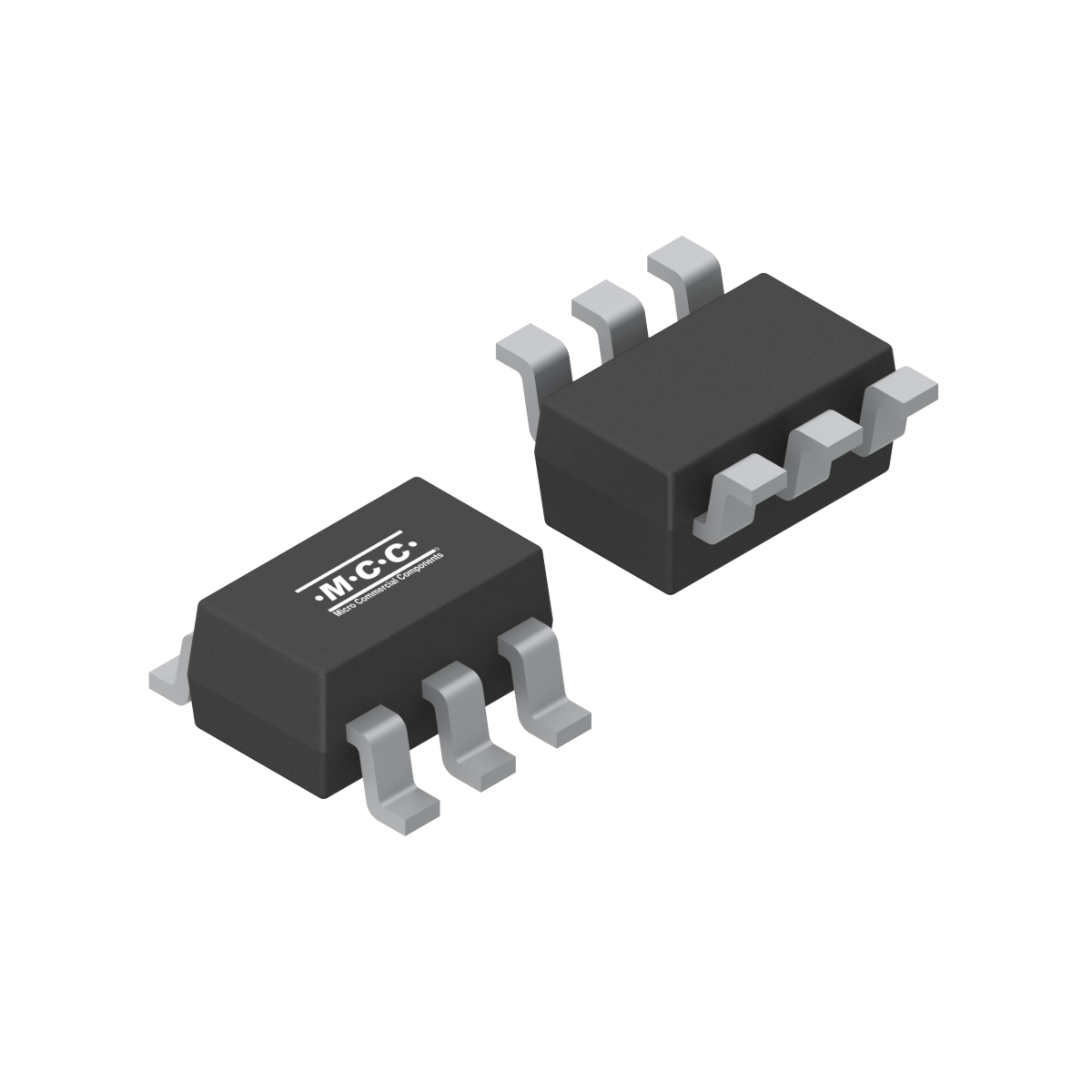

BSS84DW	SOT-363	SOT-363	0.0090	B84	Tape&Reel:3Kpcs/Reel;

Reliability Report	Material Composition Data Sheet	Soldering Profile	Environmental Compliance
Download	Download	Download	Download

Tin Whisker Test Report	MSL	Halogen Free	MTBF	FIT
	1		17486.81	6.5

ECN/PCN No#	Title	PDF	Issued Date
031325-1	Additional new 2nd source		03/13/2025
071123-1	Add a new foundry source for BSS84 series products		07/11/2023

Part Number	Category	Package Type	Status	Datasheet
2N7002KM	Small Signal MOSFETS	SOT-723	Active	Datasheet
2N7002KS	Small Signal MOSFETS	SOT-23	Active	Datasheet
2N7002KT	Small Signal MOSFETS	SOT-523	Active	Datasheet
2N7002W	Small Signal MOSFETS	SOT-323	Active	Datasheet
