Small Signal MOSFETS | Status :
Active

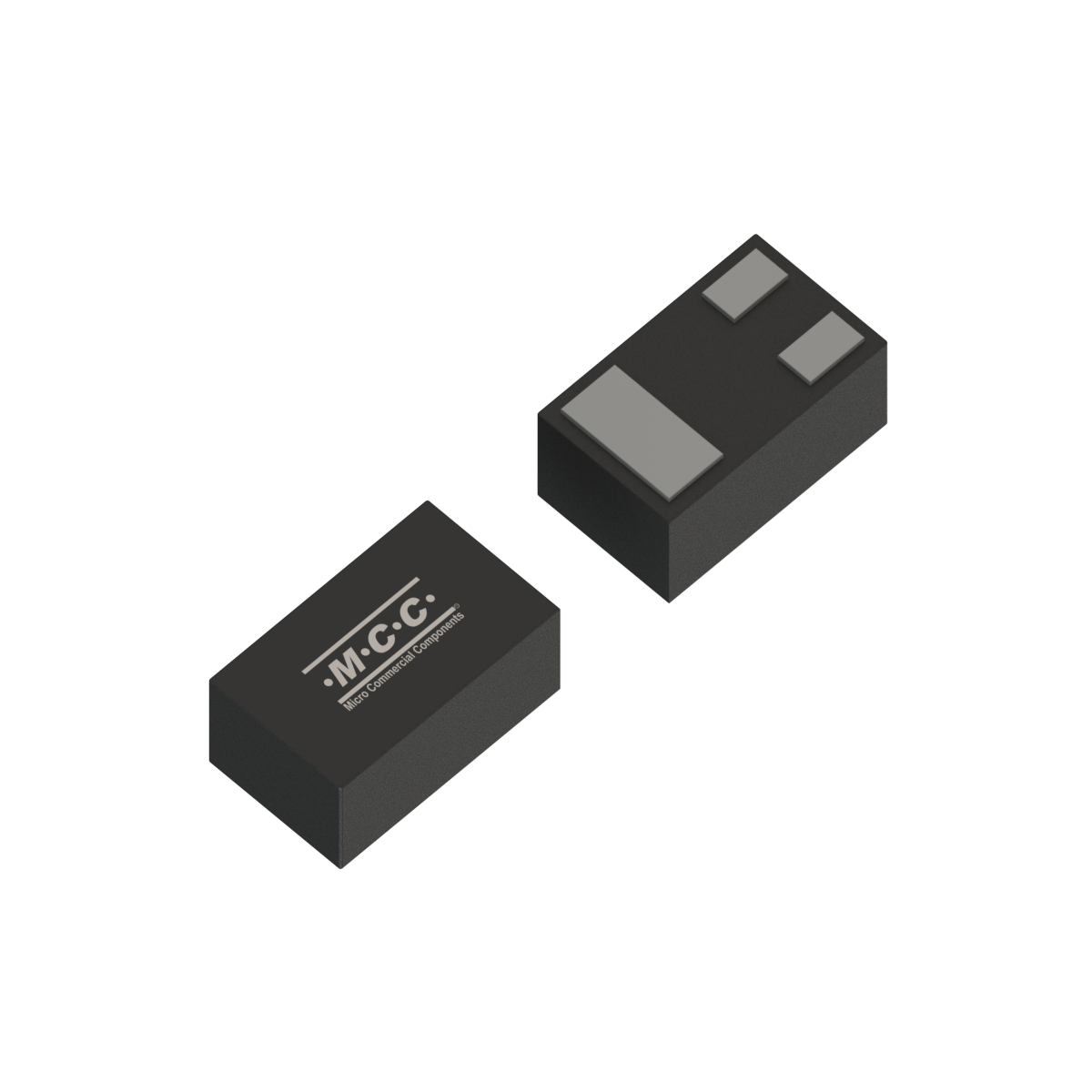

2N7002KL3A
- Package Type:DFN1006-3
- Packing Info:Tape&Reel: 10Kpcs/Reel
- Category:Small Signal MOSFETS
- MPN:2N7002KL3A-TP, 2N7002KL3A-TPQ3
Product Detail
| Part Number | Number of Functions | Channel | Drain-Source Voltage VDS (V) |
Gate-Source Voltage VGS (V) |
Drain Current ID (A) |
RDS(ON) Max @VGS=10V (Ω) |
RDS(ON) Max @VGS=4.5V (Ω) |
RDS(ON) Max @VGS=2.5V (Ω) |
Gate Threshold Voltage VGS(th) Min (V) |
Gate Threshold Voltage VGS(th) Max (V) |
ESD Diodes |
Junction Temperature Tj [max] (°C) |
Input Capacitance Ciss(pF) |
Output Capacitance Coss(pF) |
Power Rating PD(W) |
Total Gate Charge Qg(nC) |
Gate-Drain Charge Qgd(nC) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2N7002KL3A | Single | N | 60 | ±20 | 0.26 | 2.5 | 3 | 1 | 2.5 | Yes | 150 | 15 | 3 | 0.33 | 0.9 | 0.25 |
| Part Number 2N7002KL3A | Number of Functions Single | Channel N |
Drain-Source Voltage VDS (V) 60 |
Gate-Source Voltage VGS (V) ±20 |
Drain Current ID (A) 0.26 |
RDS(ON) Max @VGS=10V (Ω) 2.5 |
RDS(ON) Max @VGS=4.5V (Ω) 3 |
RDS(ON) Max @VGS=2.5V (Ω) |
Gate Threshold Voltage VGS(th) Min (V) 1 |
Gate Threshold Voltage VGS(th) Max (V) 2.5 |
ESD Diodes Yes |
Junction Temperature Tj [max] (°C) 150 |
Packing Information
Environmental Information
Download
| MSL | Halogen Free | MTBF | FIT |
|---|---|---|---|
| 3 |
|
7494.35 | 15.2 |
