Small Signal MOSFETS | Status : Active

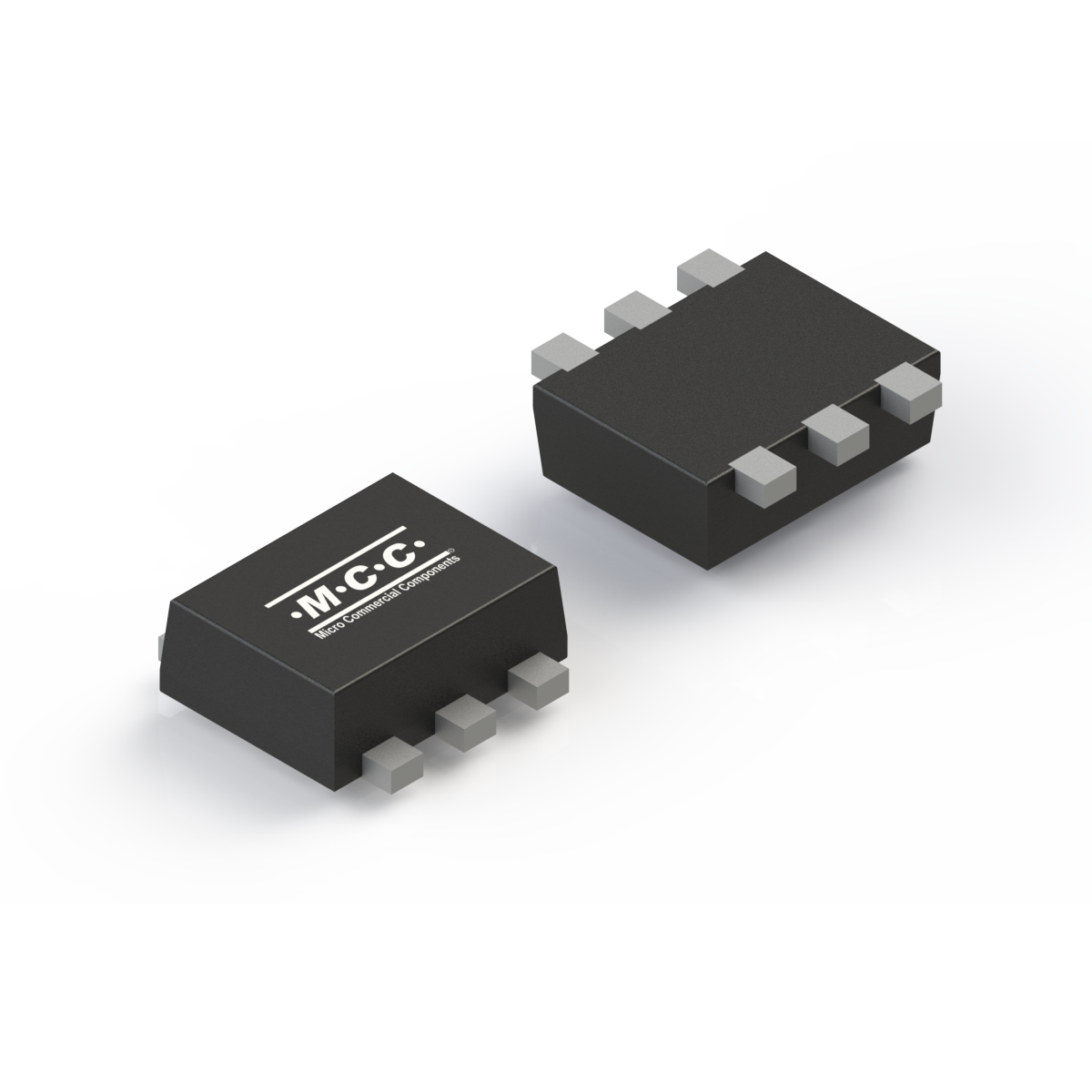

2N7002V

  • Package Type:SOT-563
  • Packing Info:Tape : 3K/Reel , 120K/Ctn;
  • Category:Small Signal MOSFETS
  • MPN:2N7002V-TP
Check Stock Add To Cart
Datasheet ECAD Model Spice Model Reliability Data

Product Detail

Part Number Number of Functions Channel Drain-Source
Voltage
VDS (V)		 Gate-Source
Voltage
VGS (V)		 Drain
Current
ID (A)		 RDS(ON)
Max
@VGS=10V
(Ω)		 RDS(ON)
Max
@VGS=4.5V
(Ω)		 RDS(ON)
Max
@VGS=2.5V
(Ω)		 Gate
Threshold
Voltage
VGS(th) Min
(V)		 Gate
Threshold
Voltage
VGS(th) Max
(V)		 ESD
Diodes		 Junction
Temperature
Tj [max]
(°C)		 Input
Capacitance
Ciss(pF)		 Output
Capacitance
Coss(pF)		 Power
Rating
PD(W)		 Total Gate
Charge
Qg(nC)		 Gate-Drain
Charge
Qgd(nC)
2N7002V Dual N+N 60 ±20 0.115 2.5 1 2.5 No 150 25.2 3.5 0.15 1.1 0.25
Part Number 2N7002V Number of Functions Dual Channel N+N Drain-Source
Voltage
VDS (V)  60 		Gate-Source
Voltage
VGS (V)  ±20 		Drain
Current
ID (A)  0.115 		RDS(ON)
Max
@VGS=10V
(Ω)  2.5 		RDS(ON)
Max
@VGS=4.5V
(Ω)   		RDS(ON)
Max
@VGS=2.5V
(Ω)   		Gate
Threshold
Voltage
VGS(th) Min
(V)  1 		Gate
Threshold
Voltage
VGS(th) Max
(V)  2.5 		ESD
Diodes  No 		Junction
Temperature
Tj [max]
(°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
2N7002V SOT-563 SOT-563 0.0030 KAS Tape : 3K/Reel , 120K/Ctn;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report Halogen Free MTBF FIT
Tin Whisker Test Report Halogen Free 19984.92 5.7

ECN/PCN

ECN/PCN No# Title PDF Issued Date
043021-2 Additional new lead frame for SOT-563 Package PDF 04/30/2021
