Small Signal MOSFETS | Status : Active

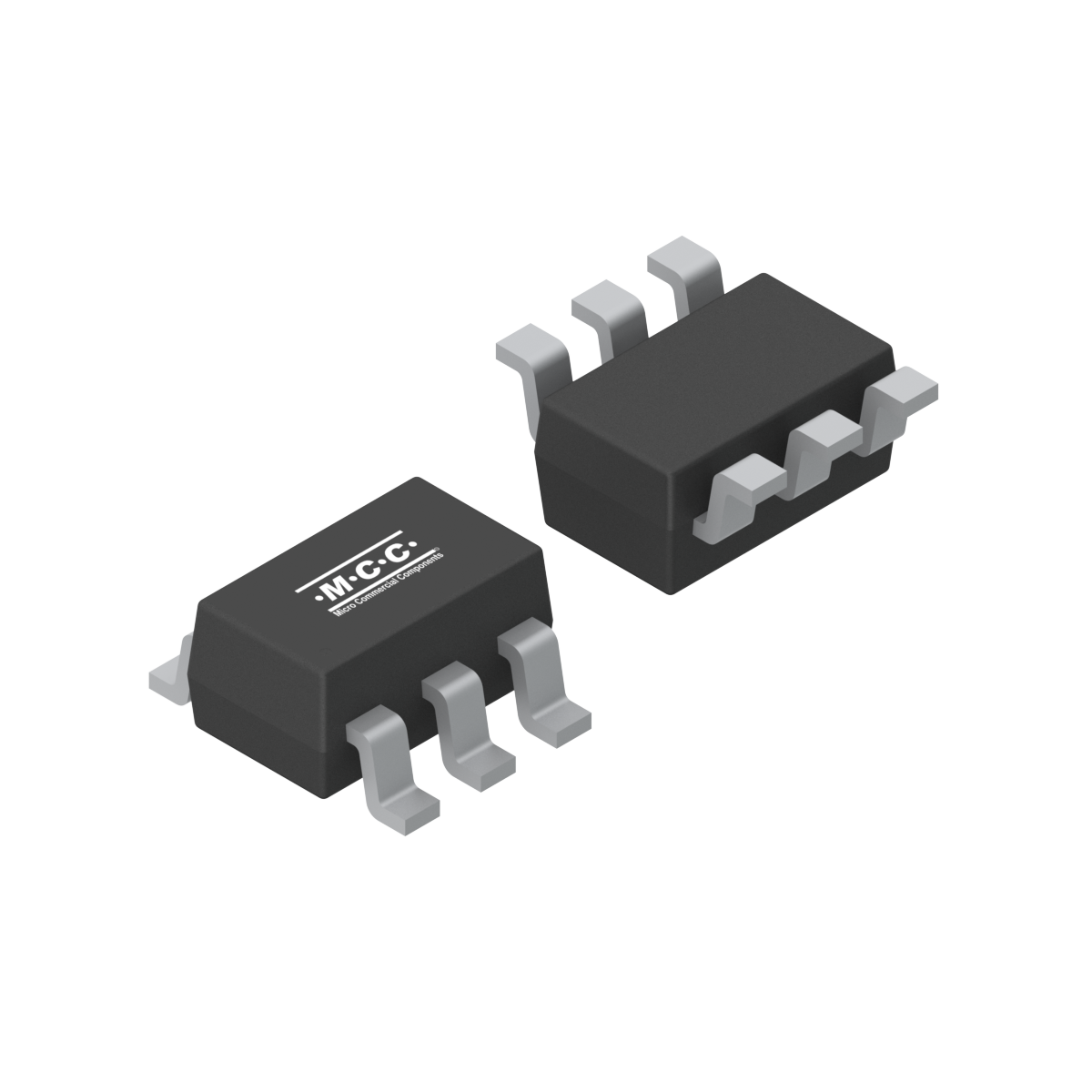

2N7002DW

Part Number	Number of Functions	Channel	Drain-Source Voltage V_DS (V)	Gate-Source Voltage V_GS (V)	Drain Current I_D (A)	RDS(ON) Max @VGS=10V (Ω)	RDS(ON) Max @VGS=4.5V (Ω)	RDS(ON) Max @VGS=2.5V (Ω)	Gate Threshold Voltage VGS(th) Min (V)	Gate Threshold Voltage VGS(th) Max (V)	ESD Diodes	Junction Temperature Tj [max] (°C)	Input Capacitance Ciss(pF)	Output Capacitance Coss(pF)	Power Rating P_D(W)	Total Gate Charge Qg(nC)	Gate-Drain Charge Qgd(nC)
2N7002DW	Dual	N+N	60	±20	0.34	2.5	3		1	2.5	No	150	25.2	3.5	0.3	1.1	0.25

Part Number 2N7002DW

Number of Functions Dual

Channel N+N

Drain-Source
Voltage
V_DS (V) 60

Gate-Source
Voltage
V_GS (V) ±20

Drain
Current
I_D (A) 0.34

RDS(ON)
Max
@VGS=10V
(Ω) 2.5

RDS(ON)
Max
@VGS=4.5V
(Ω) 3

RDS(ON)
Max
@VGS=2.5V
(Ω)

Gate
Threshold
Voltage
VGS(th) Min
(V) 1

Gate
Threshold
Voltage
VGS(th) Max
(V) 2.5

ESD
Diodes No

Junction
Temperature
Tj [max]
(°C) 150

Part Number	Package Type	Packing Specification	Component Weight (g)	Marking Code	Packing Info
2N7002DW	SOT-363	SOT-363	0.0090	K72	Tape: 3K/Reel, 120K/Ctn.;

Reliability Report	Material Composition Data Sheet	Soldering Profile	Environmental Compliance
Download	Download	Download	Download

Tin Whisker Test Report	Halogen Free	MTBF	FIT
		19984.92	5.7

ECN/PCN No#	Title	Issued Date
031325-1	Additional new 2nd source	03/13/2025
080111	Remove the plastic ziploc bag of the reel for SOT&SOD Packages PCN#080111	08/15/2011
070103	Pb(Lead) Free Plating Conversion	07/01/2003

Part Number	Category	Package Type	Status	Datasheet
2N7002KM	Small Signal MOSFETS	SOT-723	Active	Datasheet
2N7002KS	Small Signal MOSFETS	SOT-23	Active	Datasheet
2N7002KT	Small Signal MOSFETS	SOT-523	Active	Datasheet
2N7002W	Small Signal MOSFETS	SOT-323	Active	Datasheet
