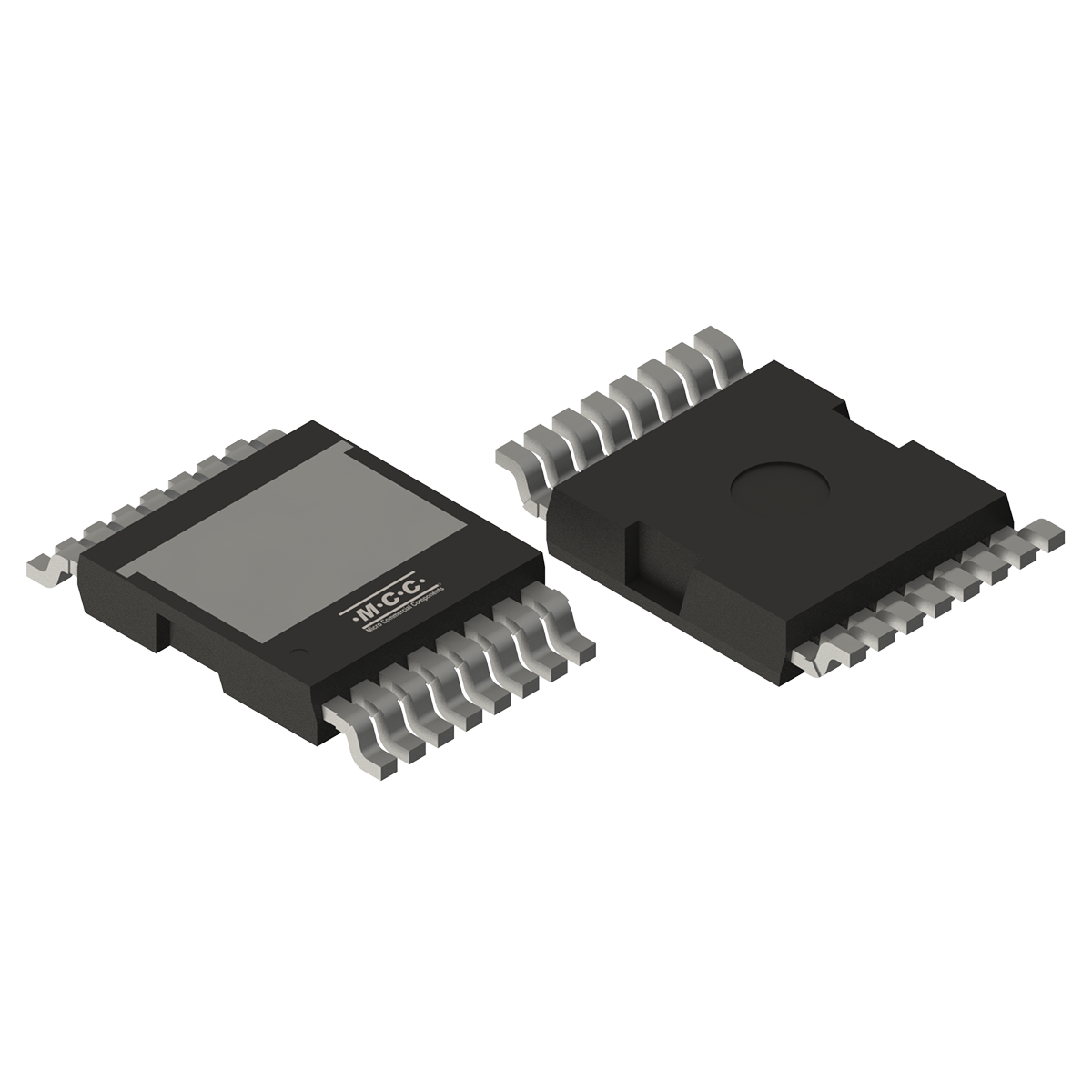

Power MOSFETS | Status : Preferred

MCTT1D9N10YH

Part Number	Number of Functions	Channel	Drain-Source Voltage V_DS (V)	Gate-Source Voltage V_GS (V)	Drain Current I_D (A)	Drain-Source On-Resistance RDS(ON) Max @VGS=10V (Ω)	Drain-Source On-Resistance RDS(ON) Max @VGS=4.5V (Ω)	Drain-Source On-Resistance RDS(ON) Max @VGS=2.5V (Ω)	Gate Threshold Voltage VGS(th) Min (V)	Gate Threshold Voltage VGS(th) Max (V)	ESD Diodes	Junction Temperature Tj [max] (°C)	Single Pulsed Avalanche Energy E_AS(mJ)	Pulsed Drain Current I_DM(A)	Input Capacitance Ciss(pF)	Output Capacitance Coss(pF)	Power Rating P_D(W)	Total Gate Charge Qg(nC)	Gate-Drain Charge Qgd(nC)
MCTT1D9N10YH	Single	N	100	±20	272	0.0019			2.2	3.8	No	175	1225	1088	9600	3245	312	132.5	17

Part Number MCTT1D9N10YH

Number of Functions Single

Channel N

Drain-Source
Voltage
V_DS (V) 100

Gate-Source
Voltage
V_GS (V) ±20

Drain
Current
I_D (A) 272

Drain-Source
On-Resistance
RDS(ON)
Max
@VGS=10V (Ω) 0.0019

Drain-Source
On-Resistance
RDS(ON)
Max
@VGS=4.5V (Ω)

Drain-Source
On-Resistance
RDS(ON)
Max
@VGS=2.5V (Ω)

Gate
Threshold
Voltage
VGS(th)
Min
(V) 2.2

Gate
Threshold
Voltage
VGS(th) Max
(V) 3.8

ESD
Diodes No

Junction
Temperature
Tj [max]
(°C) 175

Single Pulsed
Avalanche
Energy
E_AS(mJ) 1225

Pulsed Drain
Current
I_DM(A) 1088

Part Number	Package Type	Packing Specification	Component Weight (g)	Marking Code	Packing Info
MCTT1D9N10YH	TOLT	TOLT	0.8540	1D9N10YH	Tape&Reel:1.2Kpcs/Reel;

Reliability Report	Soldering Profile	Environmental Compliance
Download	Download	Download

MSL	MTBF	FIT
1	0.00	0.0
