Power MOSFETS | Status :
Preferred
Automotive
MCG080N06LHE3

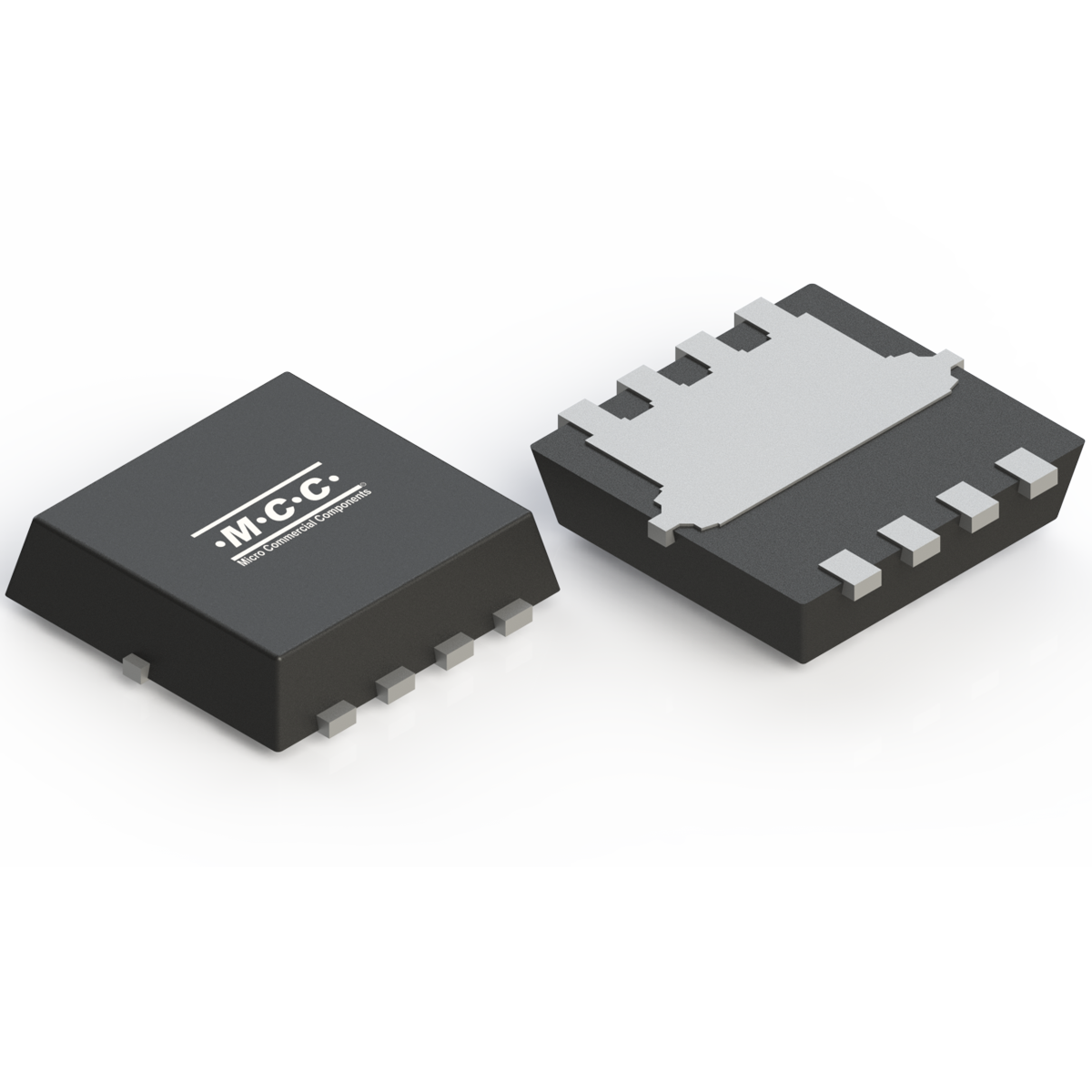

- Package Type:PDFN3333-B
- Packing Info:Tape&Reel:5Kpcs/Reel;
- Category:Power MOSFETS
- MPN:MCG080N06LHE3-TP
Product Detail
| Part Number | Number of Functions | Channel | Drain-Source Voltage VDS (V) |
Gate-Source Voltage VGS (V) |
Drain Current ID (A) |
Drain-Source On-Resistance RDS(ON) Max @VGS=10V (Ω) |
Drain-Source On-Resistance RDS(ON) Max @VGS=4.5V (Ω) |
Drain-Source On-Resistance RDS(ON) Max @VGS=2.5V (Ω) |
Gate Threshold Voltage VGS(th) Min (V) |
Gate Threshold Voltage VGS(th) Max (V) |
ESD Diodes |
Junction Temperature Tj [max] (°C) |
Single Pulsed Avalanche Energy EAS(mJ) |
Pulsed Drain Current IDM(A) |
Input Capacitance Ciss(pF) |
Output Capacitance Coss(pF) |
Power Rating PD(W) |
Total Gate Charge Qg(nC) |
Gate-Drain Charge Qgd(nC) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MCG080N06LHE3 | Single | N | 60 | ±20 | 9 | 0.08 | 0.09 | 0.9 | 2 | No | 150 | 12 | 36 | 497 | 28 | 24 | 10.5 | 1.25 |
| Part Number MCG080N06LHE3 | Number of Functions Single | Channel N |
Drain-Source Voltage VDS (V) 60 |
Gate-Source Voltage VGS (V) ±20 |
Drain Current ID (A) 9 |
Drain-Source On-Resistance RDS(ON) Max @VGS=10V (Ω) 0.08 |
Drain-Source On-Resistance RDS(ON) Max @VGS=4.5V (Ω) 0.09 |
Drain-Source On-Resistance RDS(ON) Max @VGS=2.5V (Ω) |
Gate Threshold Voltage VGS(th) Min (V) 0.9 |
Gate Threshold Voltage VGS(th) Max (V) 2 |
ESD Diodes No |
Junction Temperature Tj [max] (°C) 150 |
Single Pulsed Avalanche Energy EAS(mJ) 12 |
Pulsed Drain Current IDM(A) 36 |
Packing Information
| Part Number | Package Type | Packing Specification | Component Weight (g) | Marking Code | Packing Info |
|---|---|---|---|---|---|
| MCG080N06LHE3 | PDFN3333-B | PDFN3333-B | 0.0300 | MCG080N06 | Tape&Reel:5Kpcs/Reel; |
Environmental Information
Download
| MSL | MTBF | FIT |
|---|---|---|
| 1 | 0.00 | 0.0 |
