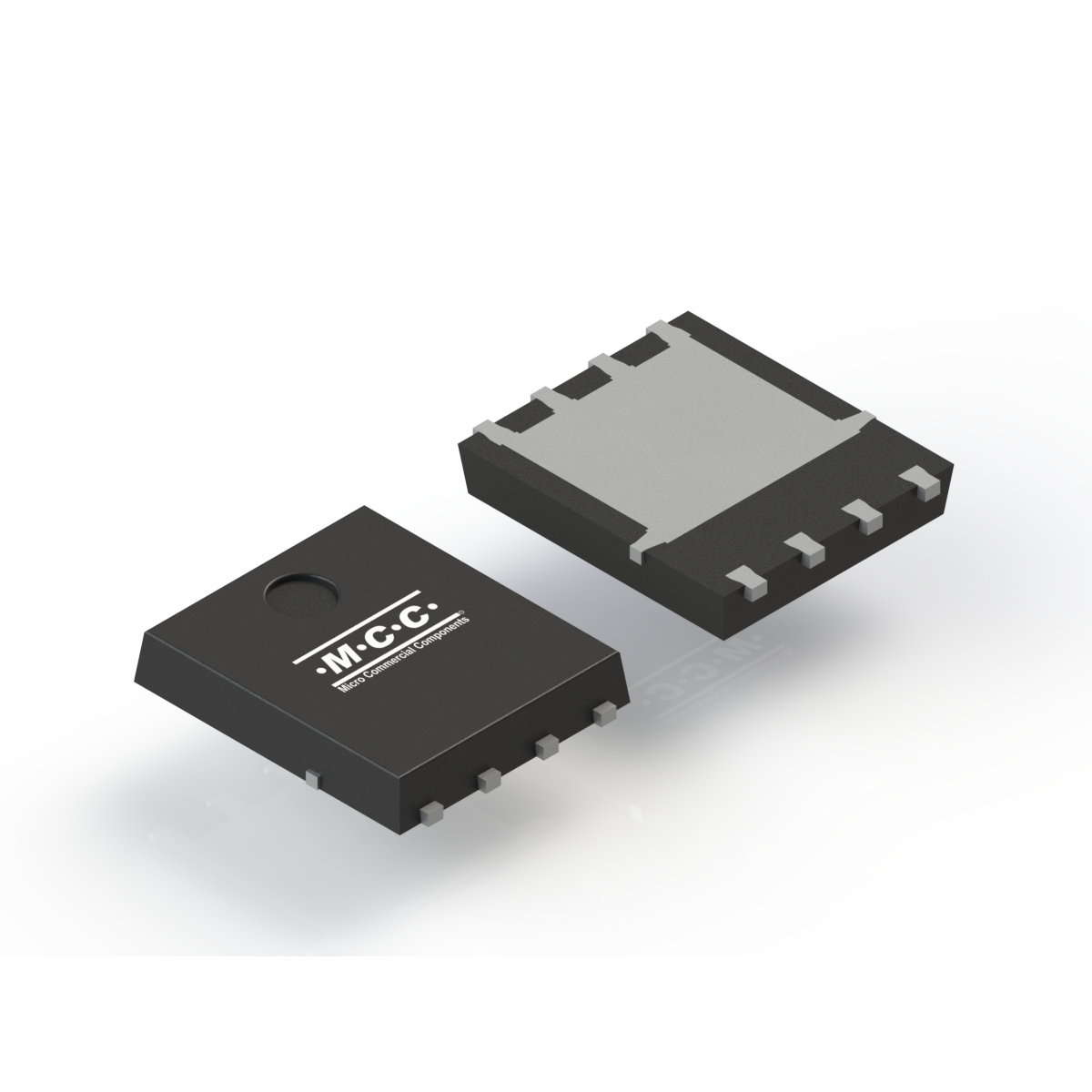

MCACL120N10YA
- Package Type:DFN5060-C
- Packing Info:Tape&Reel:5Kpcs/Reel
- Category:Power MOSFETS
- MPN:MCACL120N10YA-TP
Product Detail
| Part Number | Number of Functions | Channel | Drain-Source Voltage VDS (V) |
Gate-Source Voltage VGS (V) |
Drain Current ID (A) |
Drain-Source On-Resistance RDS(ON) Max @VGS=10V (Ω) |
Drain-Source On-Resistance RDS(ON) Max @VGS=4.5V (Ω) |
Drain-Source On-Resistance RDS(ON) Max @VGS=2.5V (Ω) |
Gate Threshold Voltage VGS(th) Min (V) |
Gate Threshold Voltage VGS(th) Max (V) |
ESD Diodes |
Junction Temperature Tj [max] (°C) |
Single Pulsed Avalanche Energy EAS(mJ) |
Pulsed Drain Current IDM(A) |
Input Capacitance Ciss(pF) |
Output Capacitance Coss(pF) |
Power Rating PD(W) |
Total Gate Charge Qg(nC) |
Gate-Drain Charge Qgd(nC) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MCACL120N10YA | Single | N | 100 | ±20 | 120 | 0.004 | 0.005 | 1 | 2.5 | No | 150 | 529 | 480 | 4400 | 1600 | 116 | 75 | 12 |
| Part Number MCACL120N10YA | Number of Functions Single | Channel N |
Drain-Source Voltage VDS (V) 100 |
Gate-Source Voltage VGS (V) ±20 |
Drain Current ID (A) 120 |
Drain-Source On-Resistance RDS(ON) Max @VGS=10V (Ω) 0.004 |
Drain-Source On-Resistance RDS(ON) Max @VGS=4.5V (Ω) 0.005 |
Drain-Source On-Resistance RDS(ON) Max @VGS=2.5V (Ω) |
Gate Threshold Voltage VGS(th) Min (V) 1 |
Gate Threshold Voltage VGS(th) Max (V) 2.5 |
ESD Diodes No |
Junction Temperature Tj [max] (°C) 150 |
Single Pulsed Avalanche Energy EAS(mJ) 529 |
Pulsed Drain Current IDM(A) 480 |
Packing Information
Environmental Information
Download
| MTBF | FIT |
|---|---|
| 7494.35 | 15.2 |
