Power MOSFETS | Status :
Active
Automotive

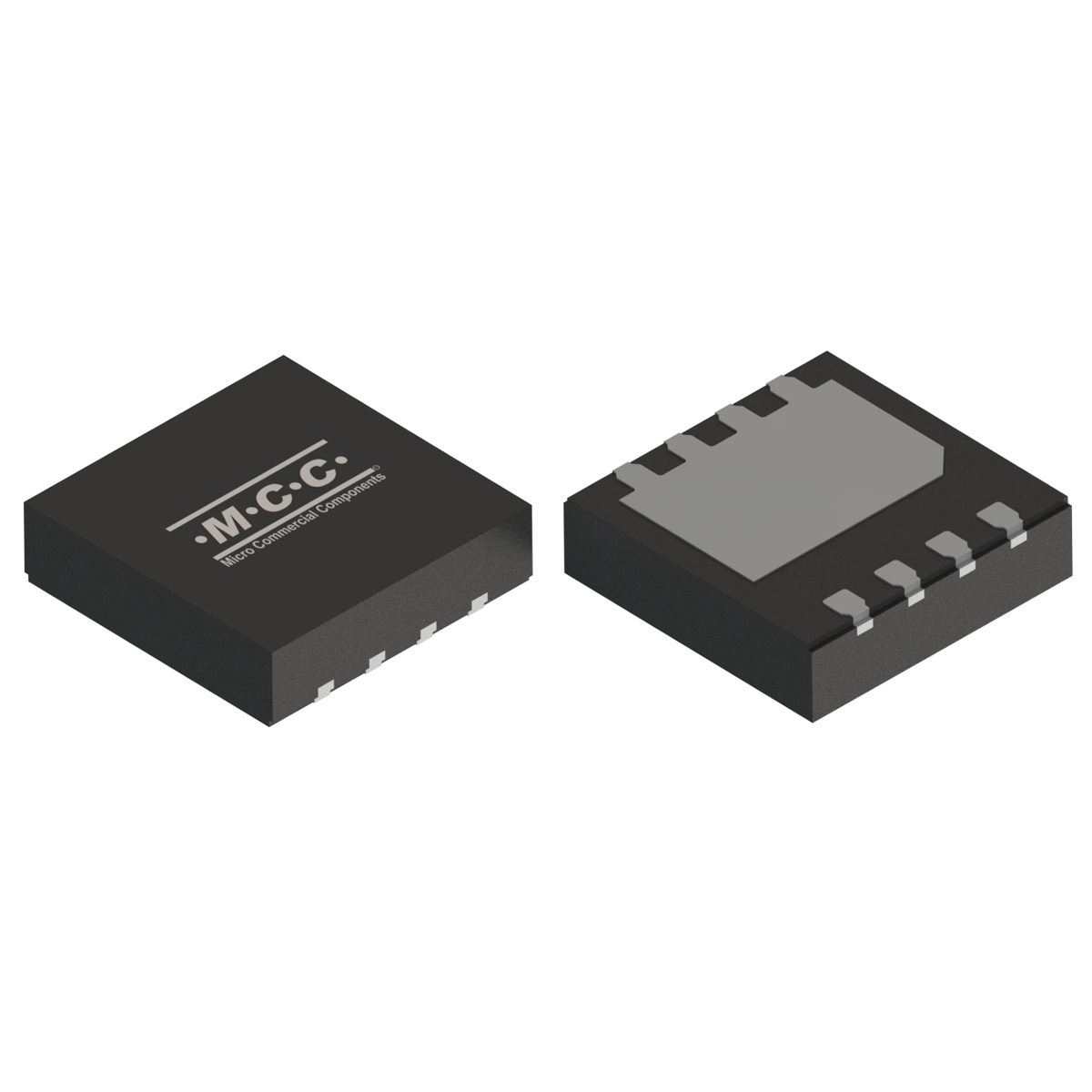

MCGWF45P04HE3
- Package Type:DFN3333-8(SWF)
- Packing Info:Tape&Reel:5Kpcs/Reel;
- Category:Power MOSFETS
- MPN:MCGWF45P04HE3-TP
Product Detail
| Part Number | Number of Functions | Channel | Drain-Source Voltage VDS (V) |
Gate-Source Voltage VGS (V) |
Drain Current ID (A) |
Drain-Source On-Resistance RDS(ON) Max @VGS=10V (Ω) |
Drain-Source On-Resistance RDS(ON) Max @VGS=4.5V (Ω) |
Drain-Source On-Resistance RDS(ON) Max @VGS=2.5V (Ω) |
Gate Threshold Voltage VGS(th) Min (V) |
Gate Threshold Voltage VGS(th) Max (V) |
ESD Diodes |
Junction Temperature Tj [max] (°C) |
Single Pulsed Avalanche Energy EAS(mJ) |
Pulsed Drain Current IDM(A) |
Input Capacitance Ciss(pF) |
Output Capacitance Coss(pF) |
Power Rating PD(W) |
Total Gate Charge Qg(nC) |
Gate-Drain Charge Qgd(nC) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MCGWF45P04HE3 | Single | P | -40 | ±20 | -45 | 0.013 | 0.017 | -1 | -3 | No | 150 | 132 | -180 | 3136 | 247 | 41.7 | 73.4 | 15.3 |
| Part Number MCGWF45P04HE3 | Number of Functions Single | Channel P |
Drain-Source Voltage VDS (V) -40 |
Gate-Source Voltage VGS (V) ±20 |
Drain Current ID (A) -45 |
Drain-Source On-Resistance RDS(ON) Max @VGS=10V (Ω) 0.013 |
Drain-Source On-Resistance RDS(ON) Max @VGS=4.5V (Ω) 0.017 |
Drain-Source On-Resistance RDS(ON) Max @VGS=2.5V (Ω) |
Gate Threshold Voltage VGS(th) Min (V) -1 |
Gate Threshold Voltage VGS(th) Max (V) -3 |
ESD Diodes No |
Junction Temperature Tj [max] (°C) 150 |
Single Pulsed Avalanche Energy EAS(mJ) 132 |
Pulsed Drain Current IDM(A) -180 |
Packing Information
| Part Number | Package Type | Packing Specification | Component Weight (g) | Marking Code | Packing Info |
|---|---|---|---|---|---|
| MCGWF45P04HE3 | DFN3333-8(SWF) | DFN3333-8(SWF) | 0.0000 | F45P04 | Tape&Reel:5Kpcs/Reel; |
Environmental Information
Download
| MSL | MTBF | FIT |
|---|---|---|
| 1 | 0.00 | 0.0 |
