TVS | Status :
Preferred

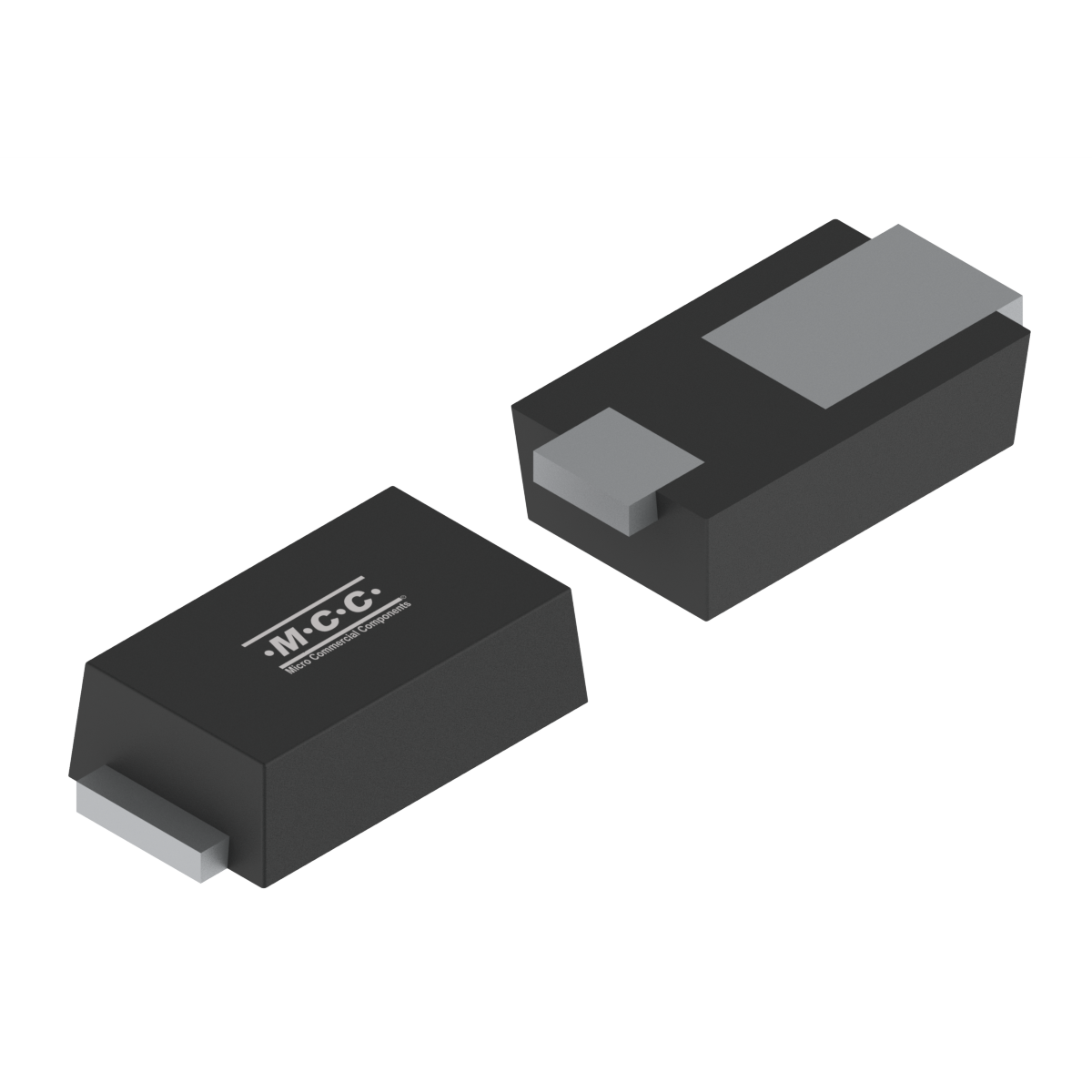

SMHE8.5A
- Package Type:SOD-323HE-B
- Packing Info:Tape&Reel:2.5Kpcs/Reel;
- Category:TVS
- MPN:SMHE8.5A-TP
Product Detail
| Part Number | Configuration | Peak Pulse Power Dissipation PPPM (W) |
Reverse Standoff Voltage VRWM(V) |
Reverse Leakage IR(uA) |
Max. Clamping Voltage VC (V) |
Peak Pulse Current IPP(A) |
Breakdown Voltage Min VBR(V) |
Breakdown Voltage Max VBR(V) |
Junction Temperature Tj [max] (°C) |
|---|---|---|---|---|---|---|---|---|---|
| SMHE8.5A | Unidirectional | 150 | 8.5 | 10 | 14.4 | 10.4 | 9.44 | 10.4 | 150 |
| Part Number SMHE8.5A | Configuration Unidirectional |
Peak Pulse Power Dissipation PPPM (W) 150 |
Reverse Standoff Voltage VRWM(V) 8.5 |
Reverse Leakage IR(uA) 10 |
Max. Clamping Voltage VC (V) 14.4 |
Peak Pulse Current IPP(A) 10.4 |
Breakdown Voltage Min VBR(V) 9.44 |
Breakdown Voltage Max VBR(V) 10.4 |
Junction Temperature Tj [max] (°C) 150 |
Packing Information
| Part Number | Package Type | Packing Specification | Component Weight (g) | Marking Code | Packing Info |
|---|---|---|---|---|---|
| SMHE8.5A | SOD-323HE-B | SOD-323HE-B | 0.0040 | AT | Tape&Reel:2.5Kpcs/Reel; |
Environmental Information
Download
| MSL | Halogen Free | MTBF | FIT |
|---|---|---|---|
| 1 |
|
0.00 | 0.0 |
