TVS | Status :
Active

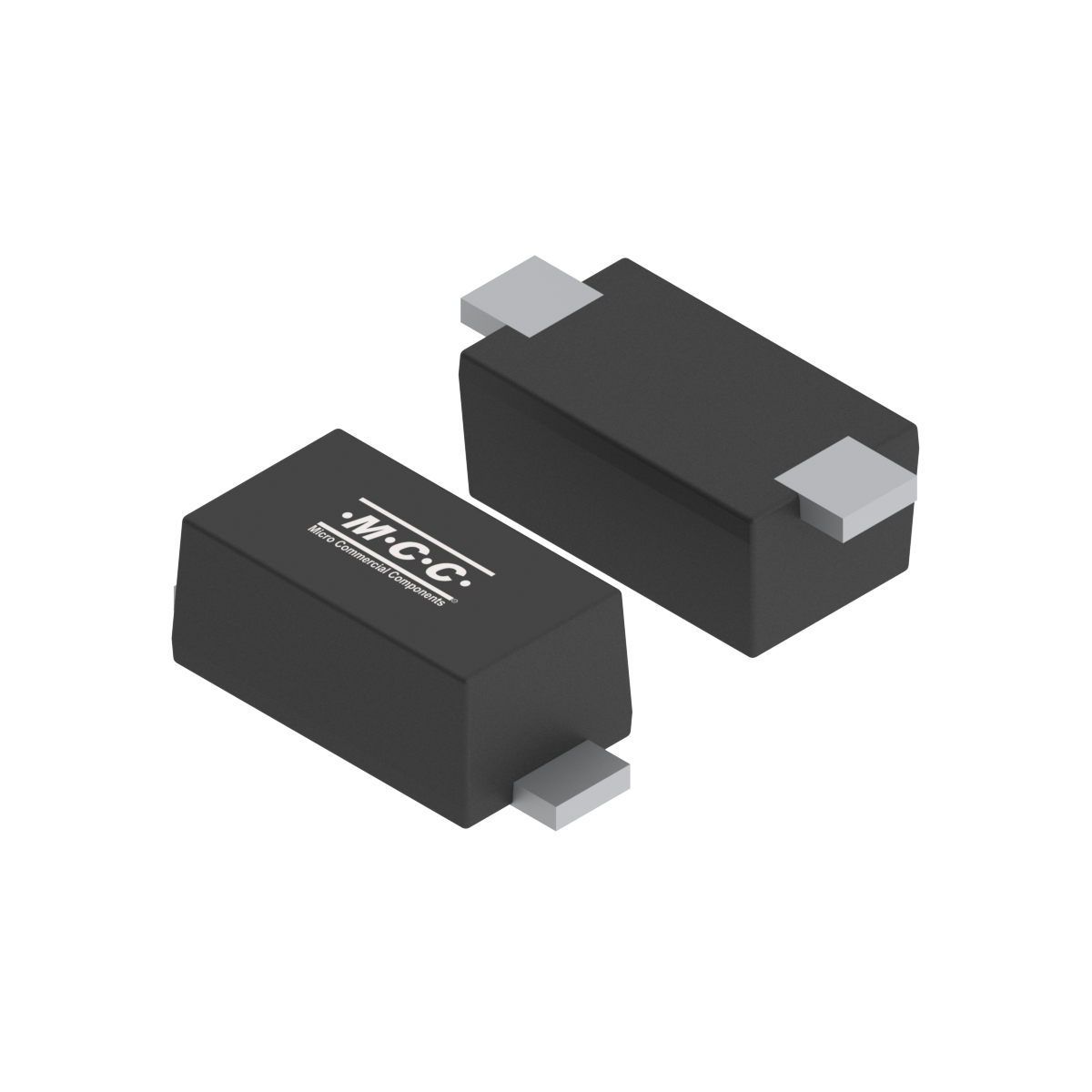

SMF45CA
- Package Type:SOD-123FL
- Packing Info:Tape&Reel: 2.5Kpcs/Reel
- Category:TVS
- MPN:SMF45CA-TP
Product Detail
| Part Number | Configuration | Peak Pulse Power Dissipation PPPM (W) |
Reverse Standoff Voltage VRWM(V) |
Reverse Leakage IR(uA) |
Max. Clamping Voltage VC (V) |
Peak Pulse Current IPP(A) |
Breakdown Voltage Min VBR(V) |
Breakdown Voltage Max VBR(V) |
Junction Temperature Tj [max] (°C) |
|---|---|---|---|---|---|---|---|---|---|
| SMF45CA | Bidirectional | 200 | 45 | 1 | 72.7 | 2.8 | 50 | 55.3 | 175 |
| Part Number SMF45CA | Configuration Bidirectional |
Peak Pulse Power Dissipation PPPM (W) 200 |
Reverse Standoff Voltage VRWM(V) 45 |
Reverse Leakage IR(uA) 1 |
Max. Clamping Voltage VC (V) 72.7 |
Peak Pulse Current IPP(A) 2.8 |
Breakdown Voltage Min VBR(V) 50 |
Breakdown Voltage Max VBR(V) 55.3 |
Junction Temperature Tj [max] (°C) 175 |
Packing Information
Environmental Information
Download
| Tin Whisker Test Report | MSL | Halogen Free | MTBF | FIT |
|---|---|---|---|---|
|
1 |
|
58361.37 | 2.0 |
ECN/PCN
| ECN/PCN No# | Title | Issued Date | |
|---|---|---|---|
| 010925-1 | Additional assembly & test centre |
|
01/09/2025 |
| 070103 | Pb(Lead) Free Plating Conversion |
|
07/01/2003 |
