ESD Protection Devices | Status :
Active

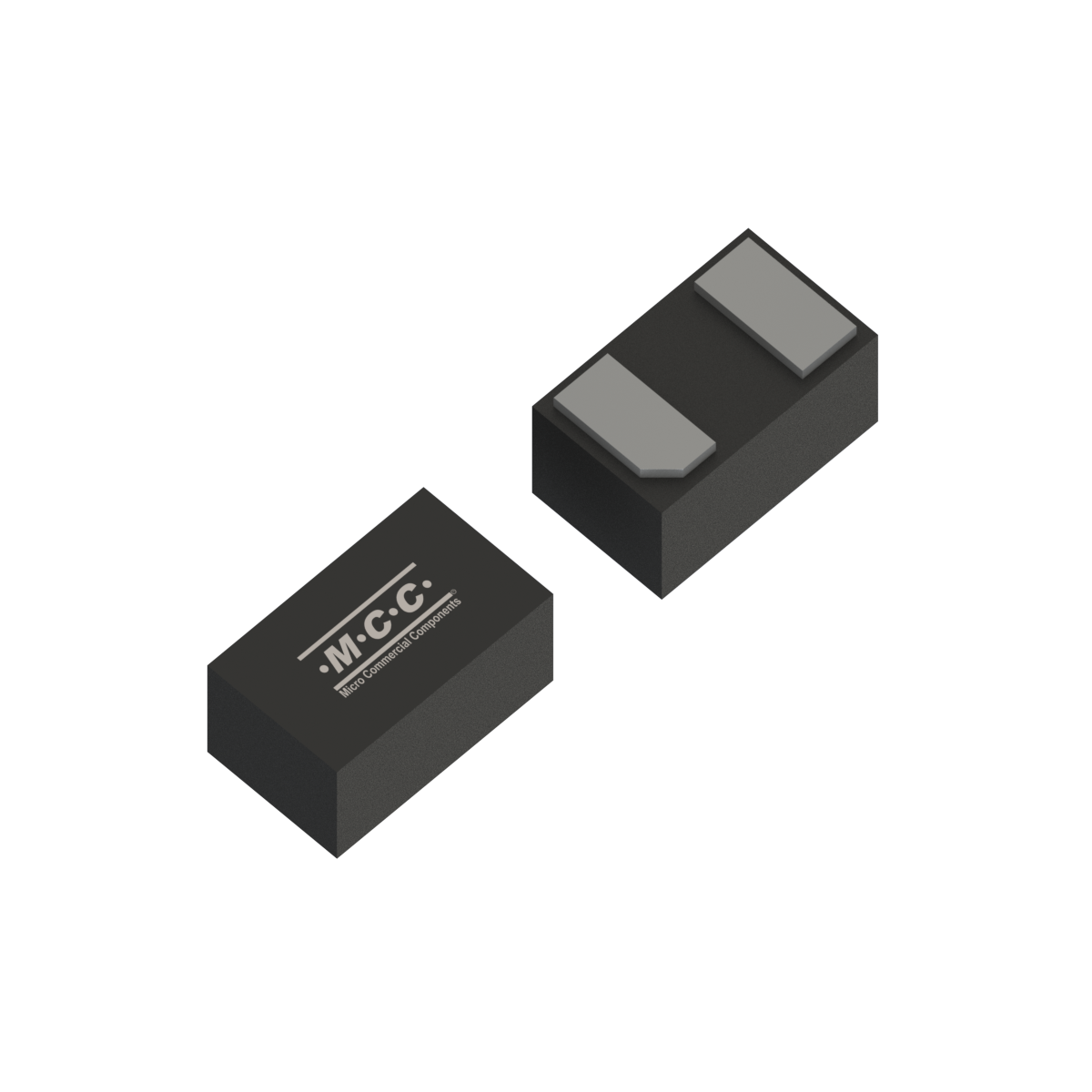

CSPSBSLC24VLB
- Package Type:CSP1006-2
- Packing Info: Tape:10K/Reel,120K/Ctn;
- Category:ESD Protection Devices
Product Detail
| Part Number | Number of Functions | Configuration | Reverse Standoff Voltage VRWM(V) |
Peak Pulse Current IPP(A) |
Max. Clamping Voltage VC (V) |
Junction Capacitance CJ(pF) |
Peak Pluse Power Dissipation PPPK (W) |
Maximum Reverse Leakage IR (uA) |
Breakdown Voltage Min VBR(V) |
Breakdown Voltage Max VBR(V) |
Junction Temperature Tj [max] (°C) |
VESDIEC61000-4-2 Air/Contact (kV) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CSPSBSLC24VLB | 1 | Bidirectional | 24 | 5 | 8 | 0.7 | 40 | 0.2 | 6 | 125 | ±15 |
| Part Number CSPSBSLC24VLB | Number of Functions 1 | Configuration Bidirectional |
Reverse Standoff Voltage VRWM(V) 24 |
Peak Pulse Current IPP(A) 5 |
Max. Clamping Voltage VC (V) 8 |
Junction Capacitance CJ(pF) 0.7 |
Peak Pluse Power Dissipation PPPK (W) 40 |
Maximum Reverse Leakage IR (uA) 0.2 |
Breakdown Voltage Min VBR(V) 6 |
Breakdown Voltage Max VBR(V) |
Junction Temperature Tj [max] (°C) 125 |
VESDIEC61000-4-2 Air/Contact (kV) ±15 |
Packing Information
Download
