Zener Diodes | Status : Active

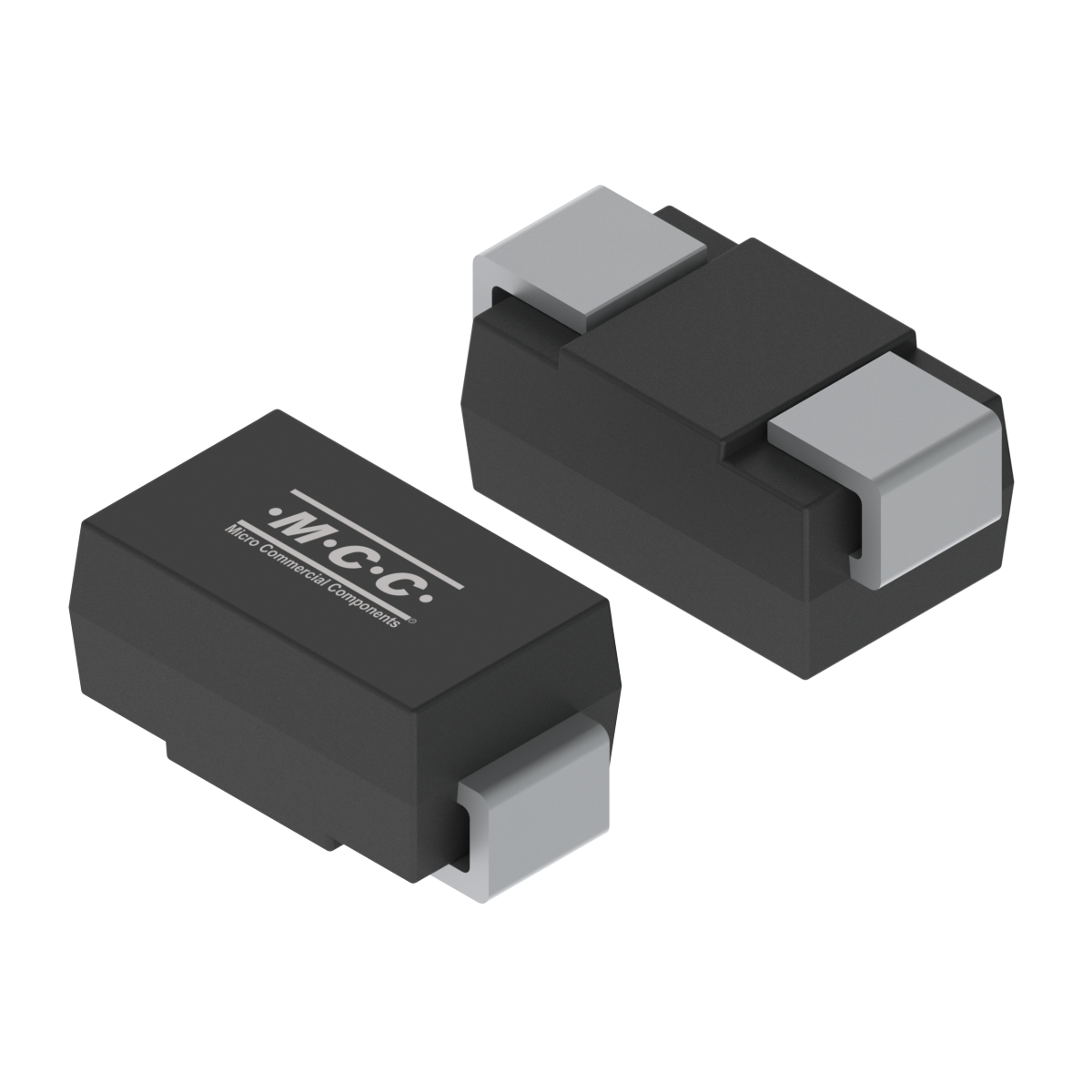

SMAZ5V6

  • Package Type:SMA
  • Packing Info:Tape: 7.5K/Reel, 120K/Ctn
  • Category:Zener Diodes
  • MPN:SMAZ5V6-TP
Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions PD(W) VZ[Nom](V) IZT(mA) IR (mA) [max]
@VR		 VR(V) ZZT(Ω)
@IZT		 ZZK(Ω)
@IZT		 IZK(mA) Tj [max]
(°C)
SMAZ5V6 Single 1 5.6 100 0.005 2 2 250 2 150
Part Number SMAZ5V6 Number of Functions Single PD(W)  1 VZ[Nom](V)  5.6 IZT(mA)  100 IR (mA) [max]
@VR  0.005 		VR(V)  2 ZZT(Ω)
@IZT  2 		ZZK(Ω)
@IZT  250 		IZK(mA)  2 Tj [max]
(°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
SMAZ5V6 SMA SMA 0.0600 Z5V6 Tape: 7.5K/Reel, 120K/Ctn;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report Halogen Free MTBF FIT
Tin Whisker Test Report Halogen Free 27479.27 4.2

ECN/PCN

ECN/PCN No# Title PDF Issued Date
041825-2 Additional Assembly & test centre PDF 04/18/2025
010925-1 Additional assembly & test centre PDF 01/09/2025
042723-2 Add New Qualified Source PDF 04/27/2023
110121-1 Additional Qualified Assembly and Test(A/T) Site. PDF 11/01/2021
010112 MCC Changes to use plastic reel for SMD Power Zener Products PDF 01/01/2012
070103 Pb(Lead) Free Plating Conversion PDF 07/01/2003
