Zener Diodes | Status : Active
Automotive

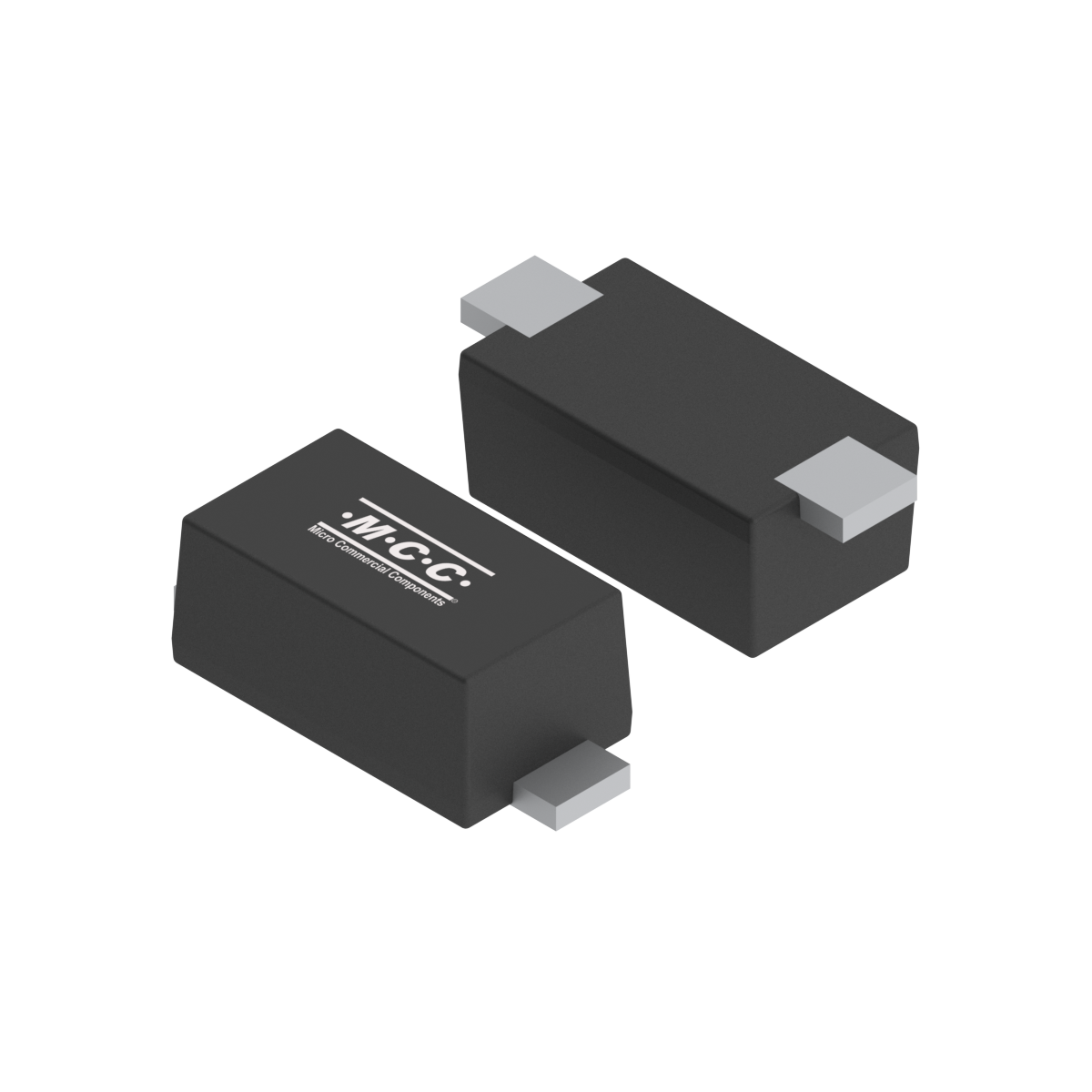

DFLZ22Q

  • Package Type:SOD-123FL
  • Packing Info:Tape&Reel: 2.5Kpcs/Reel;
  • Category:Zener Diodes
  • MPN:DFLZ22Q-TP
Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions PD(W) VZ[Nom](V) IZT(mA) IR (mA) [max]
@VR		 VR(V) ZZT(Ω)
@IZT		 ZZK(Ω)
@IZT		 IZK(mA) Tj [max]
(°C)
DFLZ22Q Single 1 22 11.5 0.005 16.7 23 750 0.25 175
Part Number DFLZ22Q Number of Functions Single PD(W)  1 VZ[Nom](V)  22 IZT(mA)  11.5 IR (mA) [max]
@VR  0.005 		VR(V)  16.7 ZZT(Ω)
@IZT  23 		ZZK(Ω)
@IZT  750 		IZK(mA)  0.25 Tj [max]
(°C)  175

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
DFLZ22Q SOD-123FL SOD-123FL 0.0180 Z22 Tape&Reel: 2.5Kpcs/Reel;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report Halogen Free MTBF FIT
Tin Whisker Test Report Halogen Free 0.00 0.0
