Zener Diodes | Status : Active
Automotive

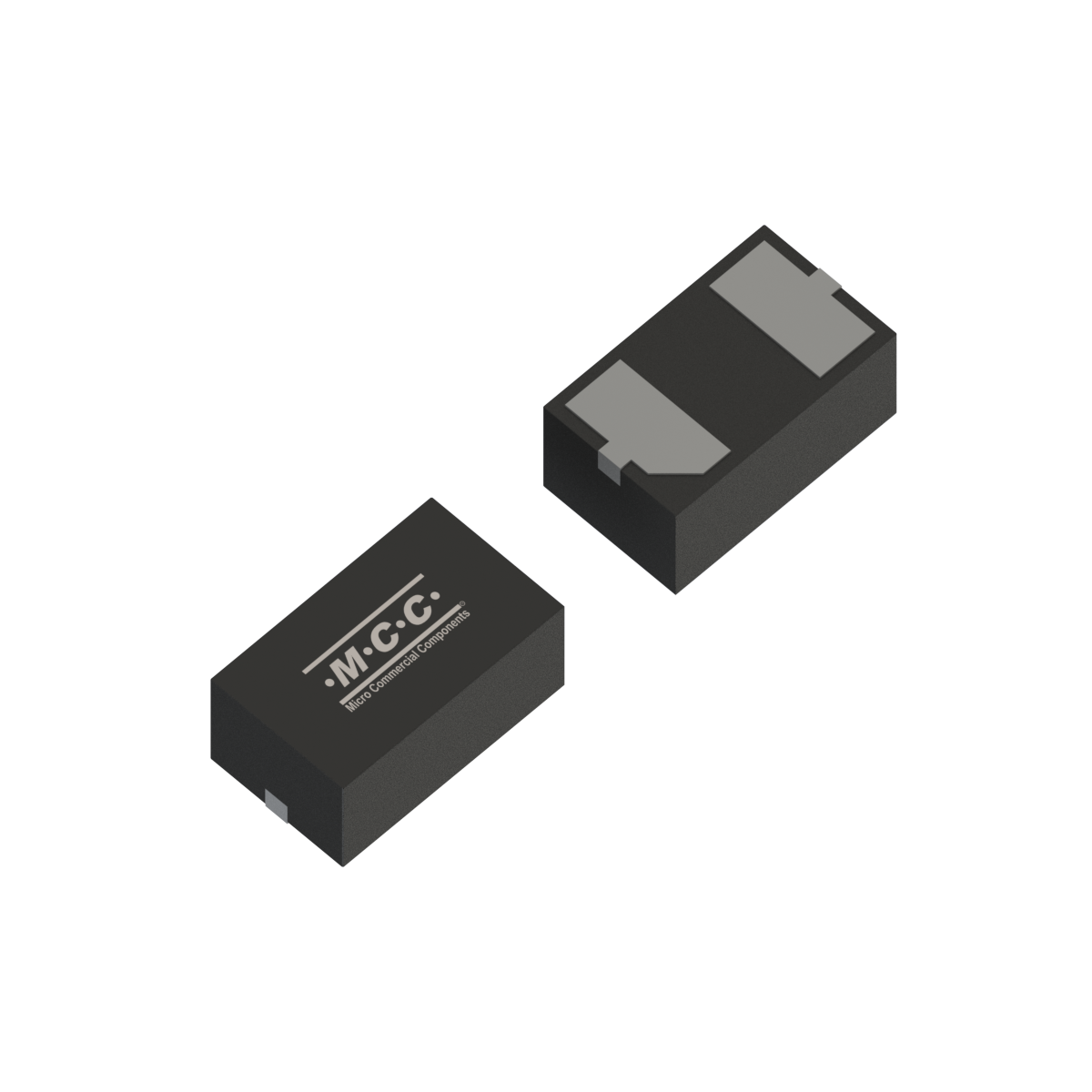

BZT52C7V5L3PHE3

  • Package Type:DFN1006-2L
  • Packing Info: Tape&Reel: 10Kpcs/Reel;
  • Category:Zener Diodes
Check Stock Add To Cart
Datasheet ECAD Model

Product Detail

Part Number Number of Functions PD(W) VZ[Nom](V) IZT(mA) IR (mA) [max]
@VR		 VR(V) ZZT(Ω)
@IZT		 ZZK(Ω)
@IZT		 IZK(mA) Tj [max]
(°C)
BZT52C7V5L3PHE3 Single 0.15 7.5 5 0.001 5 15 80 1 150
Part Number BZT52C7V5L3PHE3 Number of Functions Single PD(W)  0.15 VZ[Nom](V)  7.5 IZT(mA)  5 IR (mA) [max]
@VR  0.001 		VR(V)  5 ZZT(Ω)
@IZT  15 		ZZK(Ω)
@IZT  80 		IZK(mA)  1 Tj [max]
(°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
BZT52C7V5L3PHE3 DFN1006-2L DFN1006-2L 0.0010 9D Tape&Reel: 10Kpcs/Reel;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Halogen Free
Halogen Free
