Zener Diodes | Status : Active
Automotive

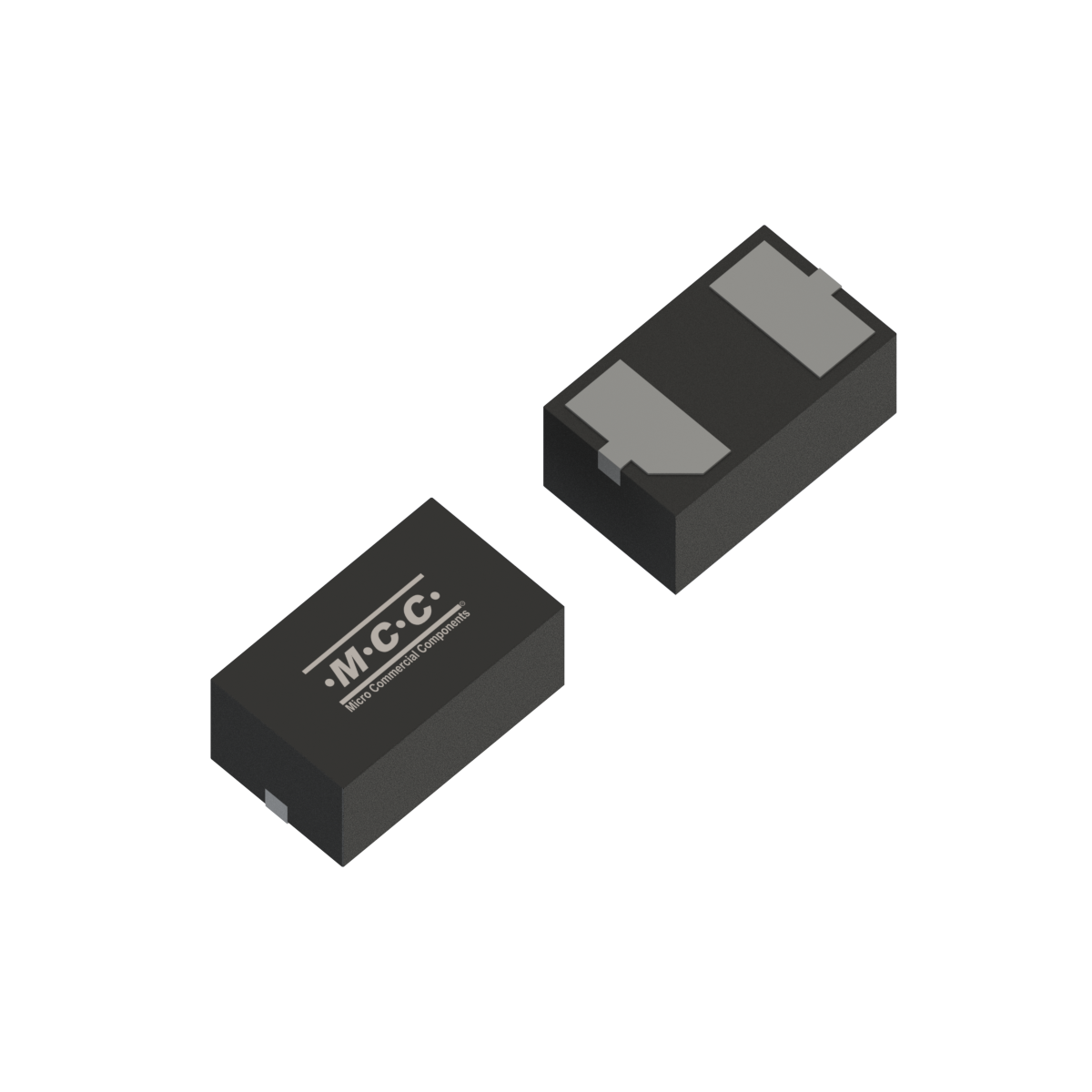

BZT52C39L3PHE3

  • Package Type:DFN1006-2L
  • Packing Info: Tape&Reel: 10Kpcs/Reel;
  • Category:Zener Diodes
Check Stock Add To Cart
Datasheet ECAD Model

Product Detail

Part Number Number of Functions PD(W) VZ[Nom](V) IZT(mA) IR (mA) [max]
@VR		 VR(V) ZZT(Ω)
@IZT		 ZZK(Ω)
@IZT		 IZK(mA) Tj [max]
(°C)
BZT52C39L3PHE3 Single 0.15 39 2 0.0001 27.3 130 350 0.5 150
Part Number BZT52C39L3PHE3 Number of Functions Single PD(W)  0.15 VZ[Nom](V)  39 IZT(mA)  2 IR (mA) [max]
@VR  0.0001 		VR(V)  27.3 ZZT(Ω)
@IZT  130 		ZZK(Ω)
@IZT  350 		IZK(mA)  0.5 Tj [max]
(°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
BZT52C39L3PHE3 DFN1006-2L DFN1006-2L 0.0010 9X Tape&Reel: 10Kpcs/Reel;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Halogen Free
Halogen Free

Similar Recommendations

Part Number Category Package Type Status Datasheet
MMBZ5259B ZENER DIODES SOT-23 Active Datasheet
MMXZ5259B ZENER DIODES SOD-323 Active Datasheet
MMSZ5259B ZENER DIODES SOD-123 Active Datasheet
BZX84C39 ZENER DIODES SOT-23 Active Datasheet
