Zener Diodes | Status : Active
Automotive

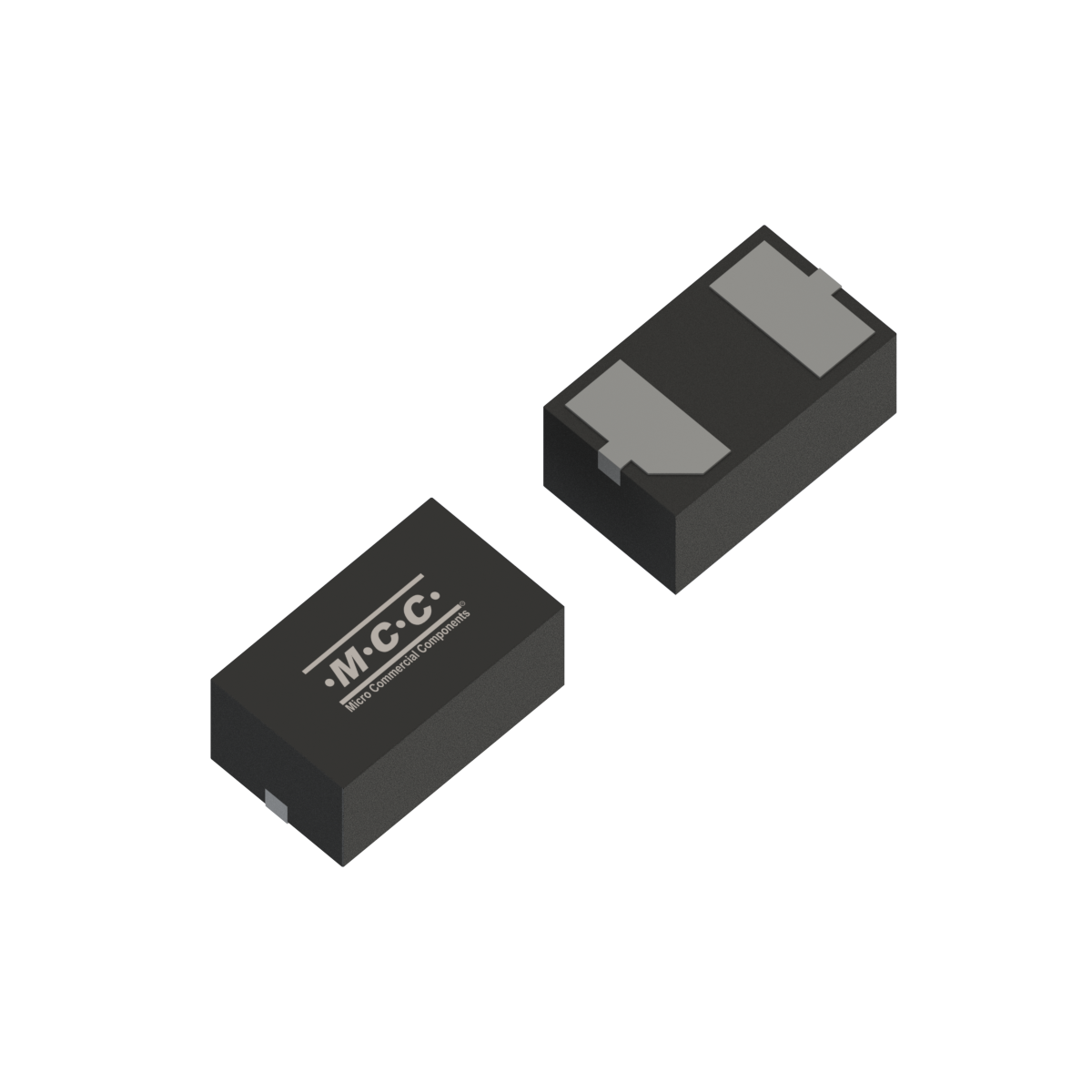

BZT52C2V4L3PHE3

  • Package Type:DFN1006-2L
  • Packing Info: Tape&Reel: 10Kpcs/Reel;
  • Category:Zener Diodes
Check Stock Add To Cart
Datasheet ECAD Model

Product Detail

Part Number Number of Functions PD(W) VZ[Nom](V) IZT(mA) IR (mA) [max]
@VR		 VR(V) ZZT(Ω)
@IZT		 ZZK(Ω)
@IZT		 IZK(mA) Tj [max]
(°C)
BZT52C2V4L3PHE3 Single 0.15 2.4 5 0.05 1 100 600 1 150
Part Number BZT52C2V4L3PHE3 Number of Functions Single PD(W)  0.15 VZ[Nom](V)  2.4 IZT(mA)  5 IR (mA) [max]
@VR  0.05 		VR(V)  1 ZZT(Ω)
@IZT  100 		ZZK(Ω)
@IZT  600 		IZK(mA)  1 Tj [max]
(°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
BZT52C2V4L3PHE3 DFN1006-2L DFN1006-2L 0.0010 WX Tape&Reel: 10Kpcs/Reel;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Halogen Free
Halogen Free
