Zener Diodes | Status : Active

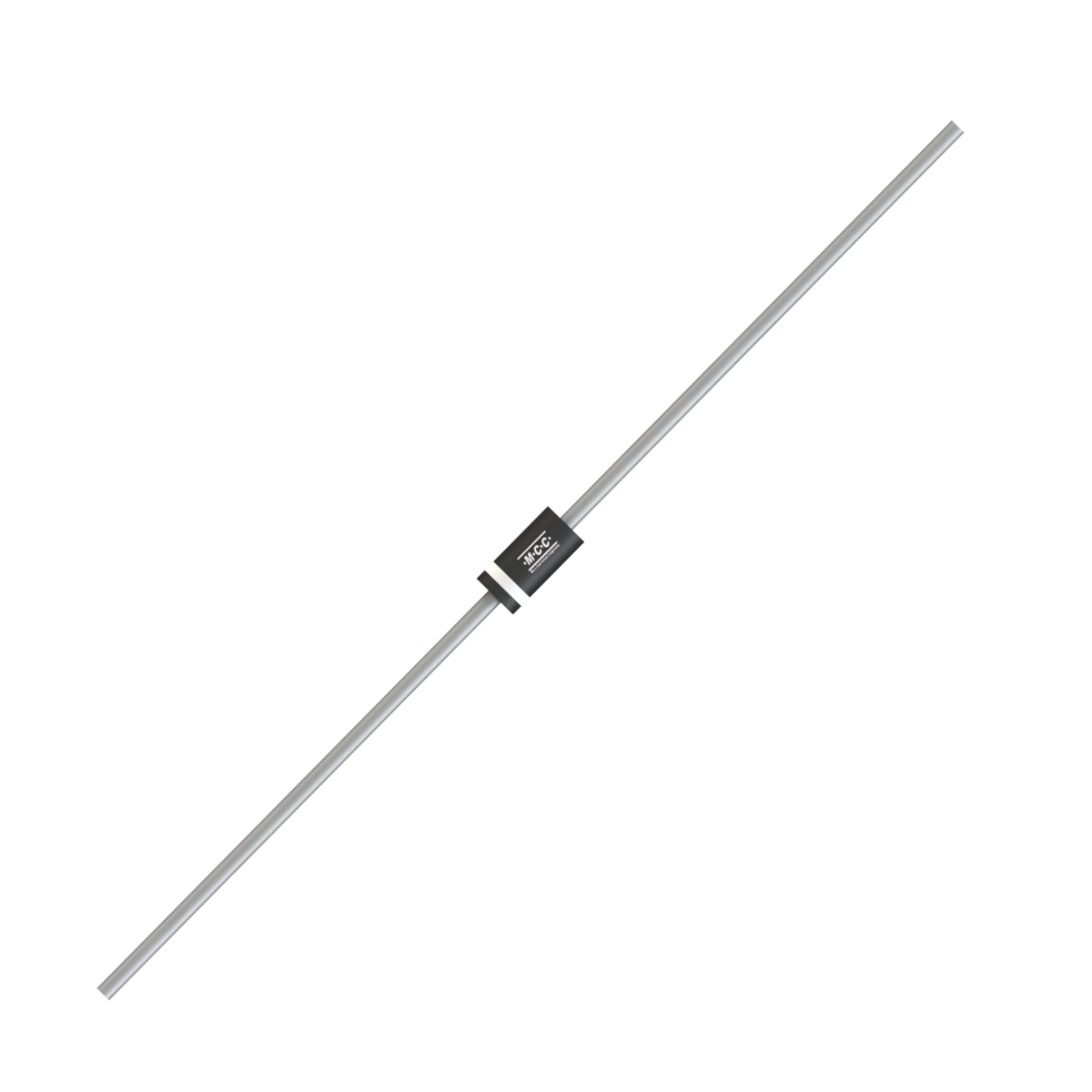

1N5941BP

  • Package Type:DO-41
  • Packing Info:Tape : 5K/Reel, 20K/Ctn; Bulk: 1K/Box, 50K/Ctn; T/B: 5K/Ammo Box, 50K/Ctn.;
  • Category:Zener Diodes
  • MPN:1N5941BP-TP
Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions PD(W) VZ[Nom](V) IZT(mA) IR (mA) [max]
@VR		 VR(V) ZZT(Ω)
@IZT		 ZZK(Ω)
@IZT		 IZK(mA) Tj [max]
(°C)
1N5941BP Single 1.5 47 8 0.001 35.8 67 1000 0.25 175
Part Number 1N5941BP Number of Functions Single PD(W)  1.5 VZ[Nom](V)  47 IZT(mA)  8 IR (mA) [max]
@VR  0.001 		VR(V)  35.8 ZZT(Ω)
@IZT  67 		ZZK(Ω)
@IZT  1000 		IZK(mA)  0.25 Tj [max]
(°C)  175

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
1N5941BP DO-41 DO-41 0.3300 1N5941BP Tape : 5K/Reel, 20K/Ctn;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report MTBF FIT
Tin Whisker Test Report 80246.89 1.4

ECN/PCN

ECN/PCN No# Title PDF Issued Date
090111 MCC developed a new silicon wafer fab source for zeners PDF 09/01/2011
070103 Pb(Lead) Free Plating Conversion PDF 07/01/2003
