Switching Diodes | Status : Active
Automotive

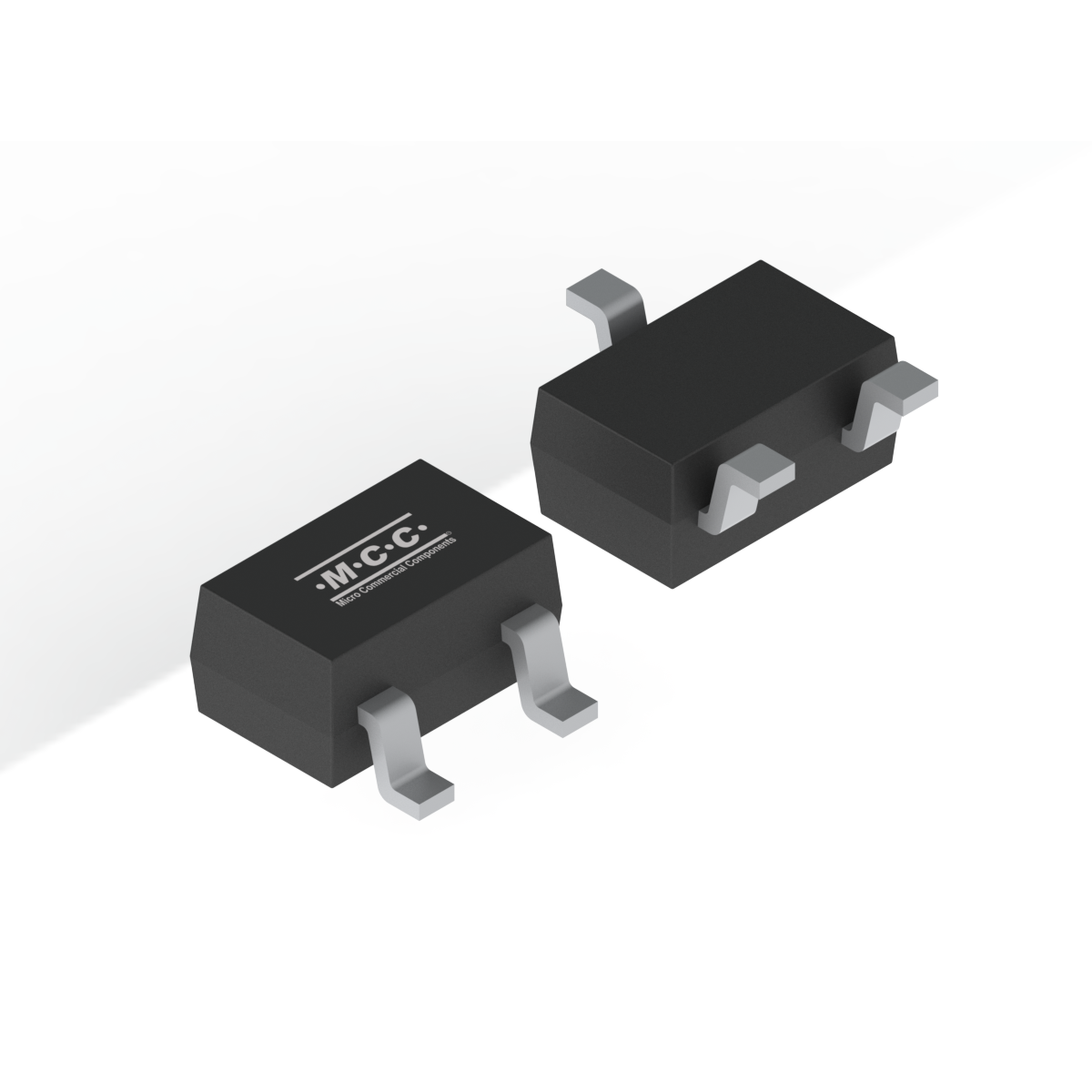

BAV23SWTHE3

  • Package Type:SOT-323
  • Packing Info:Tape:3K/Reel,120K/Ctn
  • Category:Switching Diodes
  • MPN:BAV23SWTHE3-TP
Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions Configuration IF(AV)(A) VRWM(V) VF
(V) [max]@IF(A)		 IR(uA) [max] @
VR		 TRR (μs) VR (V) IF(A) PD (mW) Tj [max] (°C)
BAV23SWTHE3 Dual Series 0.225 250 1 0.1 0.05 250 0.1 200 150
Part Number BAV23SWTHE3 Number of Functions Dual Configuration Series IF(AV)(A)  0.225 VRWM(V)  250 VF
(V) [max]@IF(A)  1 		IR(uA) [max] @
VR  0.1 		TRR (μs)  0.05 VR (V)  250 IF(A)  0.1 PD (mW)  200 Tj [max] (°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
BAV23SWTHE3 SOT-323 SOT-323 0.0050 KL31. Tape:3K/Reel,120K/Ctn;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report Halogen Free MTBF FIT
Tin Whisker Test Report Halogen Free 9992.46 11.4
