Switching Diodes | Status : Active

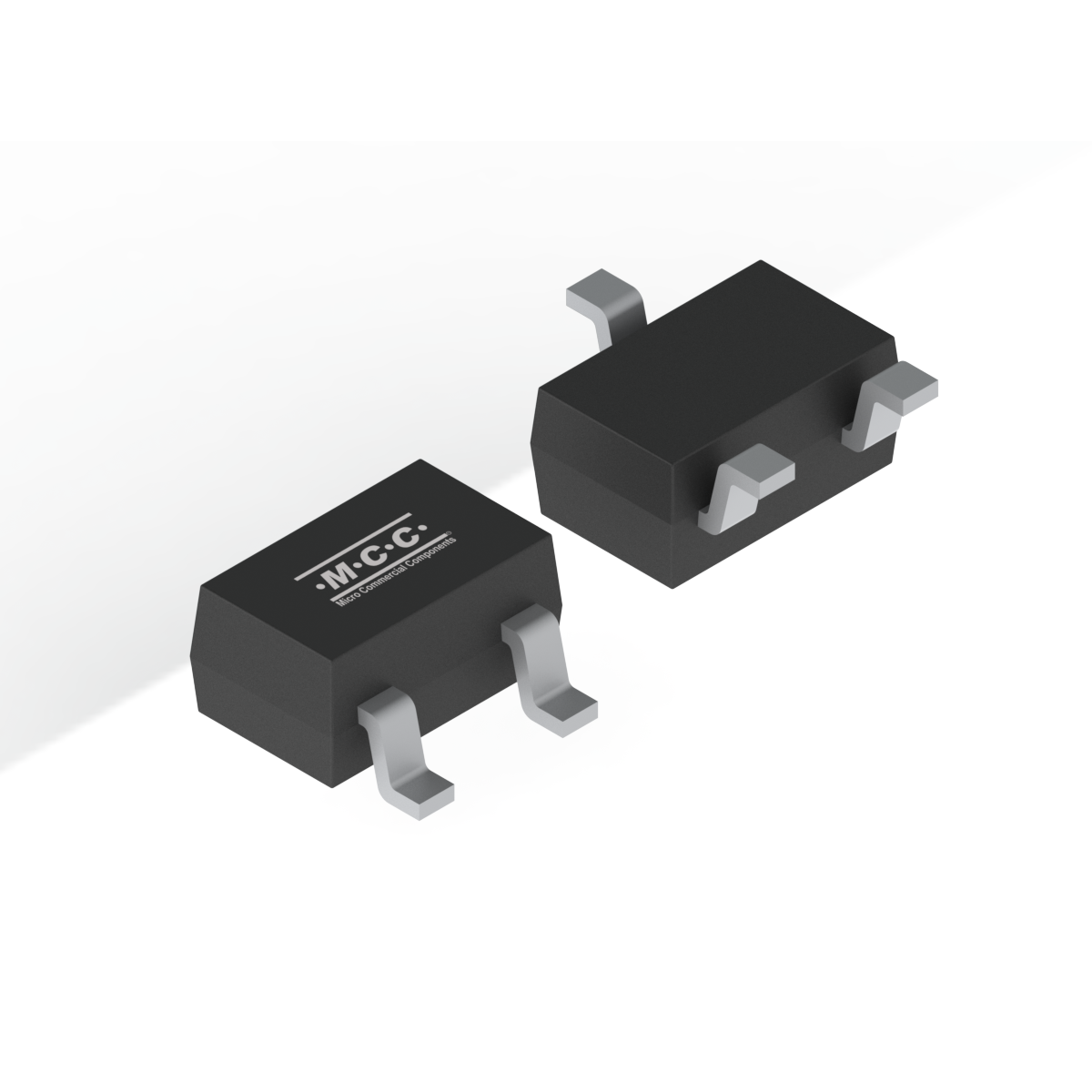

BAV199WT

  • Package Type:SOT-323
  • Packing Info:Tape : 3K/Reel, 120K/Ctn;
  • Category:Switching Diodes
  • MPN:BAV199WT-TP
Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions Configuration IF(AV)(A) VRWM(V) VF
(V) [max]@IF(A)		 IR(uA) [max] @
VR		 TRR (μs) VR (V) IF(A) PD (mW) Tj [max] (°C)
BAV199WT Dual Series 0.16 85 1 0.005 3 85 0.01 200 150
Part Number BAV199WT Number of Functions Dual Configuration Series IF(AV)(A)  0.16 VRWM(V)  85 VF
(V) [max]@IF(A)  1 		IR(uA) [max] @
VR  0.005 		TRR (μs)  3 VR (V)  85 IF(A)  0.01 PD (mW)  200 Tj [max] (°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
BAV199WT SOT-323 SOT-323 0.0050 K52 Tape : 3K/Reel, 120K/Ctn;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report Halogen Free MTBF FIT
Tin Whisker Test Report Halogen Free 27479.27 4.2
