Switching Diodes | Status : Active

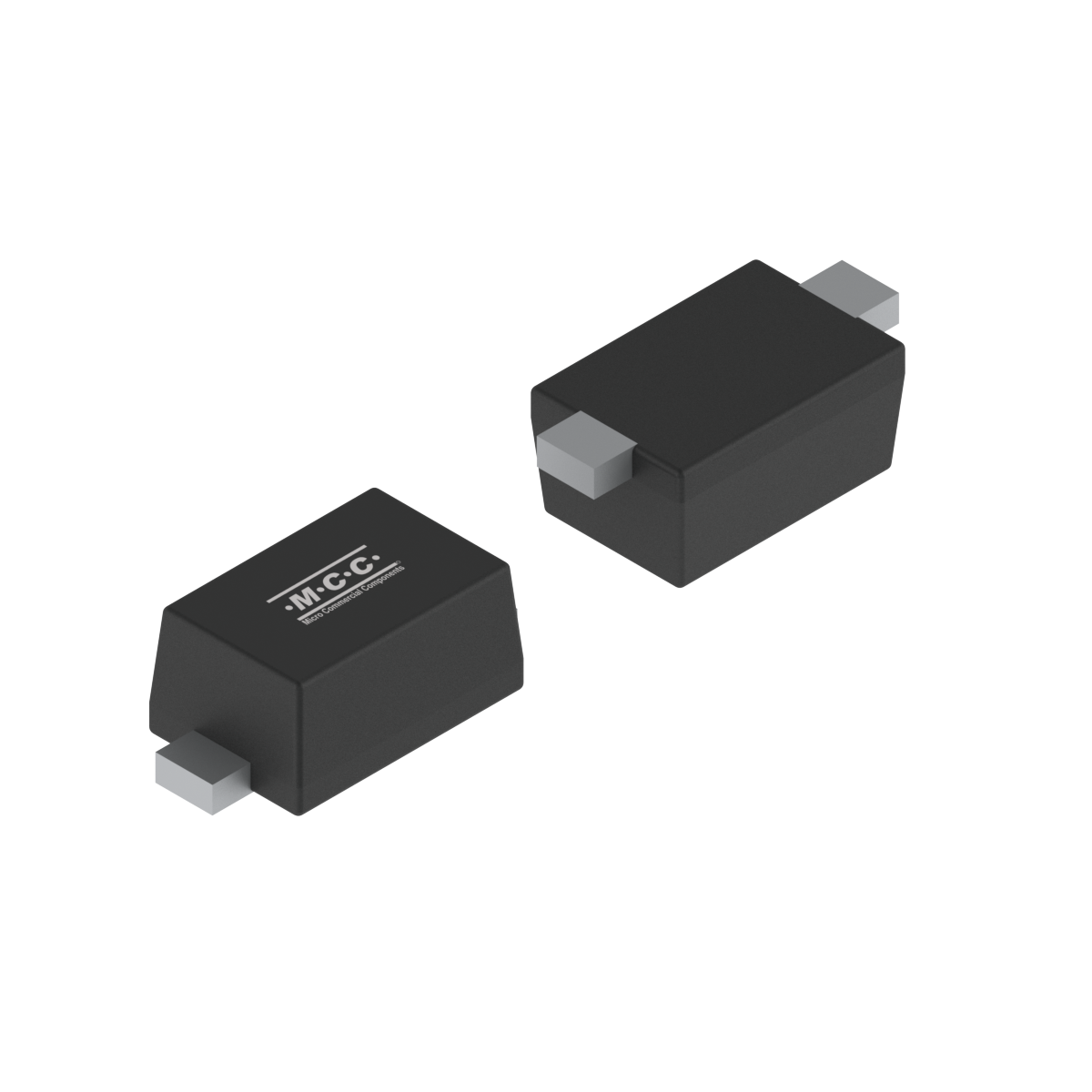

BAS516

  • Package Type:SOD-523
  • Packing Info:Tape : 8K/Reel,320K/Ctn;
  • Category:Switching Diodes
  • MPN:BAS516-TP, BAS516-T3P
Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions IF(AV)(A) VRWM(V) VF
(V) [max]@IF(A)		 IR(uA) [max] @
VR		 TRR (μs) VR (V) IF(A) PD (mW) Tj [max] (°C)
BAS516 Single 0.25 100 0.715 0.03 0.004 25 0.001 150 150
Part Number BAS516 Number of Functions Single IF(AV)(A)  0.25 VRWM(V)  100 VF
(V) [max]@IF(A)  0.715 		IR(uA) [max] @
VR  0.03 		TRR (μs)  0.004 VR (V)  25 IF(A)  0.001 PD (mW)  150 Tj [max] (°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
BAS516 SOD-523 SOD-523 0.0013 61 Tape : 8K/Reel,320K/Ctn;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Halogen Free MTBF FIT
Halogen Free 17486.81 6.5

ECN/PCN

ECN/PCN No# Title PDF Issued Date
022312 SOD-523 Package Reel Q'ty Update PDF 02/13/2012
080111 Remove the plastic ziploc bag of the reel for SOT&SOD Packages PCN#080111 PDF 08/15/2011
070103 Pb(Lead) Free Plating Conversion PDF 07/01/2003
