Switching Diodes | Status :
Active

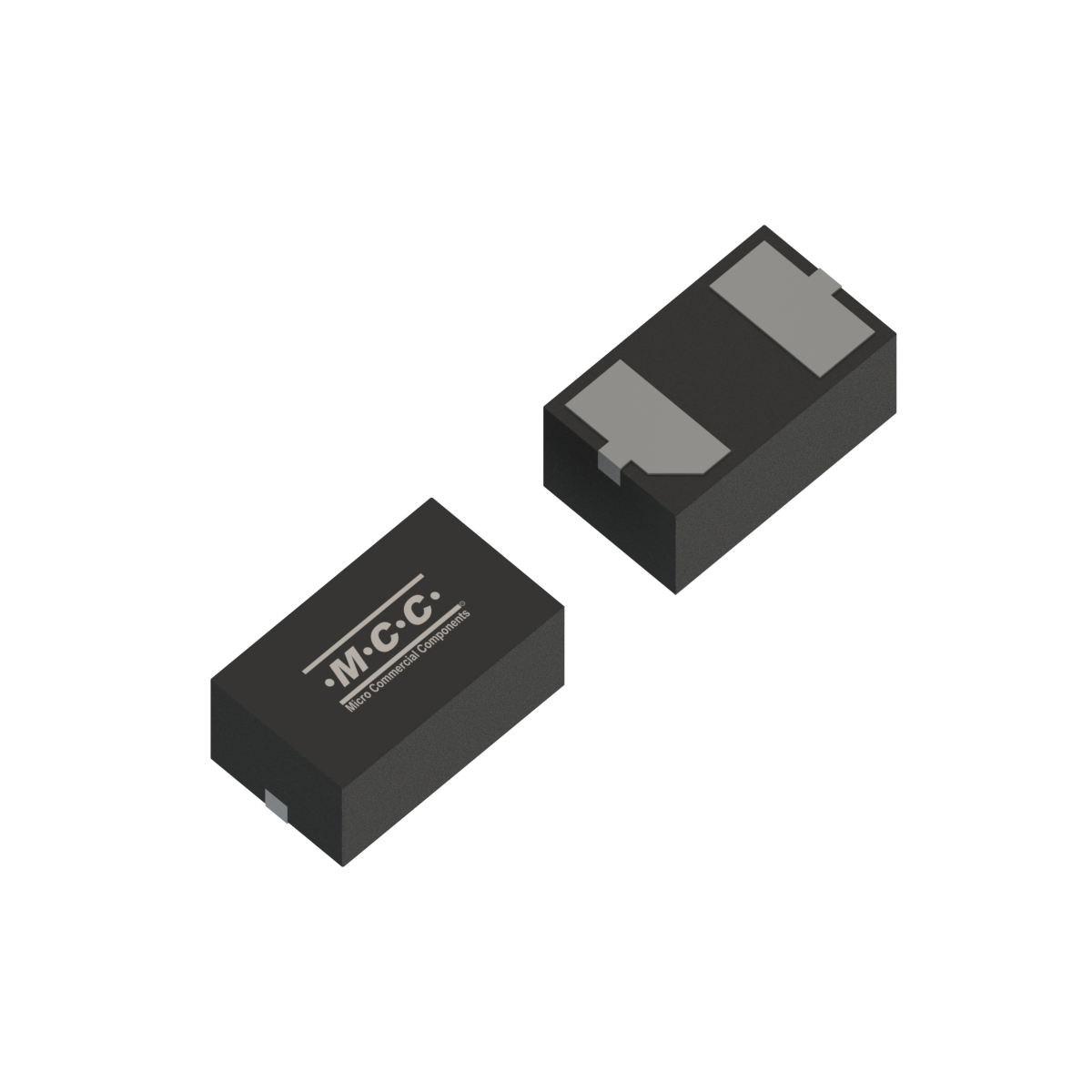

BAS116L2B
- Package Type:DFN1006-2L
- Packing Info:Tape&Reel;
- Category:Switching Diodes
- MPN:BAS116L2B-TP
Product Detail
| Part Number | Number of Functions | IF(AV)(A) | VRWM(V) | VF (V) [max]@IF(A) |
IR(uA) [max] @ VR |
TRR (μs) | VR (V) | IF(A) | PD (mW) | Tj [max] (°C) |
|---|---|---|---|---|---|---|---|---|---|---|
| BAS116L2B | Single | 0.215 | 85 | 1.25 | 0.005 | 3 | 75 | 0.15 | 300 | 150 |
| Part Number BAS116L2B | Number of Functions Single | IF(AV)(A) 0.215 | VRWM(V) 85 |
VF (V) [max]@IF(A) 1.25 |
IR(uA) [max] @ VR 0.005 |
TRR (μs) 3 | VR (V) 75 | IF(A) 0.15 | PD (mW) 300 | Tj [max] (°C) 150 |
Packing Information
| Part Number | Package Type | Packing Specification | Component Weight (g) | Marking Code | Packing Info |
|---|---|---|---|---|---|
| BAS116L2B | DFN1006-2L | DFN1006-2L | 0.0010 | BV | Tape&Reel; |
Environmental Information
Download
| MSL | Halogen Free | MTBF | FIT |
|---|---|---|---|
| 1 |
|
14988.69 | 7.6 |
