Super Fast Recovery Rectifiers | Status : Preferred

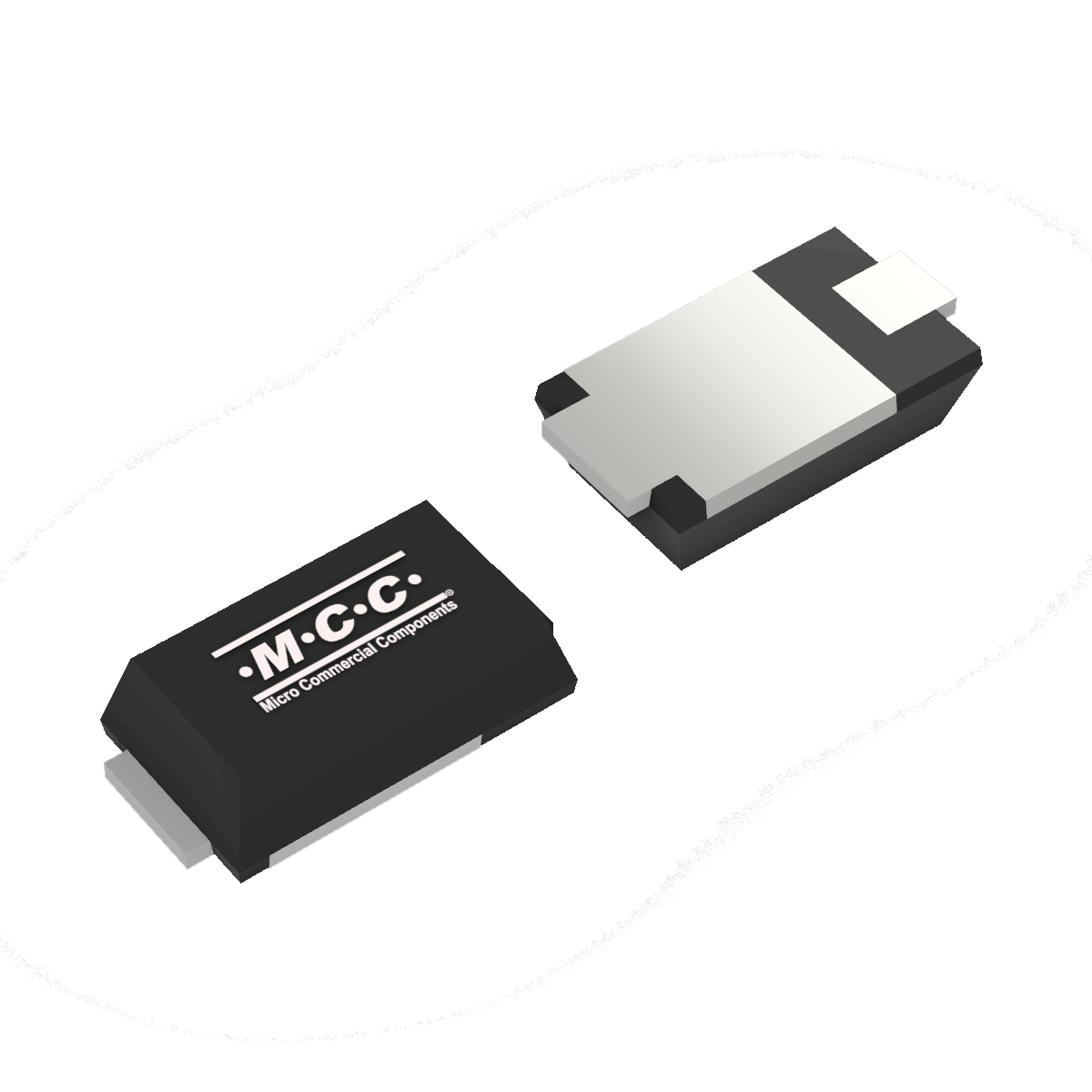

UG2DHL

Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA)  [max] @
VR		 TRR (μs) IFSM (A) IF(A) VR (V) Tj [max]
(°C)
UG2DHL Single 2 200 0.92 5 0.025 50 2 200 150
Part Number UG2DHL Number of Functions Single IF(AV)(A)  2 VRWM (V)  200 VF
(V) [max]@IF(A)  0.92 		IR (uA)  [max] @
VR  5 		TRR (μs)  0.025 IFSM (A)  50 IF(A)  2 VR (V)  200 Tj [max]
(°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
UG2DHL SOD-123HL SOD-123HL 0.0169 UG2D Tape&Reel: 2.5Kpcs/Reel;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
MSL Halogen Free MTBF FIT
1 Halogen Free 0.00 0.0
