Super Fast Recovery Rectifiers | Status : Active

UFM17PL

Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA)  [max] @
VR		 TRR (μs) IFSM (A) IF(A) VR (V) Tj [max]
(°C)
UFM17PL Single 1 1000 1.7 5 0.075 30 1 1000 150
Part Number UFM17PL Number of Functions Single IF(AV)(A)  1 VRWM (V)  1000 VF
(V) [max]@IF(A)  1.7 		IR (uA)  [max] @
VR  5 		TRR (μs)  0.075 IFSM (A)  30 IF(A)  1 VR (V)  1000 Tj [max]
(°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info

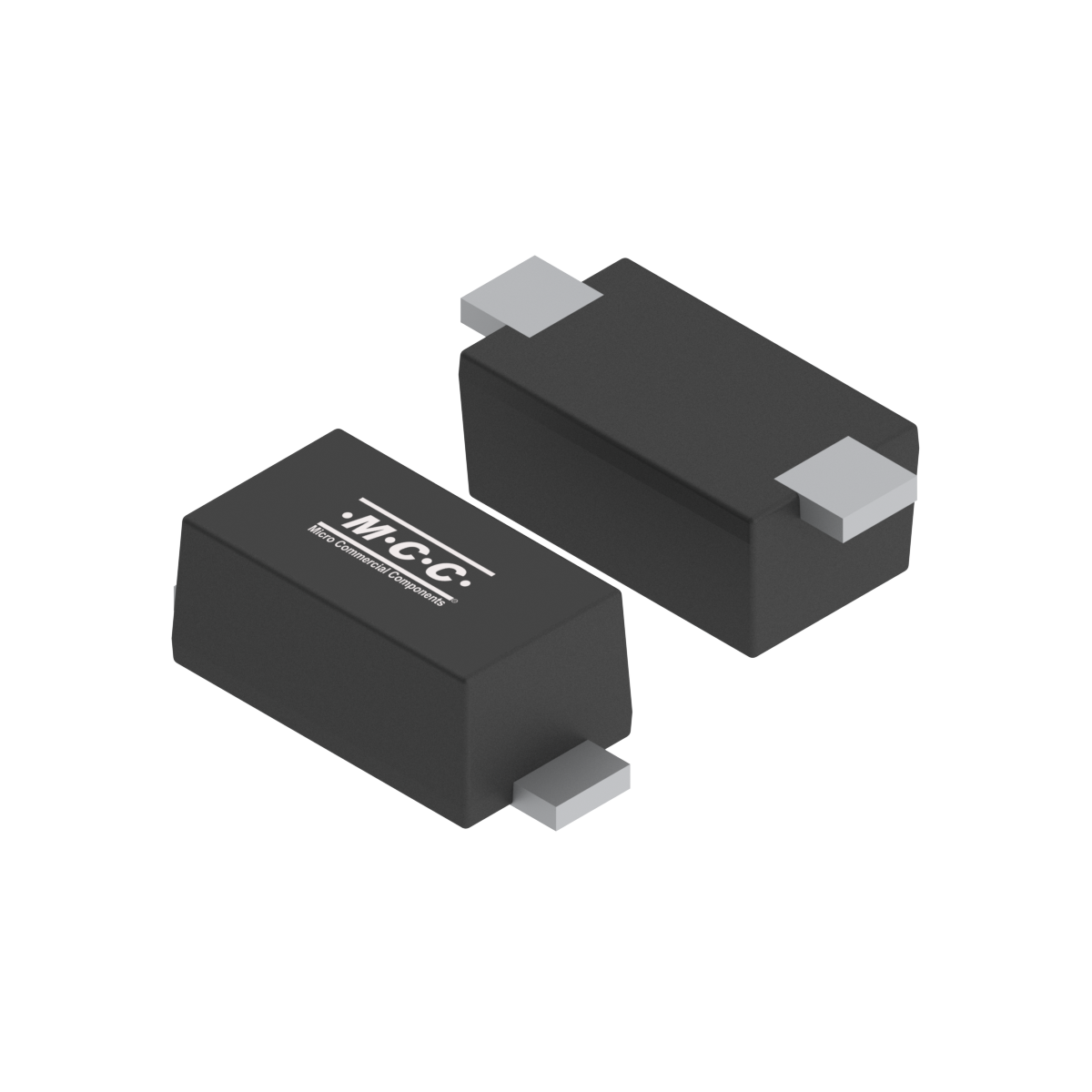

UFM17PL SOD-123FL SOD-123FL 0.0180 U7 Tape&Reel: 2.5Kpcs/Reel;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report MSL Halogen Free MTBF FIT
Tin Whisker Test Report 1 Halogen Free 22483.04 5.1

ECN/PCN

ECN/PCN No# Title PDF Issued Date
010925-1 Additional assembly & test centre PDF 01/09/2025
080115-1 MCC Introduces Auto-Soldering Process For SOD-123FL Package PDF 08/01/2015
092009 "Powerlite-123" Package Type Name Revise PDF 01/01/2010
070103 Pb(Lead) Free Plating Conversion PDF 07/01/2003
