Super Fast Recovery Rectifiers | Status : Active

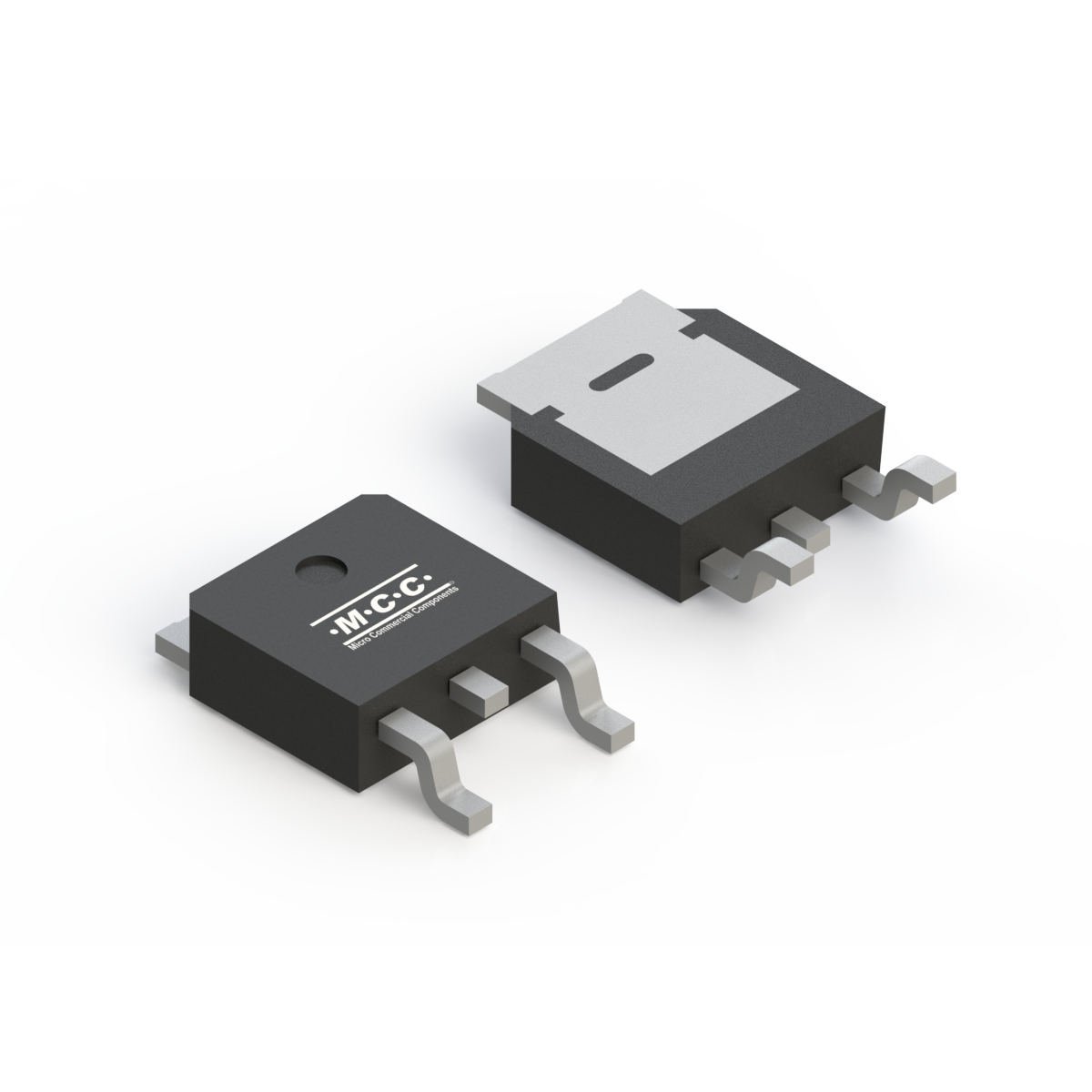

MURSD860B

Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA)  [max] @
VR		 TRR (μs) IFSM (A) IF(A) VR (V) Tj [max]
(°C)
MURSD860B Single 8 600 3.6 10 0.04 70 8 600 150
Part Number MURSD860B Number of Functions Single IF(AV)(A)  8 VRWM (V)  600 VF
(V) [max]@IF(A)  3.6 		IR (uA)  [max] @
VR  10 		TRR (μs)  0.04 IFSM (A)  70 IF(A)  8 VR (V)  600 Tj [max]
(°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
MURSD860B DPAK DPAK 0.3252 MURSD860B Tape&Reel: 2.5Kpcs/Reel;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
MSL Halogen Free MTBF FIT
1 Halogen Free 7494.35 15.2
