Super Fast Recovery Rectifiers | Status : Active

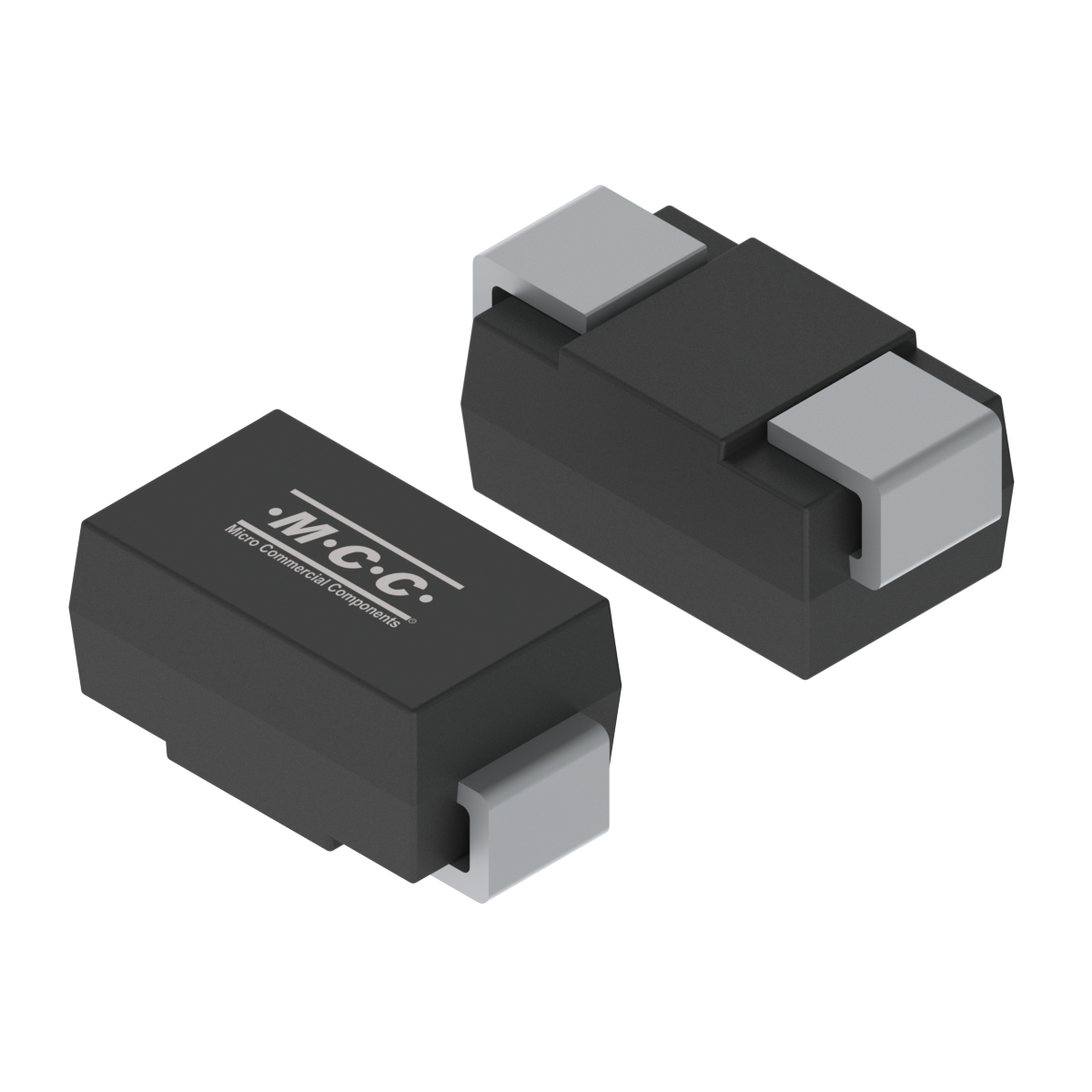

ES1D-L

Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA)  [max] @
VR		 TRR (μs) IFSM (A) IF(A) VR (V) Tj [max]
(°C)
ES1D-L Single 1 200 0.95 1 0.035 30 1 200 175
Part Number ES1D-L Number of Functions Single IF(AV)(A)  1 VRWM (V)  200 VF
(V) [max]@IF(A)  0.95 		IR (uA)  [max] @
VR  1 		TRR (μs)  0.035 IFSM (A)  30 IF(A)  1 VR (V)  200 Tj [max]
(°C)  175

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
ES1D-L SMA SMA 0.0600 ES1D Tape: 5K/Reel, 80K/Ctn;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report MSL Halogen Free MTBF FIT
Tin Whisker Test Report 1 Halogen Free 17486.81 6.5
