Standard Recovery Rectifiers | Status :
Active
Automotive

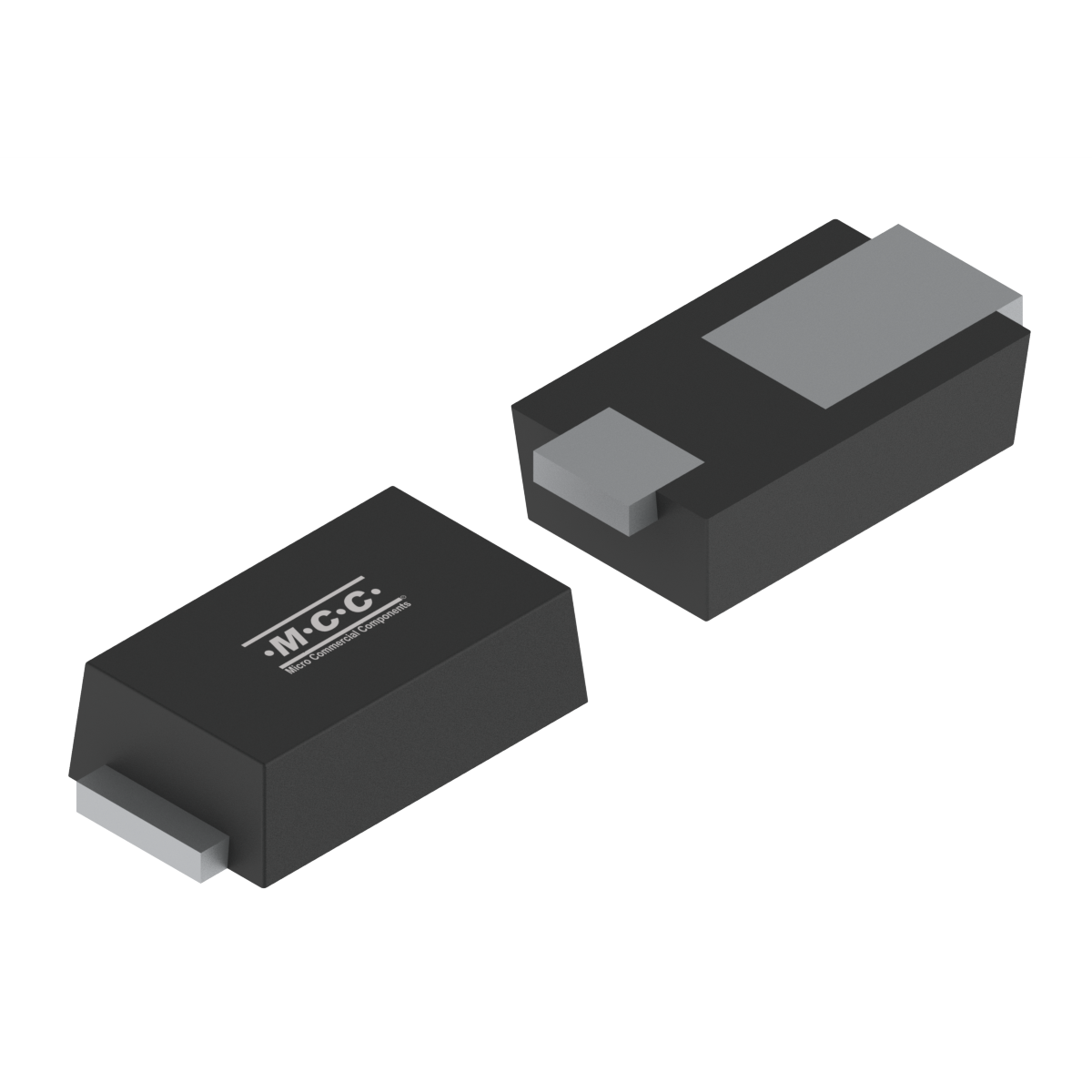

GS1JPBQ
- Package Type:SOD-323HE-B
- Packing Info:Tape&Reel: 2.5Kpcs/Reel;
- Category:Standard Recovery Rectifiers
- MPN:GS1JPBQ-TP
Product Detail
| Part Number | Number of Functions | IF(AV)(A) | VRWM (V) | VF (V) [max]@IF(A) |
IR (uA) [max] @ VR |
TRR (μs) | IFSM (A) | IF(A) | VR (V) | Tj [max] (°C) |
|---|---|---|---|---|---|---|---|---|---|---|
| GS1JPBQ | Single | 1 | 600 | 1.15 | 5 | 18 | 1 | 600 | 175 |
| Part Number GS1JPBQ | Number of Functions Single | IF(AV)(A) 1 | VRWM (V) 600 |
VF (V) [max]@IF(A) 1.15 |
IR (uA) [max] @ VR 5 |
TRR (μs) | IFSM (A) 18 | IF(A) 1 | VR (V) 600 |
Tj [max] (°C) 175 |
Packing Information
| Part Number | Package Type | Packing Specification | Component Weight (g) | Marking Code | Packing Info |
|---|---|---|---|---|---|
| GS1JPBQ | SOD-323HE-B | SOD-323HE-B | 0.0040 | 1J | Tape&Reel: 2.5Kpcs/Reel; |
Environmental Information
Download
| MSL | Halogen Free | MTBF | FIT |
|---|---|---|---|
| 1 |
|
0.00 | 0.0 |
