Small Signal Schottky Diodes | Status : Active

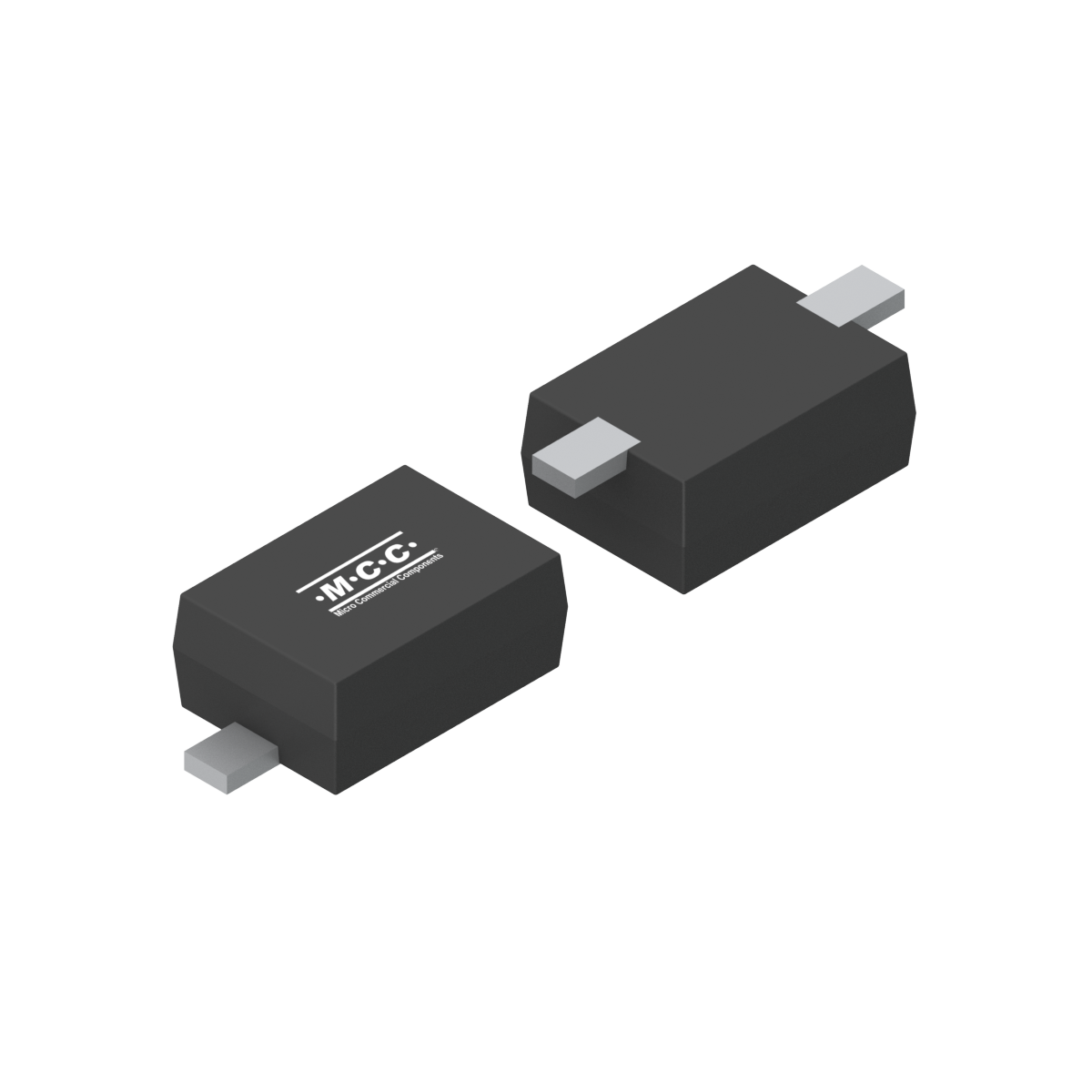

SD103CWSL

Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA) [max] @
VR		 VR (V) IF(A) Tj [max] (°C)
SD103CWSL Single 0.35 20 0.37 5 10 0.02 125
Part Number SD103CWSL Number of Functions Single IF(AV)(A)  0.35 VRWM (V)  20 VF
(V) [max]@IF(A)  0.37 		IR (uA) [max] @
VR  5 		VR (V)  10 IF(A)  0.02 Tj [max] (°C)  125

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
SD103CWSL SOD-323FL SOD-323FL 0.0034 CC Tape&Reel: 3Kpcs/Reel;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report Halogen Free MTBF FIT
Tin Whisker Test Report Halogen Free 9992.46 11.4
