Small Signal Schottky Diodes | Status : Active

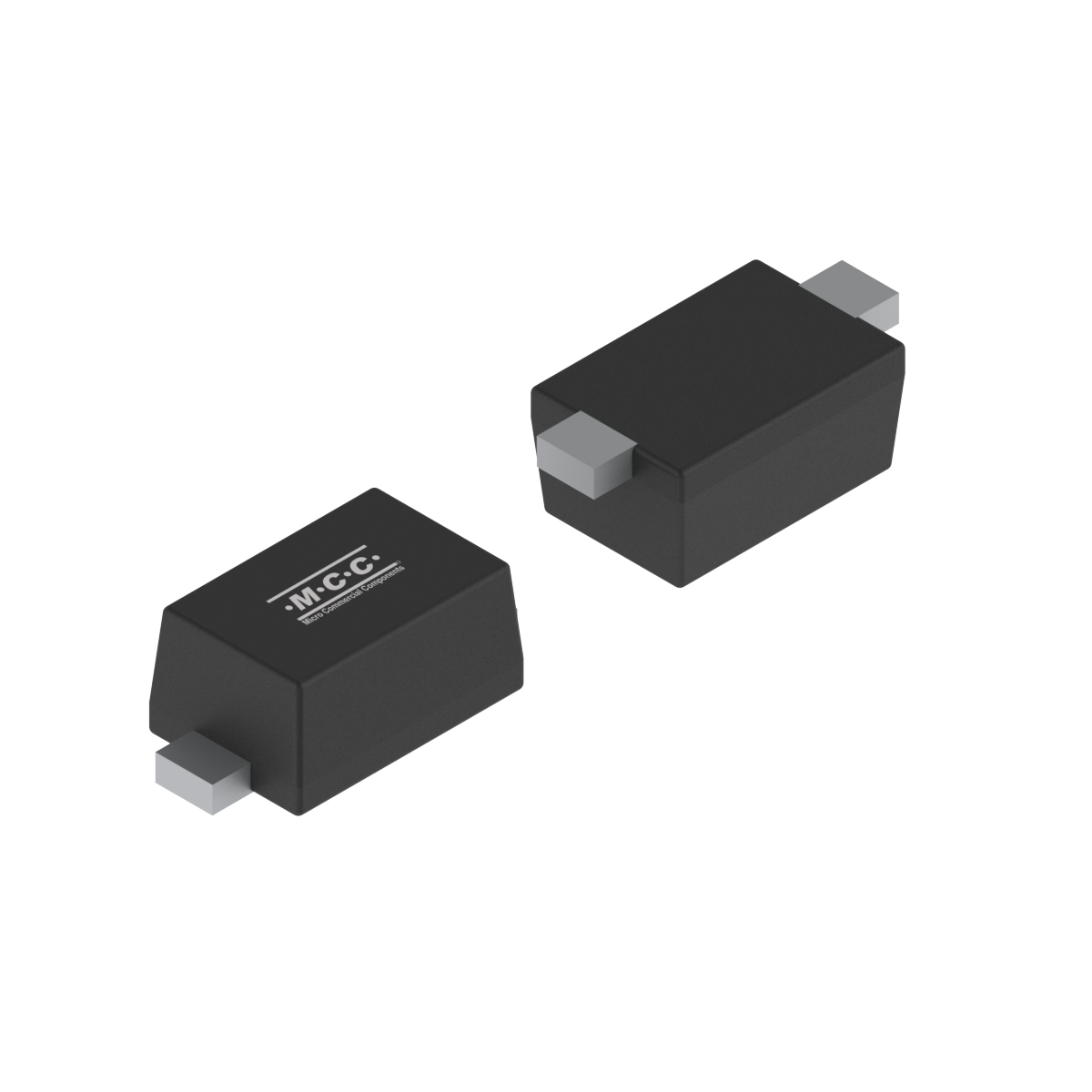

SD103AX

Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA) [max] @
VR		 VR (V) IF(A) Tj [max] (°C)
SD103AX Single 0.35 40 0.6 5 30 0.2 125
Part Number SD103AX Number of Functions Single IF(AV)(A)  0.35 VRWM (V)  40 VF
(V) [max]@IF(A)  0.6 		IR (uA) [max] @
VR  5 		VR (V)  30 IF(A)  0.2 Tj [max] (°C)  125

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
SD103AX SOD-523 SOD-523 0.0013 S4 Tape : 8K/Reel,320K/Ctn;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Halogen Free MTBF FIT
Halogen Free 27479.27 4.2

ECN/PCN

ECN/PCN No# Title PDF Issued Date
022312 SOD-523 Package Reel Q'ty Update PDF 02/13/2012
080111 Remove the plastic ziploc bag of the reel for SOT&SOD Packages PCN#080111 PDF 08/15/2011
070103 Pb(Lead) Free Plating Conversion PDF 07/01/2003
