Small Signal Schottky Diodes | Status : Active

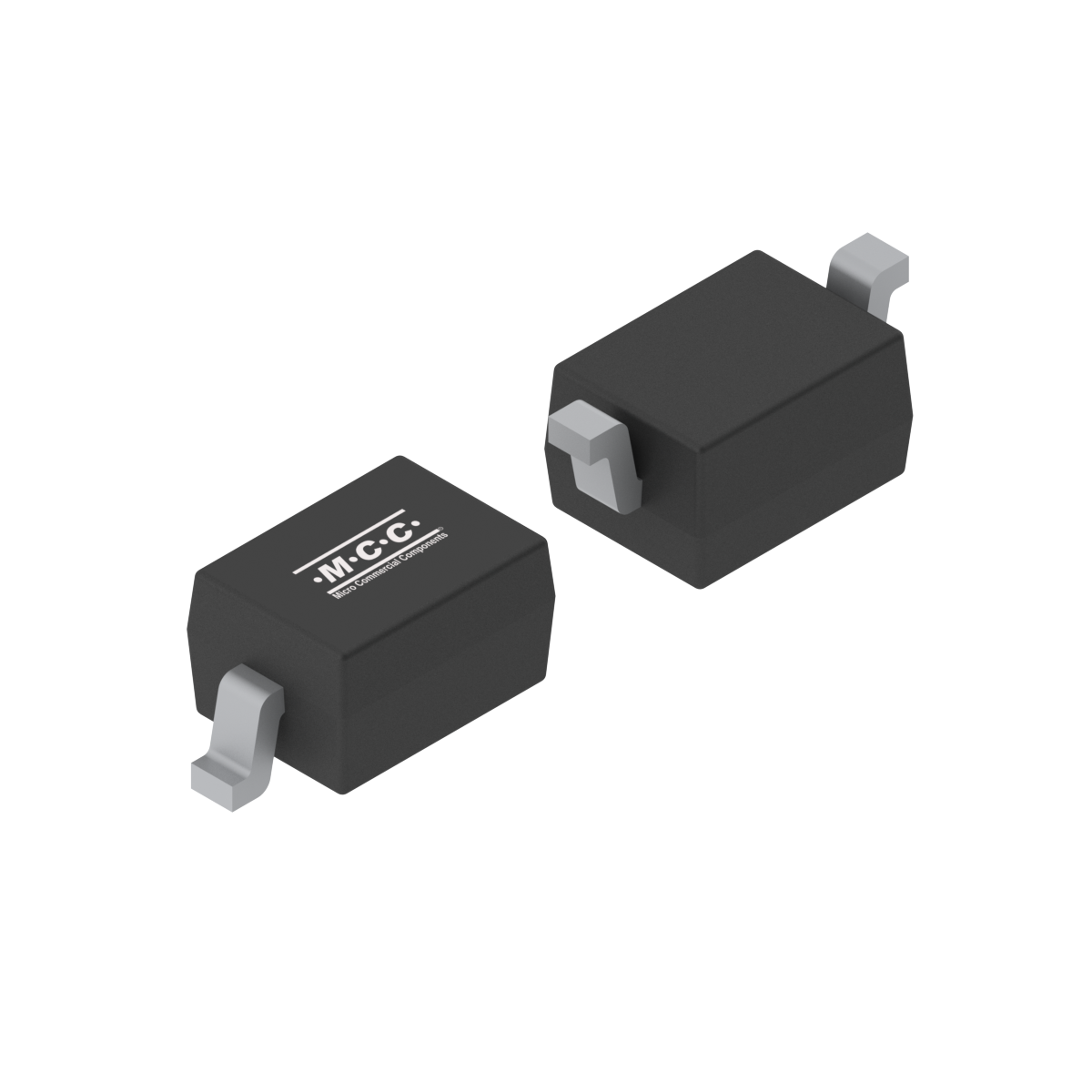

BAT54WS

Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA) [max] @
VR		 VR (V) IF(A) Tj [max] (°C)
BAT54WS Single 0.2 30 1 2 25 0.1 125
Part Number BAT54WS Number of Functions Single IF(AV)(A)  0.2 VRWM (V)  30 VF
(V) [max]@IF(A)  1 		IR (uA) [max] @
VR  2 		VR (V)  25 IF(A)  0.1 Tj [max] (°C)  125

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
BAT54WS SOD-323 SOD-323 0.0040 L9 Tape&Reel: 3Kpcs/Reel;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report Halogen Free MTBF FIT
Tin Whisker Test Report Halogen Free 27479.27 4.2

ECN/PCN

ECN/PCN No# Title PDF Issued Date
041825-1 Releasing of new MCC plant in Vietnam to support increasing production capacity PDF 04/18/2025
080111 Remove the plastic ziploc bag of the reel for SOT&SOD Packages PCN#080111 PDF 08/15/2011
070103 Pb(Lead) Free Plating Conversion PDF 07/01/2003

Similar Recommendations

Part Number Category Package Type Status Datasheet
BAT54 SMALL SIGNAL SCHOTTKY DIODES SOT-23 Active Datasheet
BAT54A SMALL SIGNAL SCHOTTKY DIODES SOT-23 Active Datasheet
BAT54C SMALL SIGNAL SCHOTTKY DIODES SOT-23 Active Datasheet
BAT54S SMALL SIGNAL SCHOTTKY DIODES SOT-23 Active Datasheet
