Small Signal Schottky Diodes | Status : Active

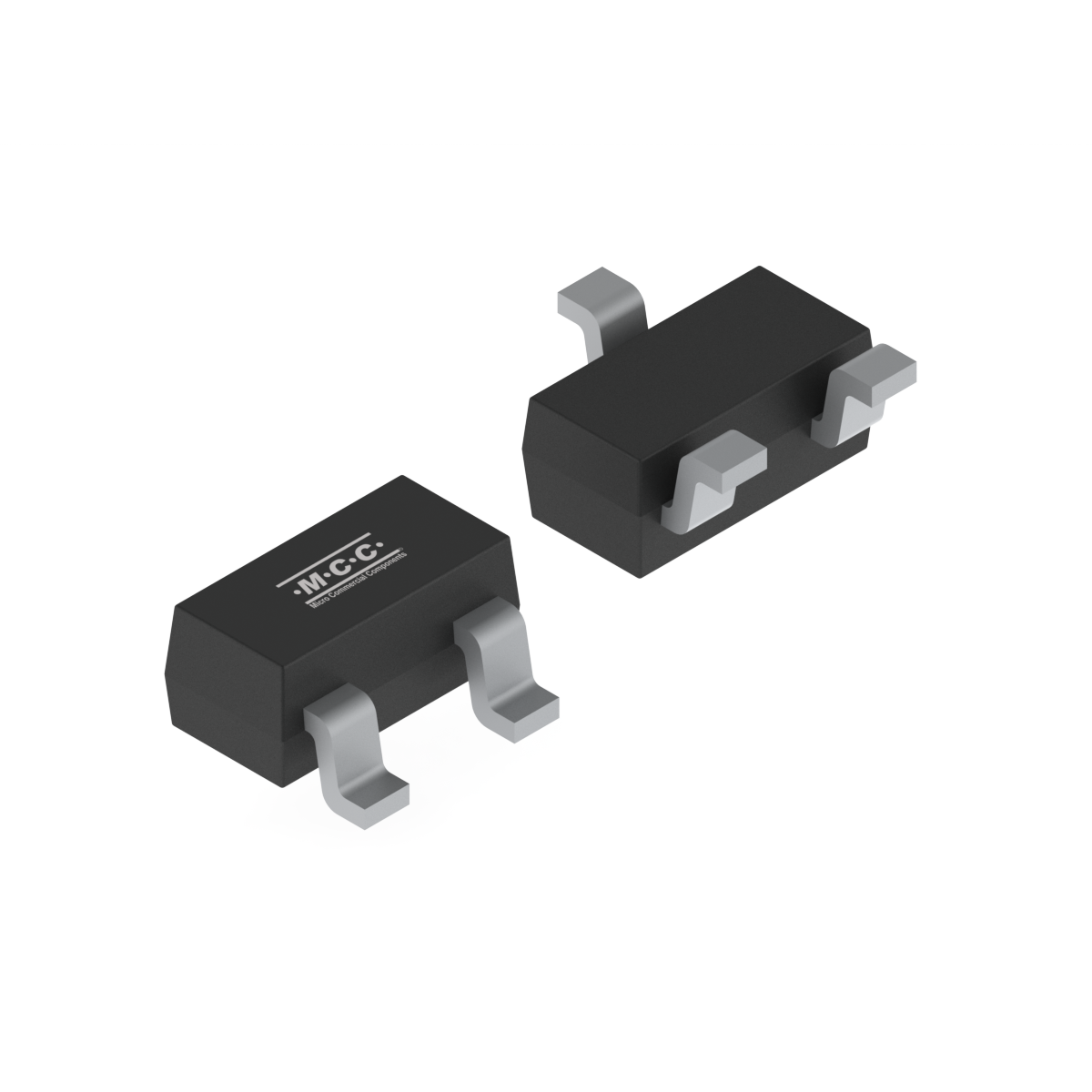

BAT54CT

Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions Configuration IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA) [max] @
VR		 VR (V) IF(A) Tj [max] (°C)
BAT54CT Dual Common Cathode 0.2 30 1 2 25 0.1 125
Part Number BAT54CT Number of Functions Dual Configuration Common Cathode IF(AV)(A)  0.2 VRWM (V)  30 VF
(V) [max]@IF(A)  1 		IR (uA) [max] @
VR  2 		VR (V)  25 IF(A)  0.1 Tj [max] (°C)  125

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
BAT54CT SOT-523 SOT-523 0.0029 L3 Tape : 3K/Reel, 120K/Ctn;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report Halogen Free MTBF FIT
Tin Whisker Test Report Halogen Free 27479.27 4.2

ECN/PCN

ECN/PCN No# Title PDF Issued Date
071521-1 Additional new lead frame for SOT-523 Package PDF 07/15/2021
080111 Remove the plastic ziploc bag of the reel for SOT&SOD Packages PCN#080111 PDF 08/15/2011
070103 Pb(Lead) Free Plating Conversion PDF 07/01/2003
