Small Signal Schottky Diodes | Status : Active

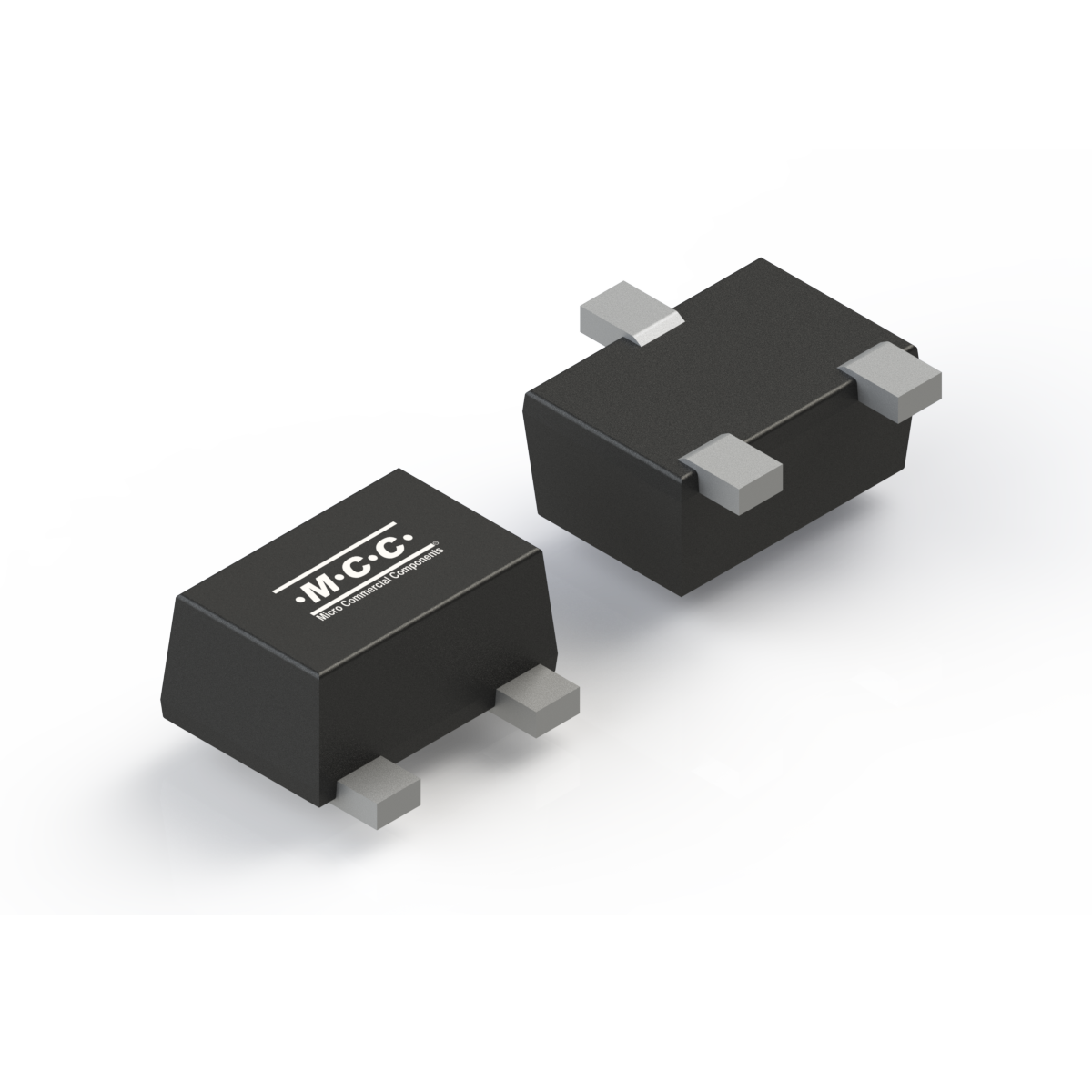

BAT54CM

Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions Configuration IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA) [max] @
VR		 VR (V) IF(A) Tj [max] (°C)
BAT54CM Dual Common Cathode 0.2 30 1 2 25 0.1 150
Part Number BAT54CM Number of Functions Dual Configuration Common Cathode IF(AV)(A)  0.2 VRWM (V)  30 VF
(V) [max]@IF(A)  1 		IR (uA) [max] @
VR  2 		VR (V)  25 IF(A)  0.1 Tj [max] (°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
BAT54CM SOT-723 SOT-723 0.0010 KL3 Tape&Reel: 8Kpcs/Reel,;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report Halogen Free MTBF FIT
Tin Whisker Test Report Halogen Free 22483.04 5.1
