Small Signal Schottky Diodes | Status : Active

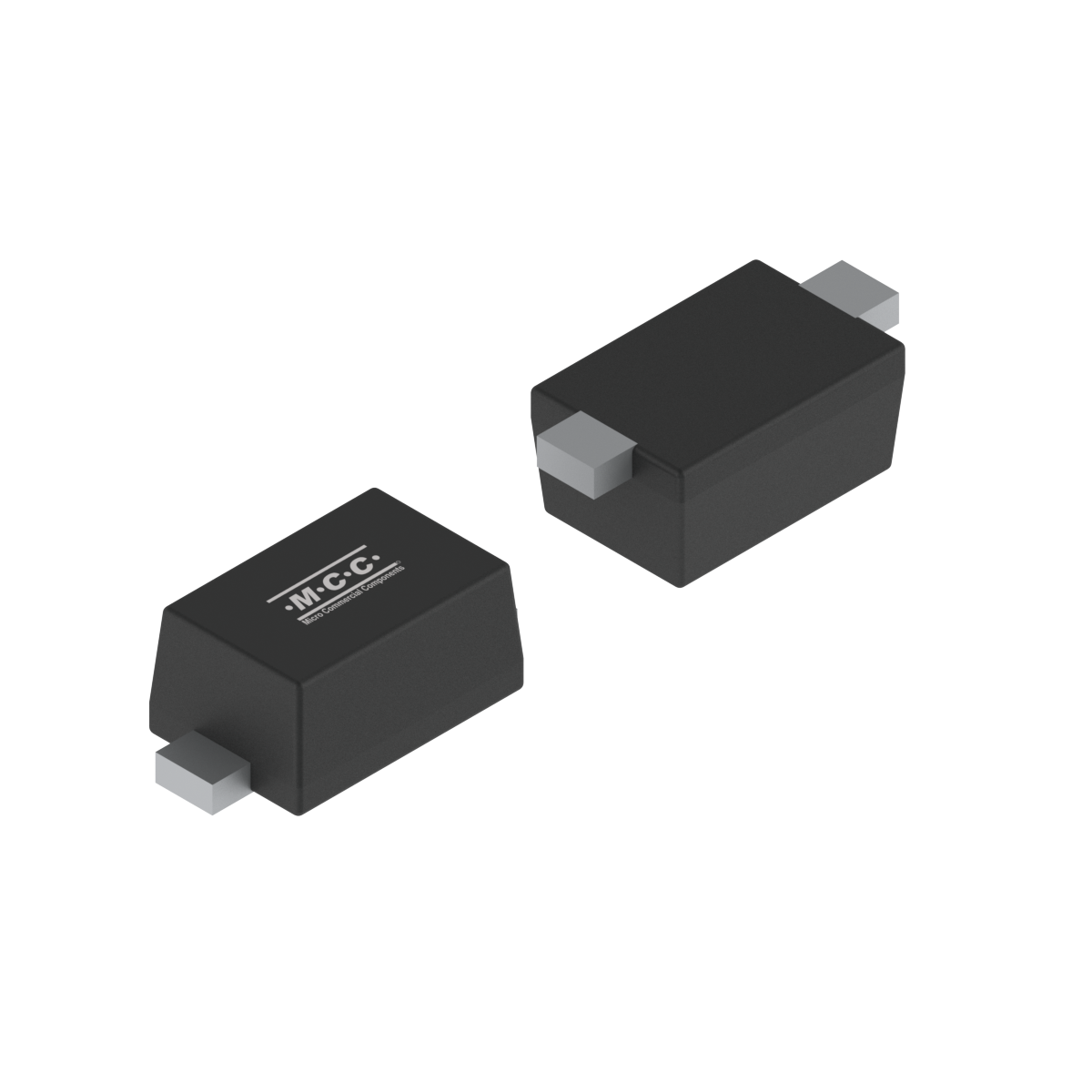

BAT46X

Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA) [max] @
VR		 VR (V) IF(A) Tj [max] (°C)
BAT46X Single 0.2 100 1 0.1 50 0.2 125
Part Number BAT46X Number of Functions Single IF(AV)(A)  0.2 VRWM (V)  100 VF
(V) [max]@IF(A)  1 		IR (uA) [max] @
VR  0.1 		VR (V)  50 IF(A)  0.2 Tj [max] (°C)  125

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
BAT46X SOD-523 SOD-523 0.0013 41. Tape&Reel: 8Kpcs/Reel;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
MSL Halogen Free MTBF FIT
1 Halogen Free 0.00 0.0
